TP-Link T1600G-52PS User Manual

Configuring Layer 2 Multicast Configuration Examples
Configuration Guide
345
5
Configuration Examples
5.1 Example for Configuring Basic IGMP Snooping
5.1.1 Network Requirements
Host B, Host C and Host D are in the same VLAN of the switch. All of them want to receive
multicast data sent to multicast group 225.1.1.1.
As shown in the following topology, Host B, Host C and Host D are connected to port
1/0/1, port 1/0/2 and port 1/0/3 respectively. Port 1/0/4 is the router port connected to the
multicast querier.

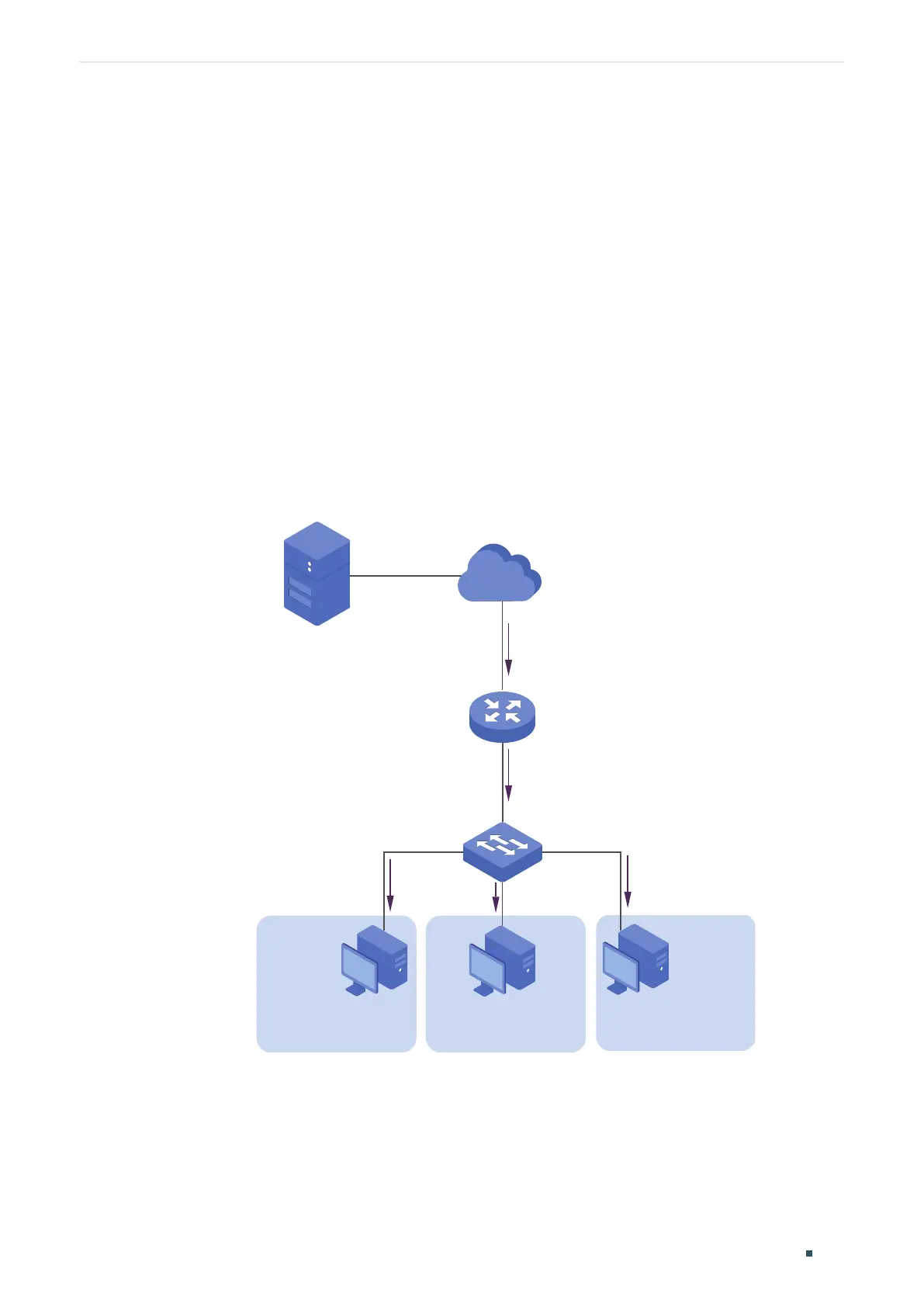

Figure 5-1 Network Topology for Basic IGMP Snooping
Internet
Host B
Receiver
Host C
Receiver
Host D
Receiver
VLAN 10 VLAN 10
VLAN 10
Querier
Source
Gi1/0/4
Gi1/0/2
Gi1/0/3
Gi1/0/1
5.1.2 Configuration Scheme

Enable IGMP Snooping globally and on the port.

Add the three member ports and the router port to a VLAN and configure their PVIDs.
