Configuring Voice VLAN Configuration Example

Configuration Guide

479

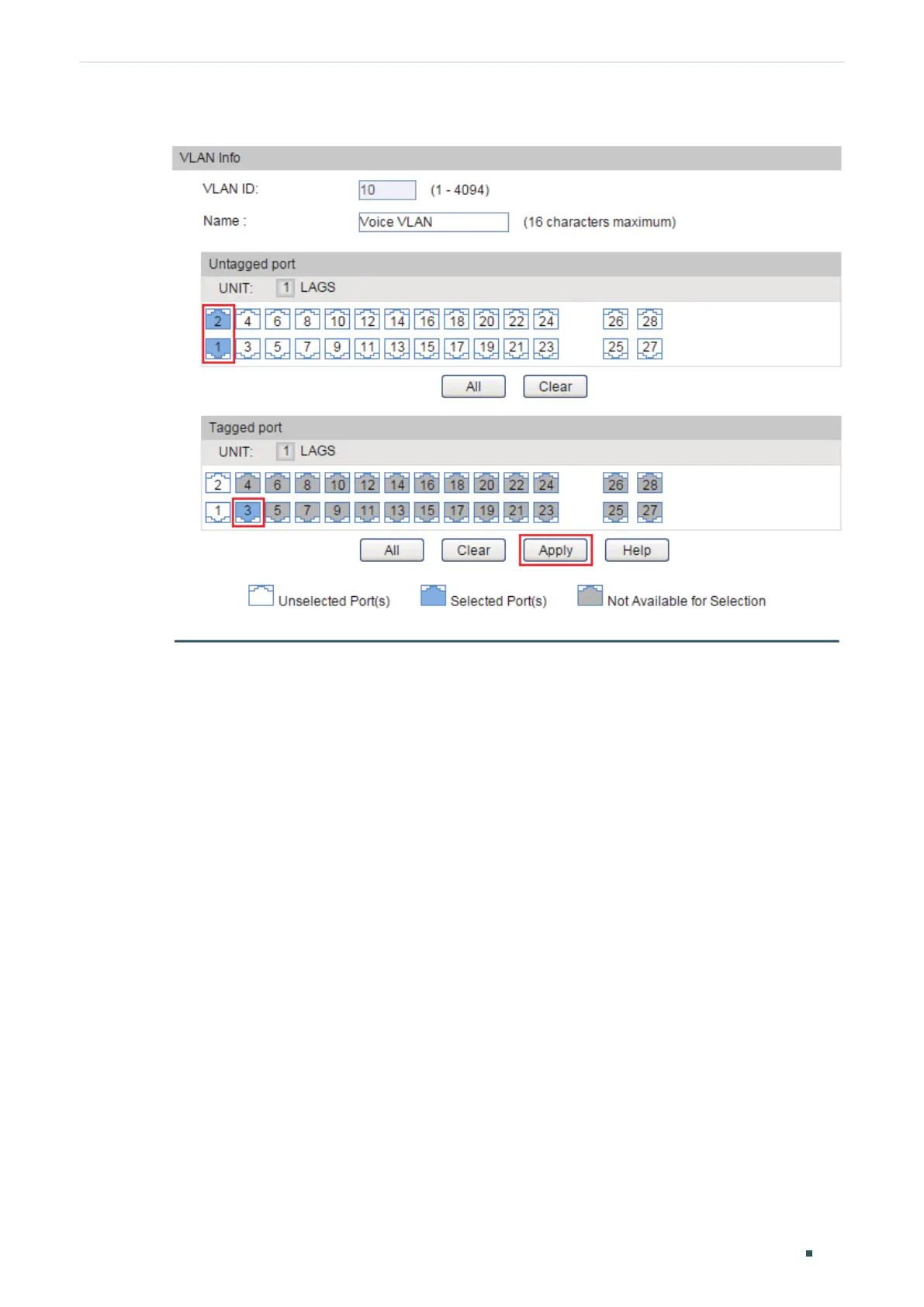

Figure 3-14 Adding Ports to the Voice VLAN

5) Click Save Config to save the settings.



Configurations for Switch C

1) Choose the menu VLAN > 802.1Q VLAN > VLAN Config and click Create to load the

following page. Create VLAN 10 and add ports 1/0/1-3 as tagged ports to the VLAN.

Click Apply.
