Configuring ACL Configuration Example for ACL
Configuration Guide
535

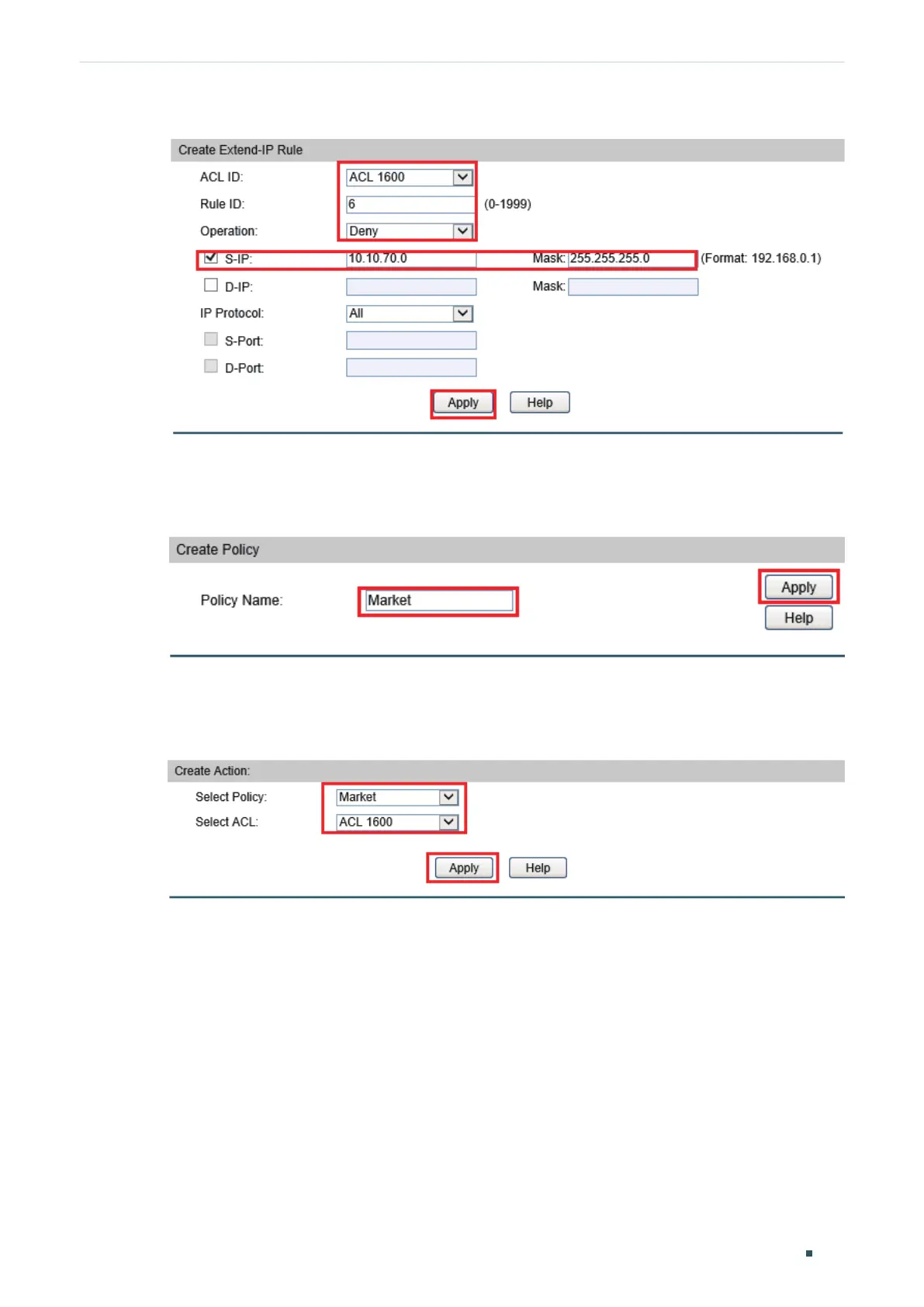

Figure 3-8 Configuring Rule 6
6) Choose the menu ACL > Policy Config > Policy Createto load the the following page.
Then create Policy Market.
Figure 3-9 Creating the Policy
7) Choose the menu ACL > Policy Config > Action Create to load the the following page.
Then apply ACL 1600 to Policy Market.
Figure 3-10 Applying the ACL to the Policy
8) Choose the menu ACL > Policy Binding > Port Binding to load the the following page.
Bind Policy Market to port 1/0/1 to make it effective.
