Configuring Layer 2 Multicast Configuration Examples

Configuration Guide

353

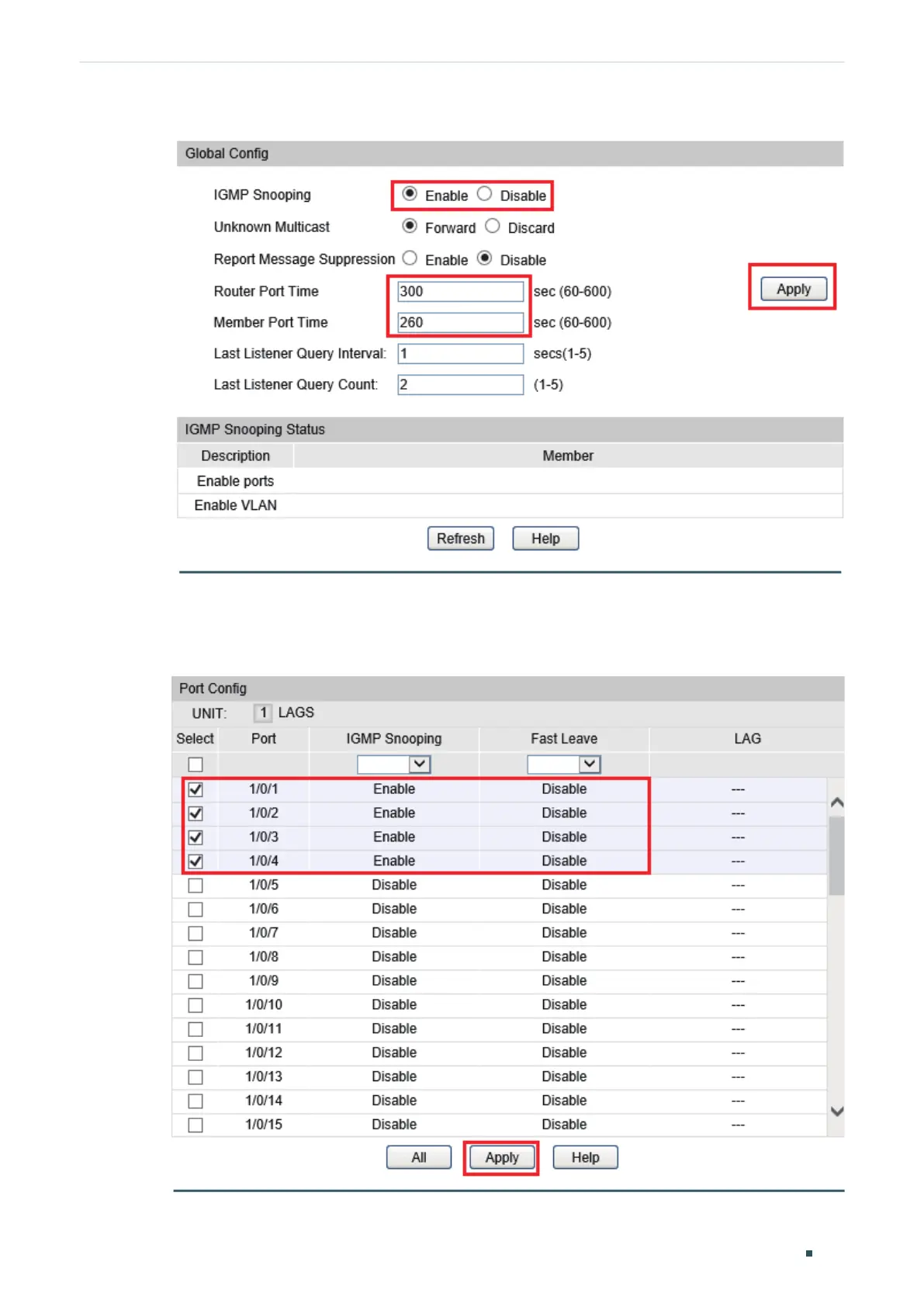

Figure 5-8 Configure IGMP Snooping Globally

2) Choose the menu Multicast > IGMP Snooping > Snooping Config to load the following

page. Enable IGMP Snooping on port 1/0/1-4.

Figure 5-9 Configure IGMP Snooping Globally
