Configuration Guide 354
Configuring Layer 2 Multicast Configuration Examples

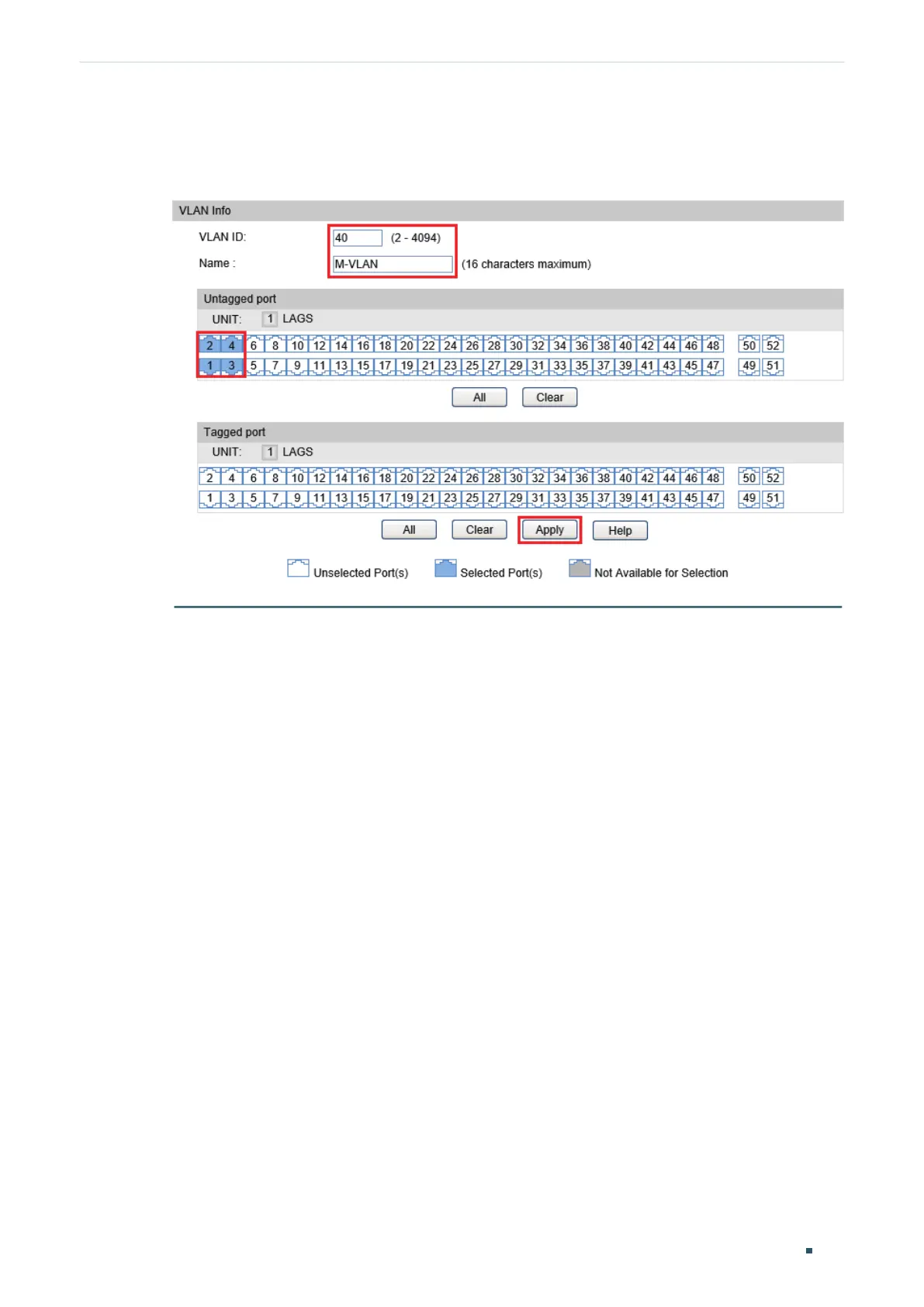

3) Choose the menu VLAN > 802.1Q VLAN > VLAN Config to load the following page.
Create VLAN 40 and add Untagged port 1/0/1-4 to VLAN 40.
Figure 5-10 Configure Link Type
4) Choose the menu VLAN > 802.1Q VLAN > Port Config to load the following page.
Configure the PVID of port 1/0/1 as 10, port 1/0/2 as 20, port 1/0/3 as 30 and port 1/0/4
as 40.
