Configuration Guide 192
Configuring Protocol VLAN Configuration Example
2) Click Create to load the following page. Create VLAN 20, and add port 1/0/1 as tagged
port and port 1/0/3 as untagged port to VLAN 20. Click Apply.

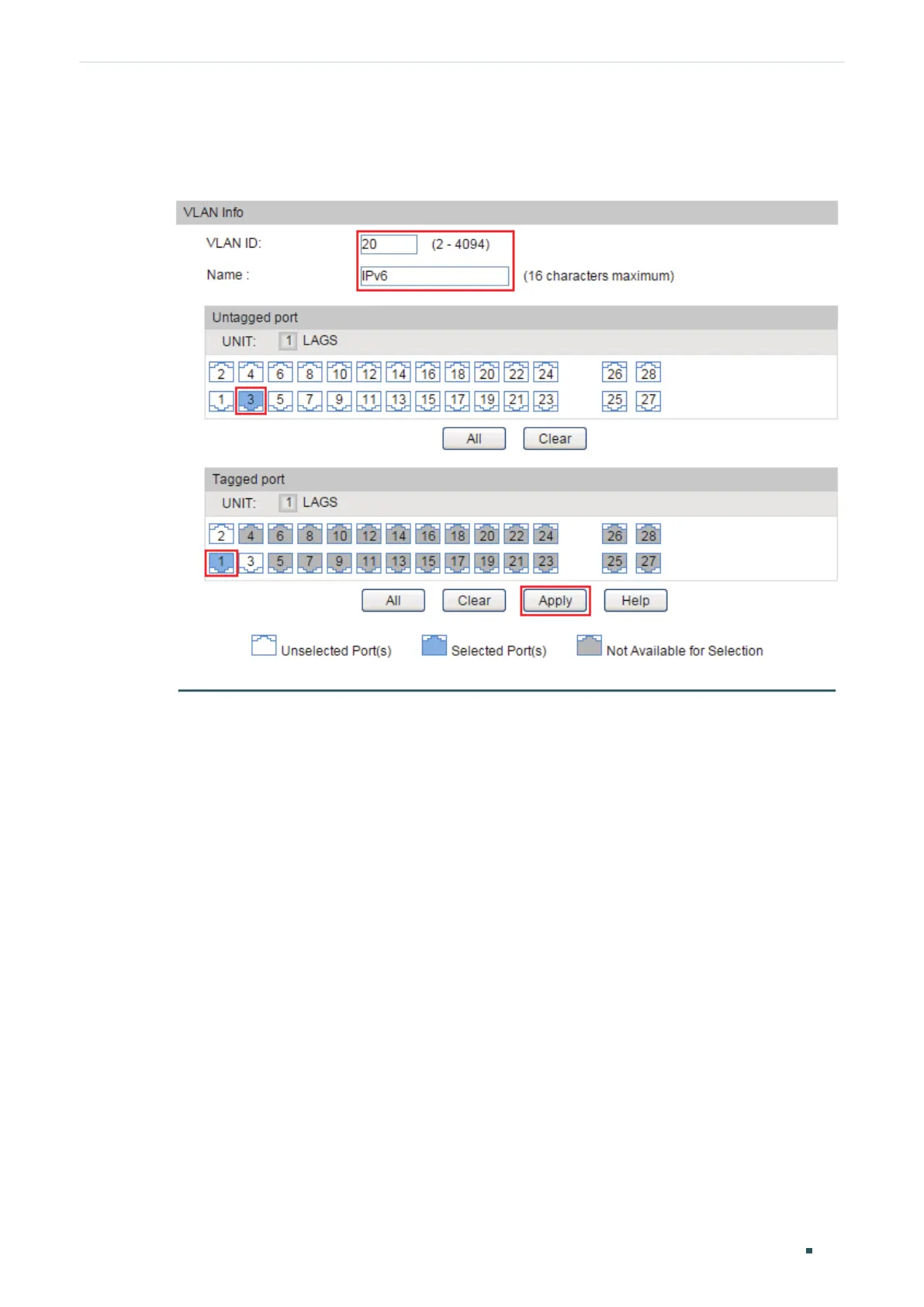

Figure 3-5 Create VLAN 20
3) Choose the menu VLAN > Protocol VLAN > Protocol Template to load the following
page. Enter IPv6 in the protocol name, select the Ethernet II frame type, enter 86DD in
the Ether Type field, and click Create to create the IPv6 protocol template.
Tips:
The IPv4 protocol template is already provided by the switch. You only need to
create the IPv6 protocol template.
