Configuration Guide
248
Configuring Spanning Tree
Configuration Example for MSTP

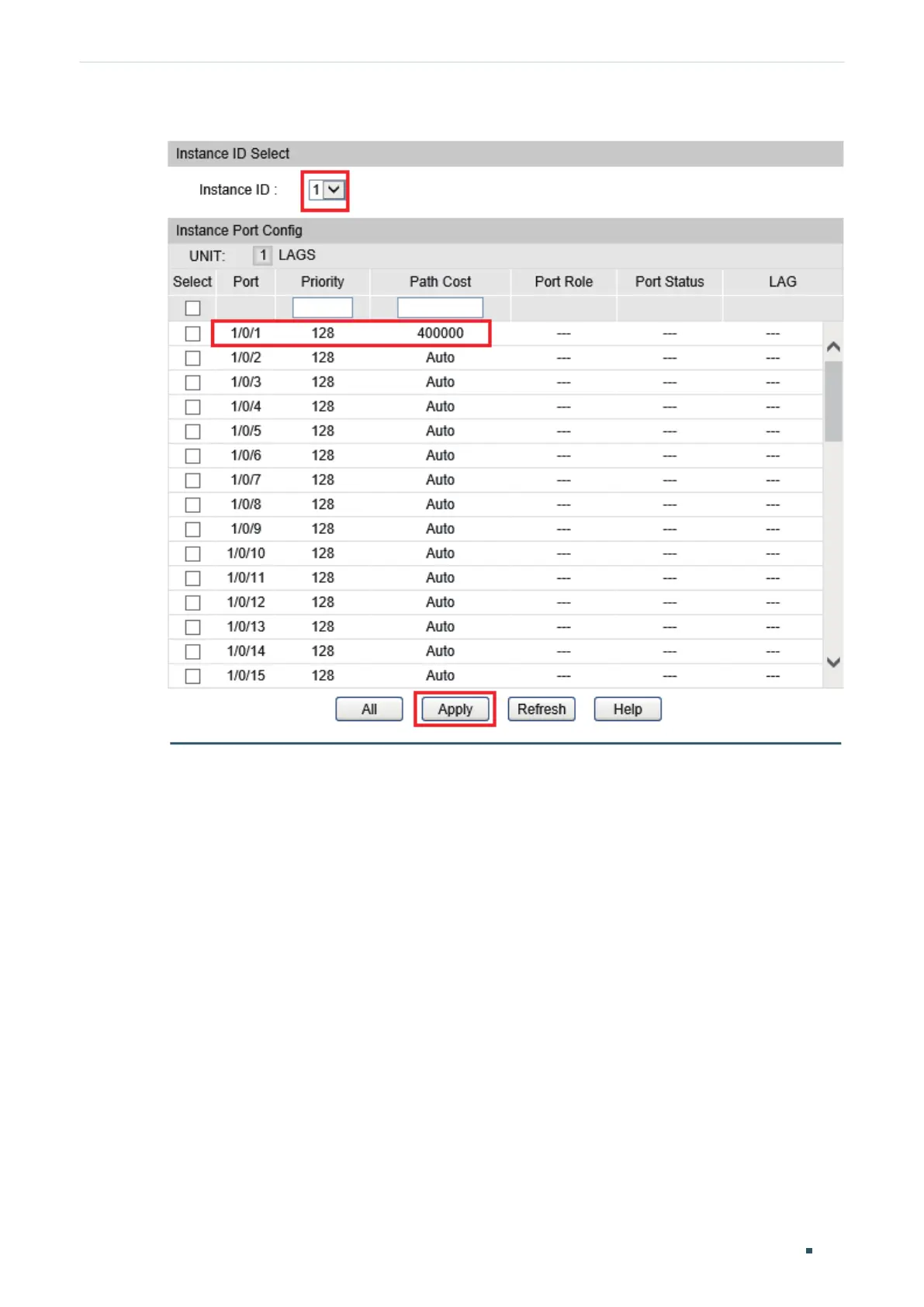

Figur
e 5-6 
Configure the P
ath Cost of P
or
t 1/0/1 In Instance 1
5)
Choose the menu
Spanning Tree > STP Config > STP Config
to load the following
page. Enable MSTP function globally, here we leave the values of the other global
parameters as default settings.
