Accessing the Switch Web Interface Access
Configuration Guide
9

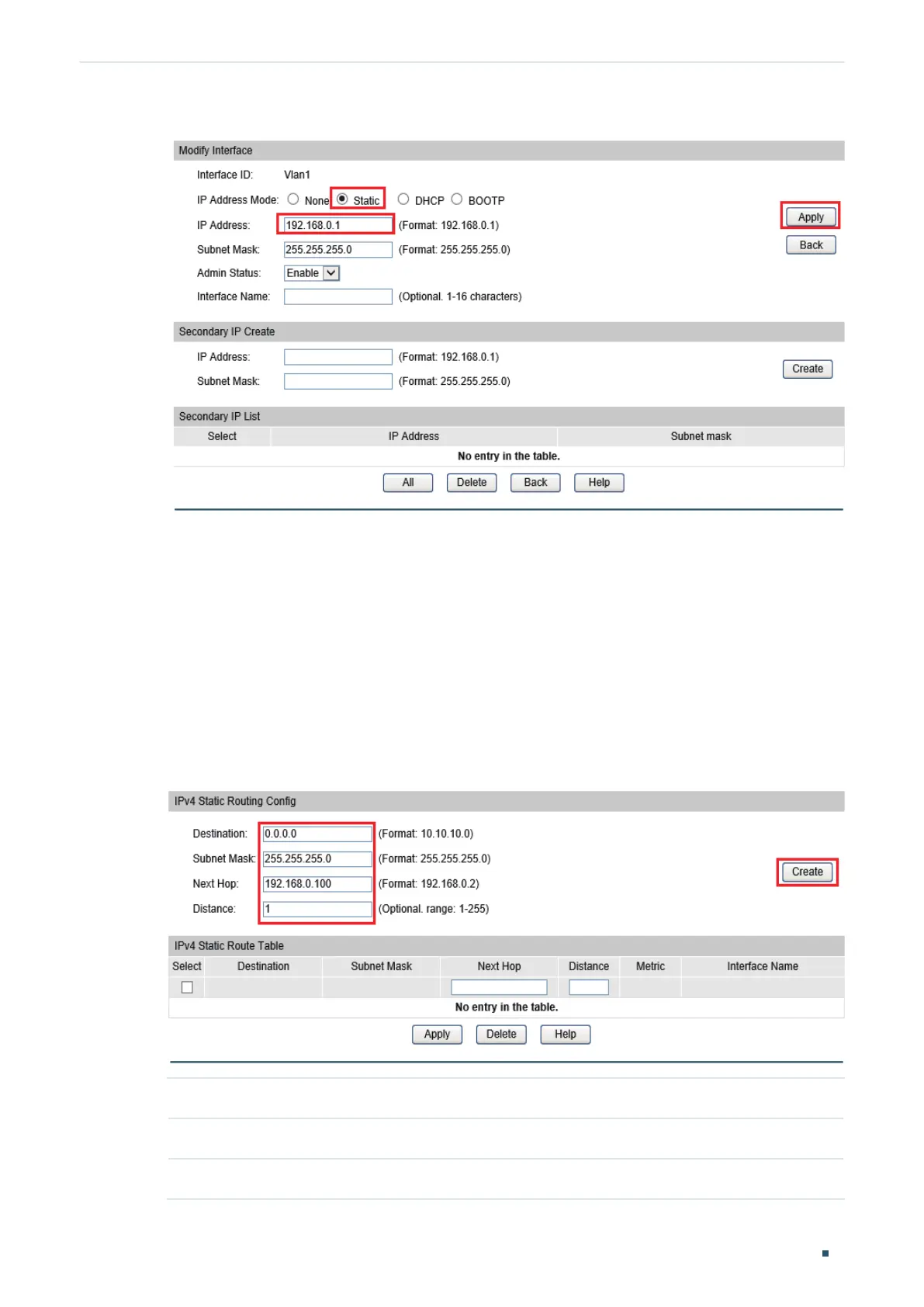

Figure 2-8 Specify the IP address
3) Enter the new IP address in the web browser to access the switch.
4) Click Save Config to save the settings.

Configure the Default Gateway
The following example shows how to configure the switch’s gateway. By default, the switch
has no default gateway.
1) Go to page
Routing > Static Routing > IPv4 Static Routing Config
. Configure the parameters
related to the switch’s gateway and click Create.
Figure 2-9 Configure the default gateway
Destination Specify the destination as 0.0.0.0.
Subnet Mask Specify the subnet mask as 255.255.255.0.
Next Hop Configure your desired default gateway as the next hop’s IP address.
