Configuring Layer 2 Multicast Configuration Examples

Configuration Guide

347

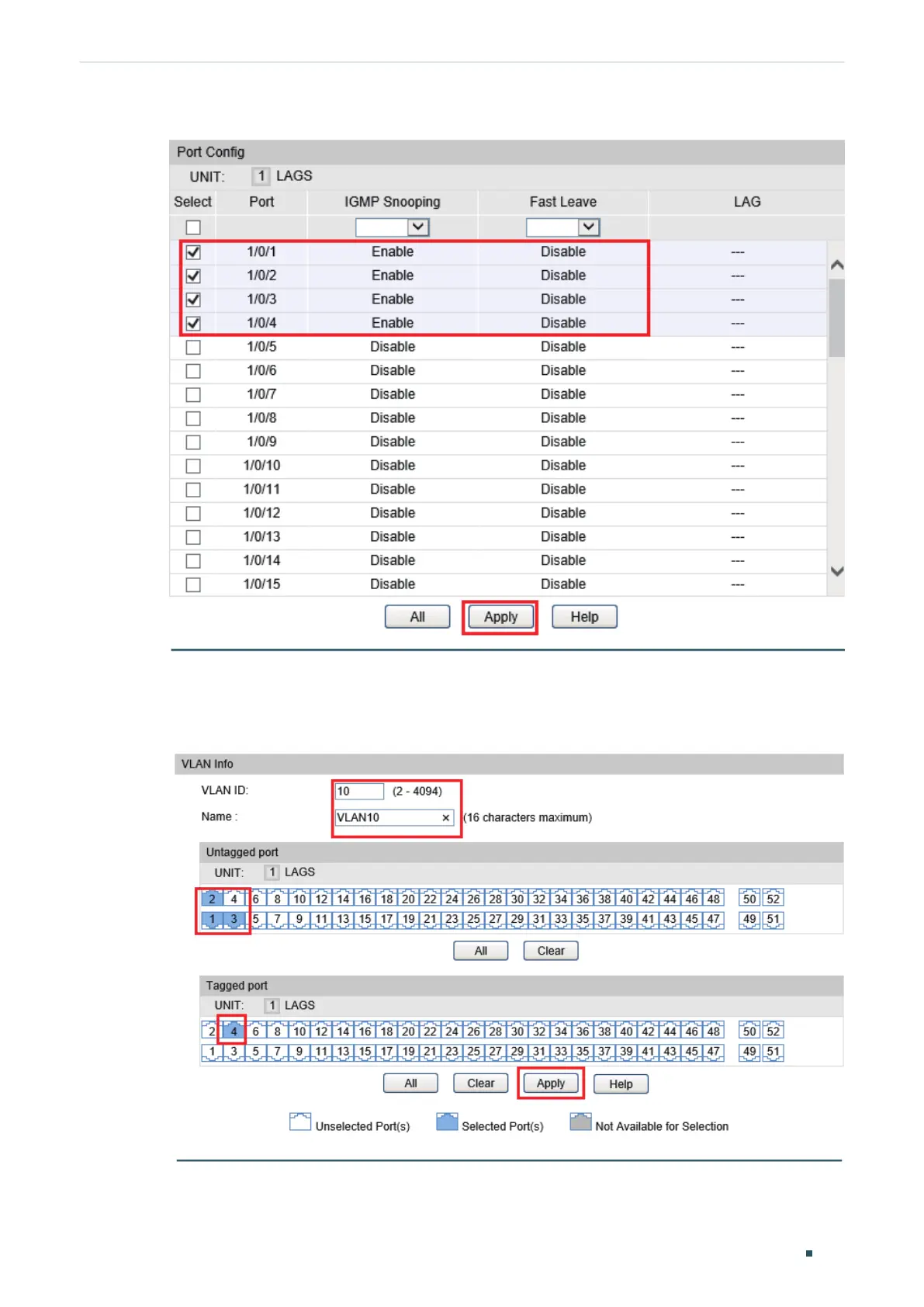

Figure 5-3 Enable IGMP Snooping on the Ports

3) Choose the menu VLAN > 802.1Q VLAN > VLAN Config to load the following page.

Create VLAN 10 and add Untagged port 1/0/1-3 and Tagged port 1/0/4 to VLAN 10.

Figure 5-4 Configure Link Type

Default Chapter1
