TP-Link T1600G-52PS User Manual

Configuration Guide 612
Configuring Network Security Configuration Examples

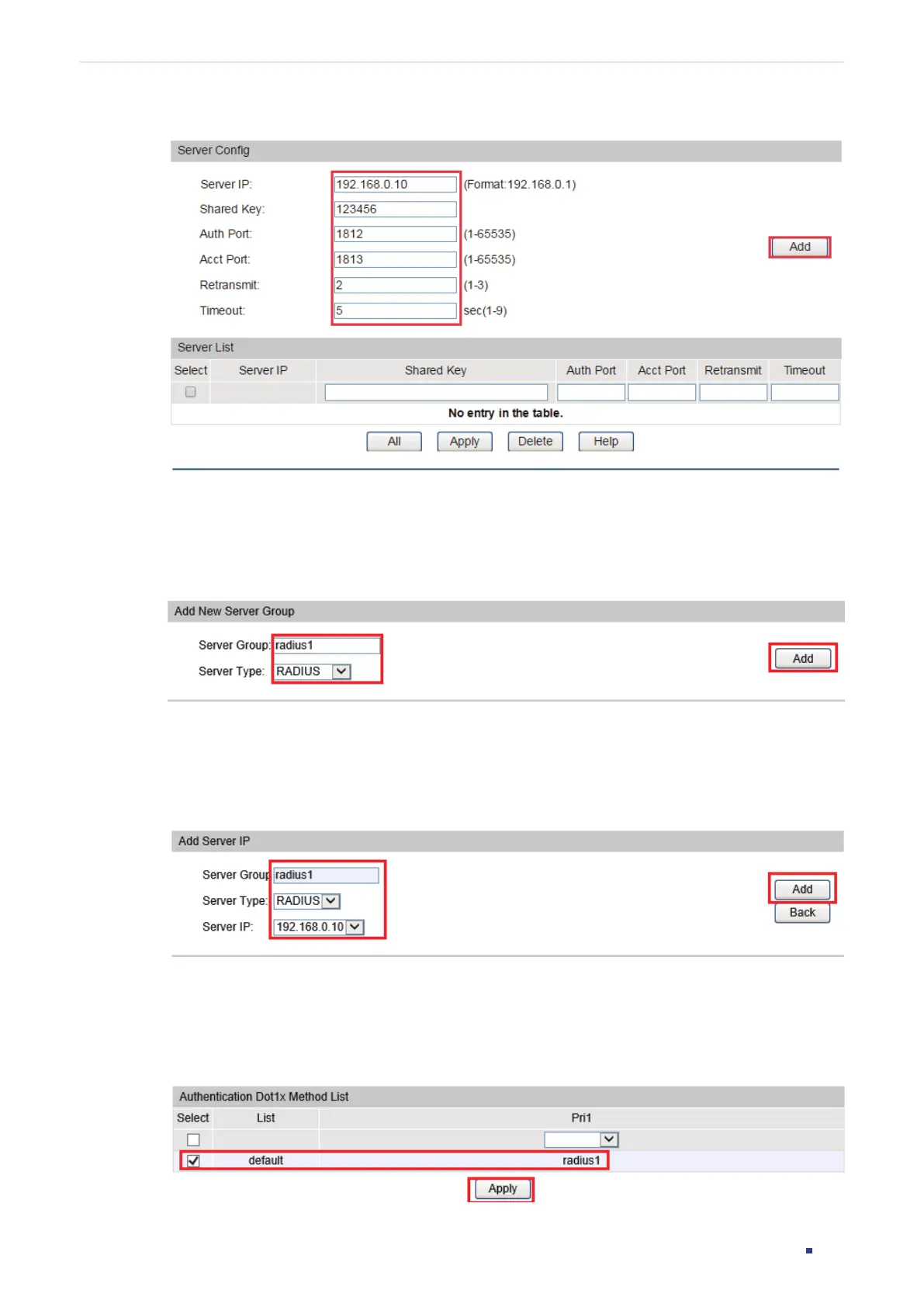

Figure 8-10 RADIUS Config
3) Choose the menu Network Security > AAA > Server Group to load the following page.
In the Add New Server Group section, specify the group name as radius1 and the
server type as RADIUS. Click Add to create the server group.
Figure 8-11 Create Server Group
4) On the same page, select the newly created server group and click edit to load the
following page. Select 192.168.0.10 from the drop-down list, and click Add to add the
server to the group.
Figure 8-12 Add Servers to Server Group
5) Choose the menu Network Security > AAA > Dot1x List to load the following page.
In the Authentication Dot1x Method List section, select radius1 as the radius server
group for authentication, and click Apply.
Figure 8-13 Configure Authentication RADIUS Server
