Configuration Guide 662
Configuring LLDP Configuration Example

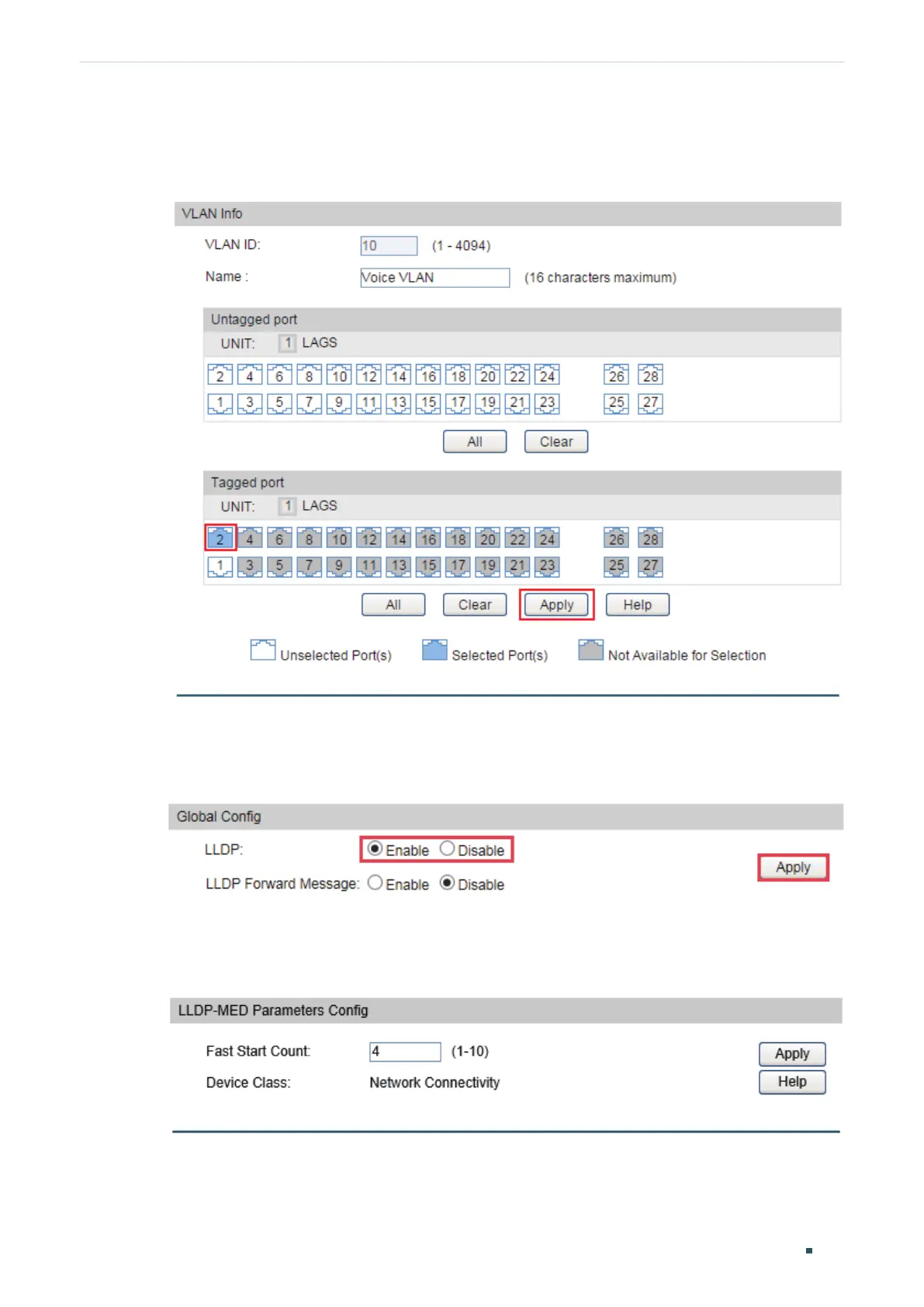

Choose the menu VLAN > 802.1Q VLAN > VLAN Config to load the following page. Add
port 1/0/2 to the Voice VLAN.
Figure 6-9 Adding Port 1/0/2 to the Voice VLAN
3) Choose the LLDP > Basic Config > Global Config to load the following page and enable
LLDP globally.
Figure 6-10 LLDP Global Config
4) Choose the LLDP > LLDP-MED > Global Config to load the following page and
configure the fast start count. The default is 4.
Figure 6-11 LLDP-MED Global Config
5) Choose th menu LLDP > LLDP-MED > Policy Config to load the following page. Select
port 1/0/1 and enable LLDP-MED.
