Xilinx Zynq-7000 User Manual

Zynq-7000 AP SoC and 7 Series FPGAs MIS v4.1 652
UG586 November 30, 2016
www.xilinx.com
Chapter 5: Multicontroller Design
11. Click IP Catalog on the Project Manager window to open the IP catalog window. The
Vivado IP catalog window appears on the right side panel (see Figure 5-12).
12. The MIG tool exists in the Memories & Storage Elements > Memory Interface
Generators section of the IP catalog window (Figure 5-12) or you can search from the
Search tool bar for the string “MIG.”
X-Ref Target - Figure 5-12

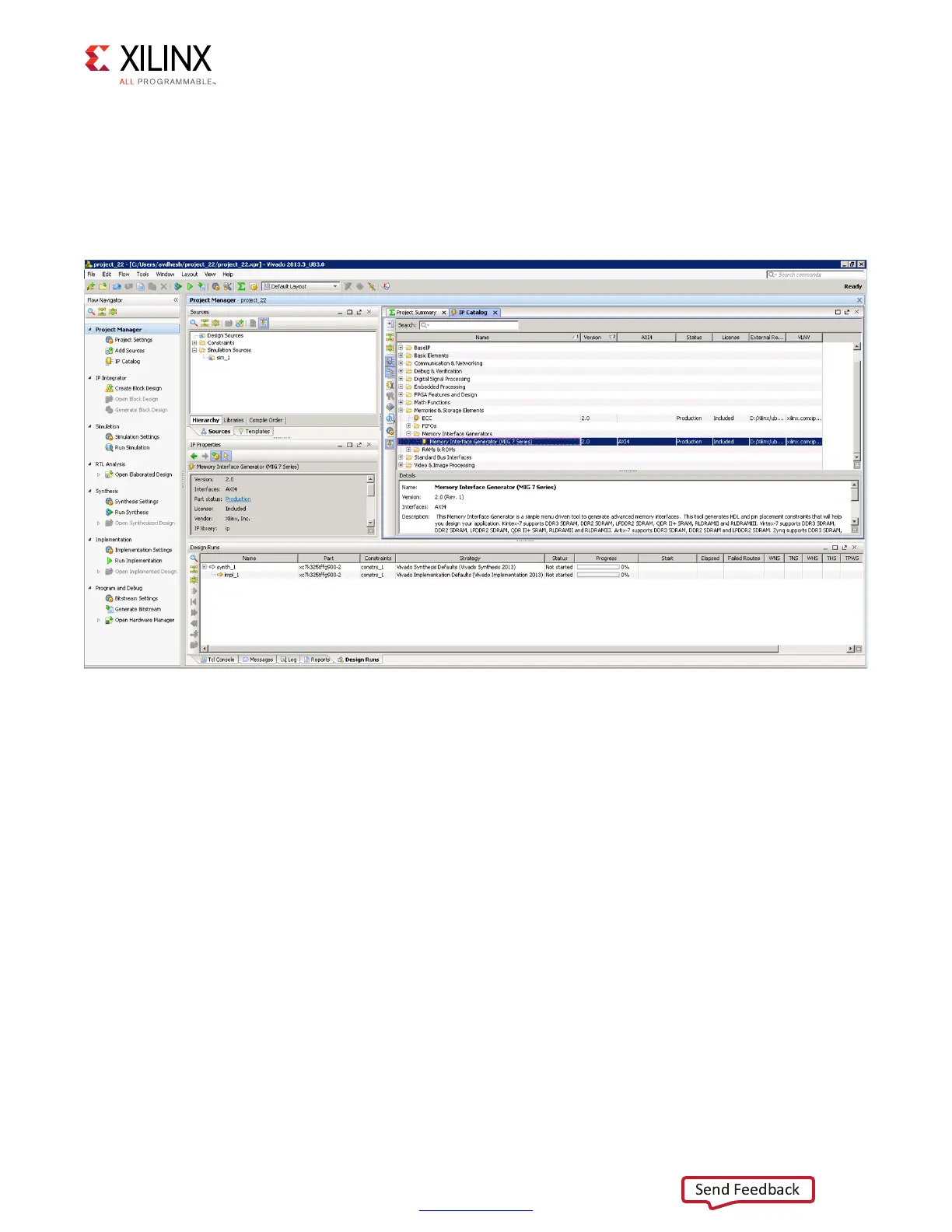

Figure 5-12: IP Catalog Window – Memory Interface Generator
Send Feedback

Xilinx Zynq-7000 Specifications

General

Series	Zynq-7000
Number of Cores	Dual-core
Processor Speed	Up to 1 GHz
Device Type	SoC
Logic Cells	Up to 350K
DSP Slices	Up to 900
External Memory Interfaces	DDR3, DDR2, LPDDR2
I/O Standards	LVCMOS, HSTL, SSTL
Operating Temperature	-40°C to +100°C (Industrial), 0°C to +85°C (Commercial)
Package Options	Various BGA packages
I/O Voltage	3.3V
