Chapter 4: LPDDR2 SDRAM Memory Interface Solution
Simulation Flow Using Vivado Simulator
1. In the Open IP Example Design Vivado project, under Flow Navigator, select
Simulation Settings (Figure 4-39).
2. Under the Simulation tab as shown in Figure 4-39, set the xsim.simulate.runtime
as 1 ms (there are simulation RTL directives which stop the simulation after a certain
period of time, which is less than 1 ms). Apply the settings and select OK.
X-Ref Target - Figure 4-39

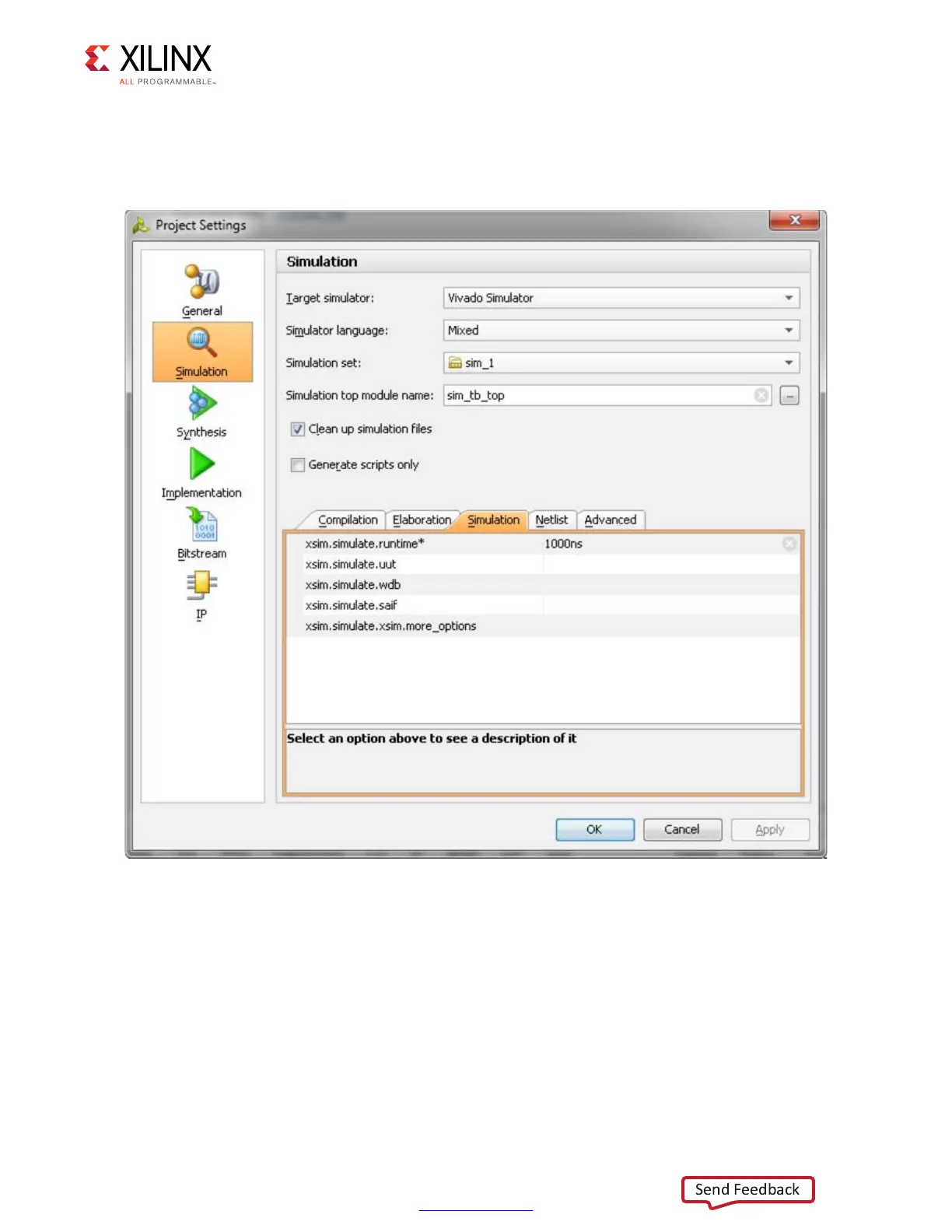

Figure 4-39: Simulation with Vivado Simulator
