Chapter 3: RLDRAM II and RLDRAM 3 Memory Interface Solutions
3. In the Flow Navigator window, select Run Simulation and select Run Behavioral
Simulation as shown in Figure 3-65.
Note:
RLDRAM 3 memory model has System Verilog constructs, which are not supported by Vivado
Simulator.
Simulation Flow Using Questa Advanced Simulator
1. In the Open IP Example Design Vivado project, under Flow Navigator select
Simulation Settings.
2. Select Target simulator as Questa Advanced Simulator/ModelSim.
a. Browse to the Compiled libraries location and set the path on Compiled libraries
location option.
b. Under the Simulation tab, set the modelsim.simulate.runtime to 1 ms (there
are simulation RTL directives which stop the simulation after certain period of time,
which is less than 1 ms), set modelsim.simulate.vsim.more_options to
-novopt as shown in Figure 3-64.
c. Under Compilation tab, set modelsim.compile.vlog.more_options to -sv
(only for RLDRAM 3 designs).
3. Apply the settings and select OK.

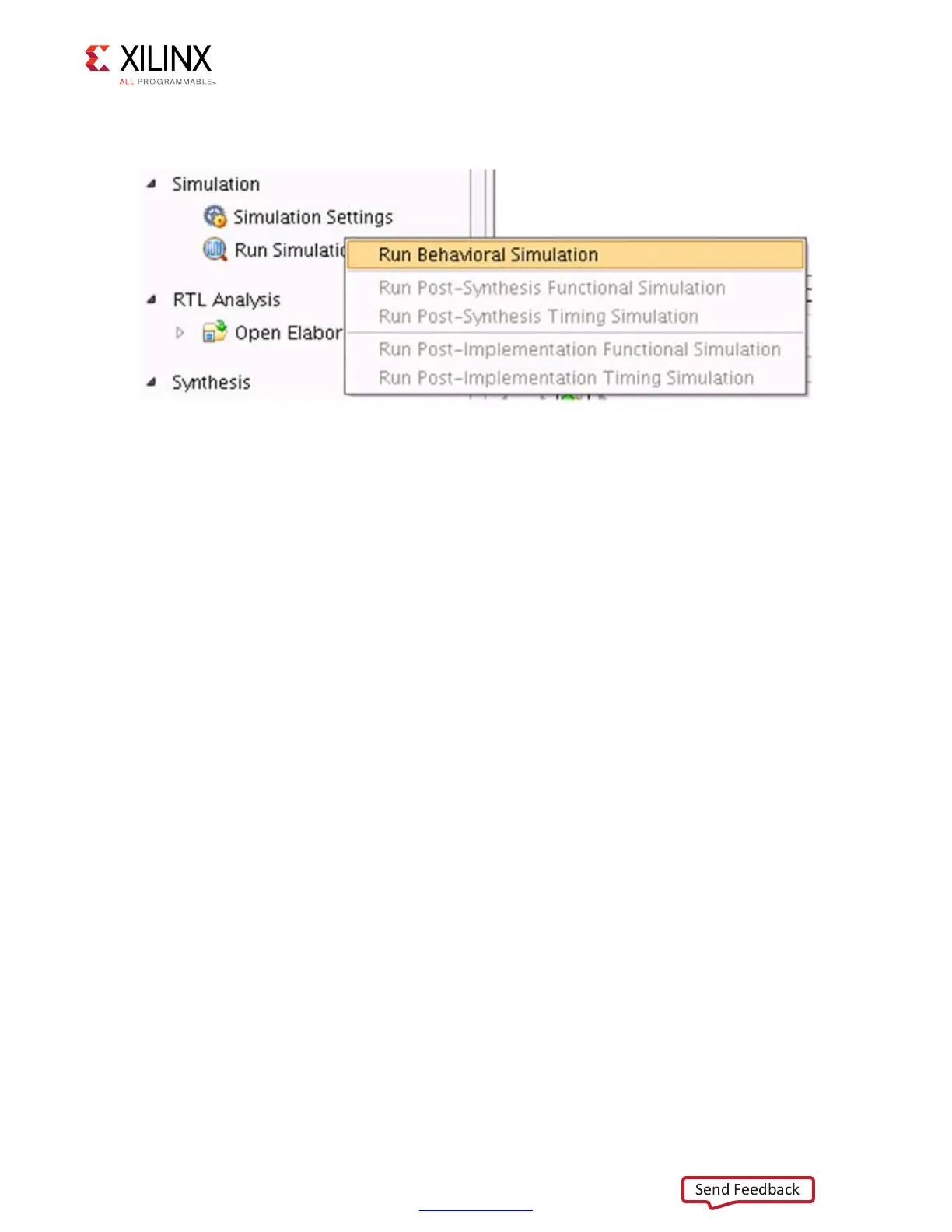

X-Ref Target - Figure 3-65
Figure 3-65: Run Behavioral Simulation
Send Feedback
