Chapter 4: LPDDR2 SDRAM Memory Interface Solution
The Create Custom Part page includes all the specifications of the memory component
selected in the Select Base Part pull-down menu.
3. Enter the appropriate memory part name in the text box.
4. Select the suitable base part from the Select Base Part list.
5. Edit the value column as needed.
6. Select the suitable values from the Row, Column, and Bank options as per the
requirements.
7. After editing the required fields, click Save. The new part is saved with the selected
name. This new part is added in the Memory Parts list on the Controller Options page.
It is also saved into the database for reuse and to produce the design.
8. Click Next to display the Memory Options page.
Setting LPDDR2 SDRAM Memory Parameter Option
This feature allows the selection of various memory mode register values, as supported by
the controller specification (Figure 4-20).
The mode register value is loaded into the load mode register during initialization.

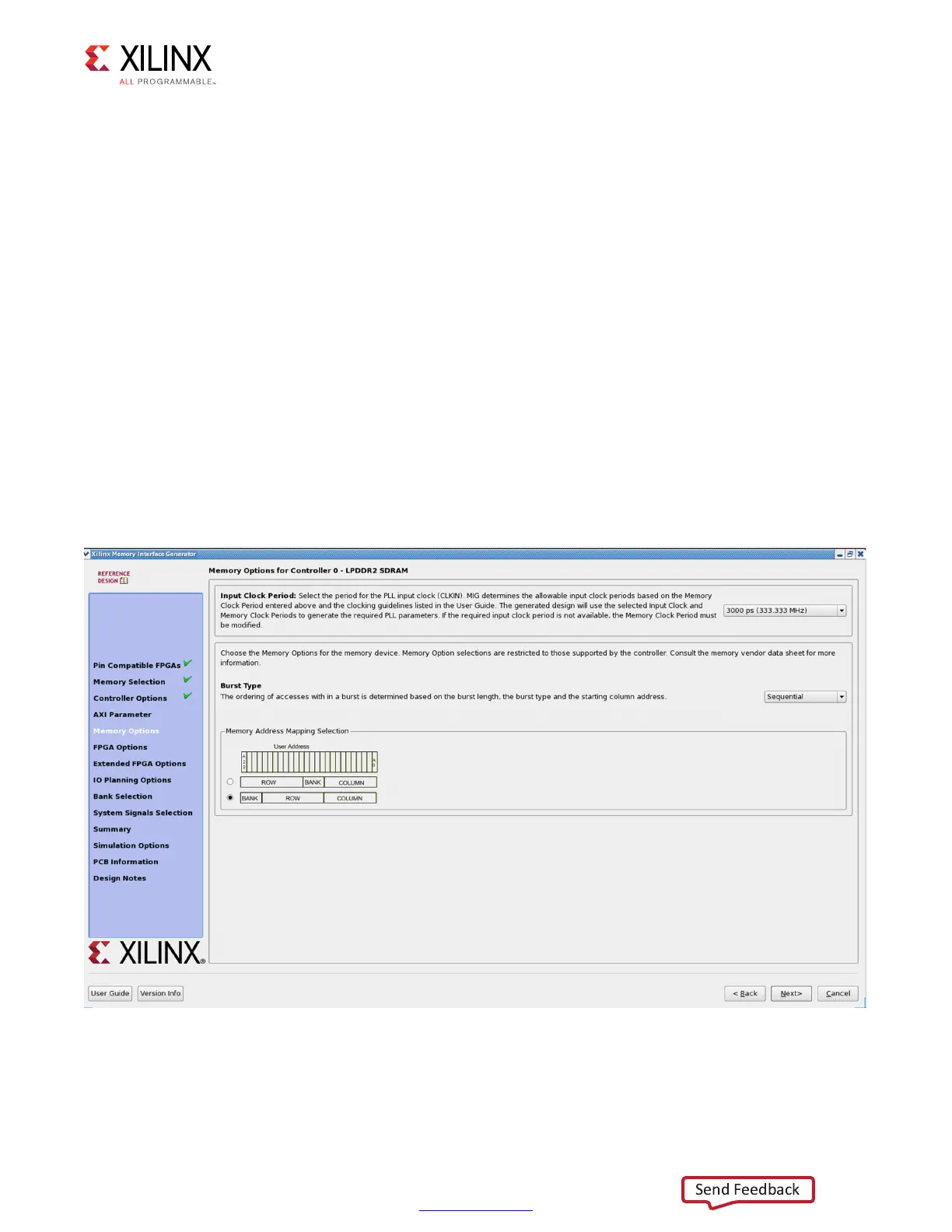

X-Ref Target - Figure 4-20
Figure 4-20: Setting Memory Mode Options
