Chapter 4: LPDDR2 SDRAM Memory Interface Solution
3. In the Flow Navigator window, select Run Simulation and select Run Behavioral
Simulation as shown in Figure 4-40.
Simulation Flow Using Questa Advanced Simulator
1. In the Open IP Example Design Vivado project, under Flow Navigator select
Simulation Settings.
2. Select Target simulator as Questa Advanced Simulator/ModelSim.
a. Browse to the Compiled libraries location and set the path on Compiled libraries
location option.
b. Under the Simulation tab, set the modelsim.simulate.runtime to 1 ms (there
are simulation RTL directives which stop the simulation after certain period of time,
which is less than 1 ms), set modelsim.simulate.vsim.more_options to
-novopt as shown in Figure 4-39.
3. Apply the settings and select OK.

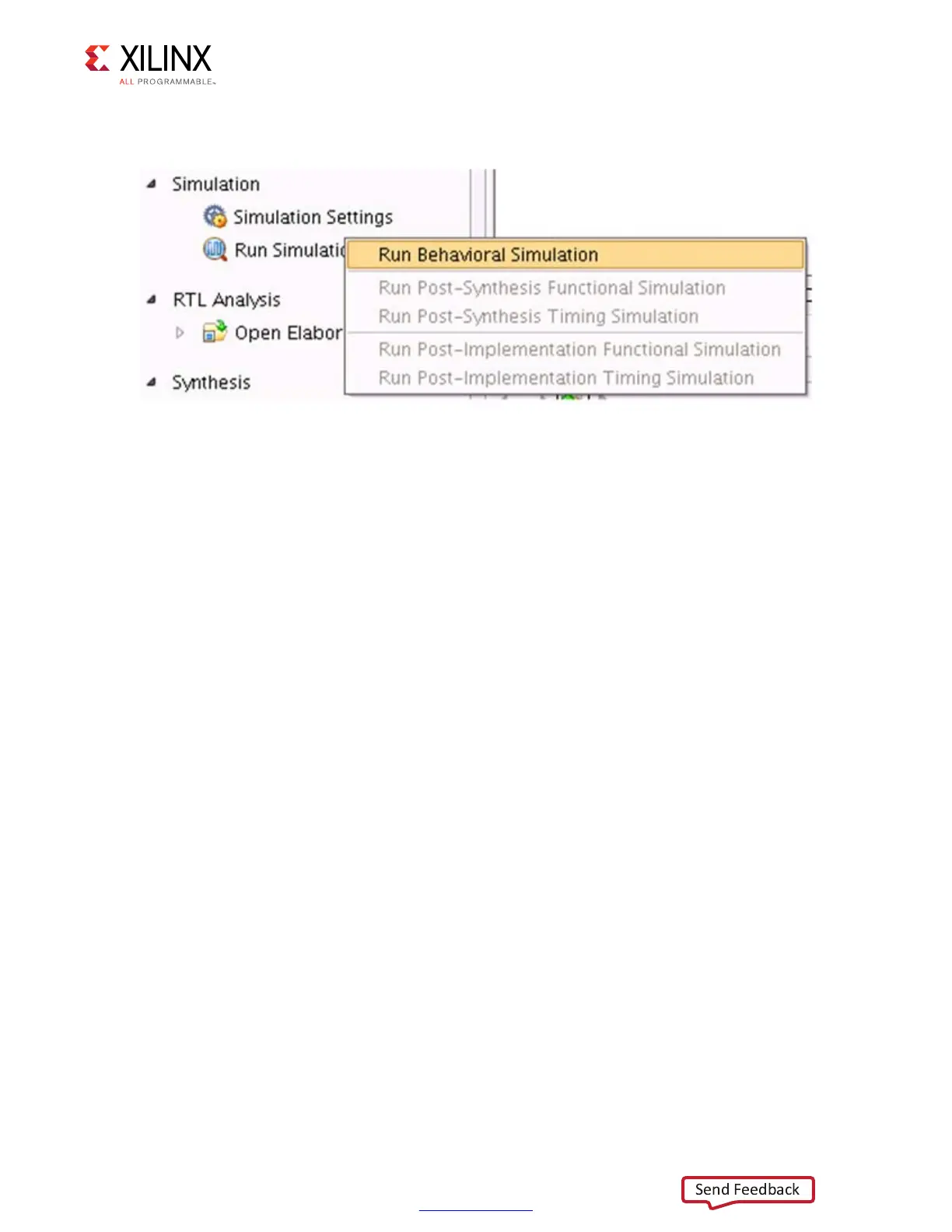

X-Ref Target - Figure 4-40
Figure 4-40: Run Behavioral Simulation
Send Feedback
