C
HAPTER
4
| Basic Management Tasks
Displaying Bridge Extension Capabilities
– 105 –
3. Click Apply.

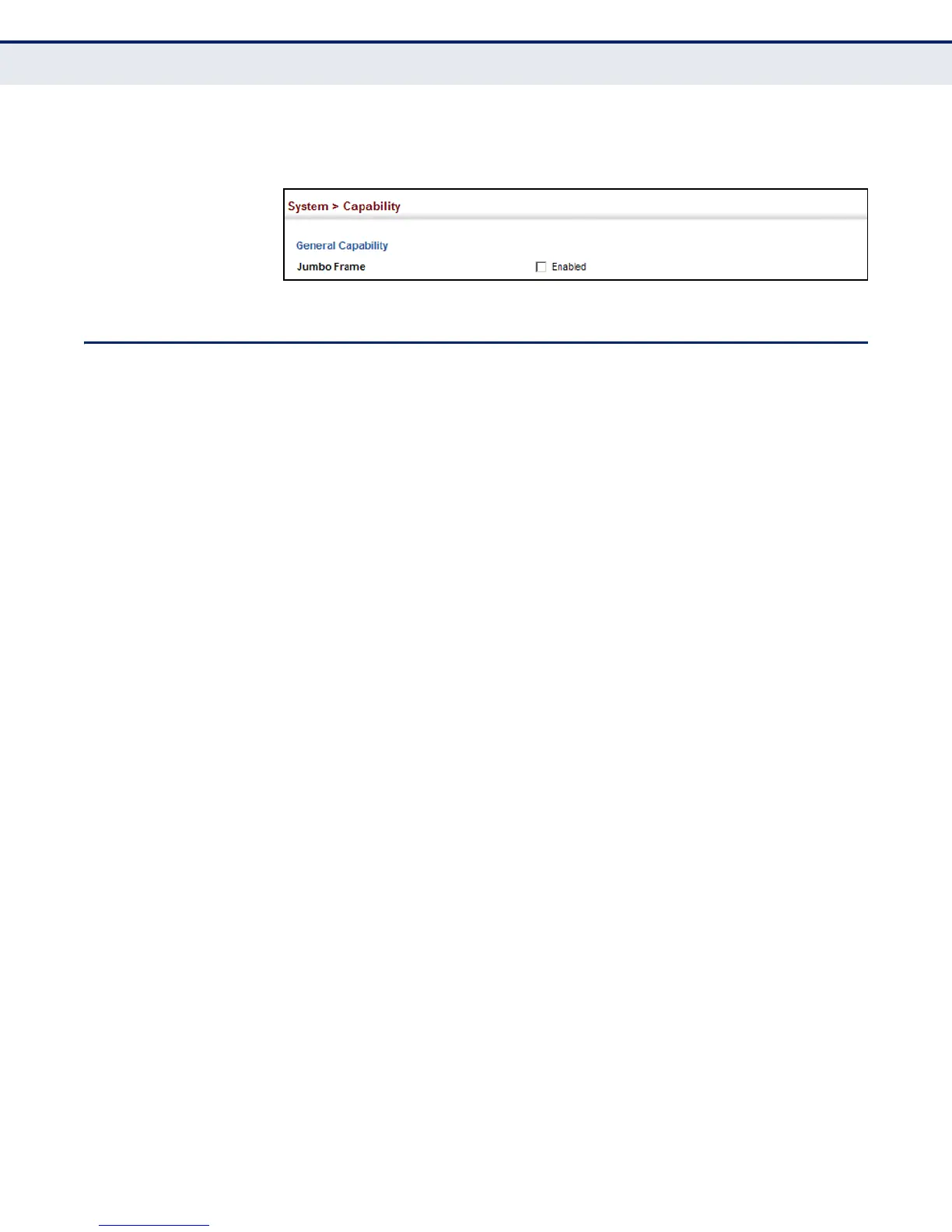

Figure 5: Configuring Support for Jumbo Frames
DISPLAYING BRIDGE EXTENSION CAPABILITIES
Use the System > Capability page to display settings based on the Bridge
MIB. The Bridge MIB includes extensions for managed devices that support
Multicast Filtering, Traffic Classes, and Virtual LANs. You can access these
extensions to display default settings for the key variables.
CLI REFERENCES
◆ "GVRP and Bridge Extension Commands" on page 832
PARAMETERS
The following parameters are displayed in the web interface:
◆ Extended Multicast Filtering Services – This switch does not
support the filtering of individual multicast addresses based on GMRP
(GARP Multicast Registration Protocol).
◆ Traffic Classes – This switch provides mapping of user priorities to
multiple traffic classes. (Refer to "Class of Service" on page 223.)
◆ Static Entry Individual Port – This switch allows static filtering for
unicast and multicast addresses. (Refer to "Setting Static Addresses"
on page 189.)
◆ VLAN Version Number – Based on IEEE 802.1Q, “1” indicates Bridges
that support only single spanning tree (SST) operation, and “2”
indicates Bridges that support multiple spanning tree (MST) operation.
◆ VLAN Learning – This switch uses Independent VLAN Learning (IVL),
where each port maintains its own filtering database.
◆ Local VLAN Capable – This switch does not support multiple local
bridges outside of the scope of 802.1Q defined VLANs.
◆ Configurable PVID Tagging – This switch allows you to override the
default Port VLAN ID (PVID used in frame tags) and egress status
(VLAN-Tagged or Untagged) on each port. (Refer to "VLAN
Configuration" on page 153.)
◆ Max Supported VLAN Numbers – The maximum number of VLANs
supported on this switch.
