C
HAPTER
6
| VLAN Configuration
IEEE 802.1Q Tunneling
– 176 –

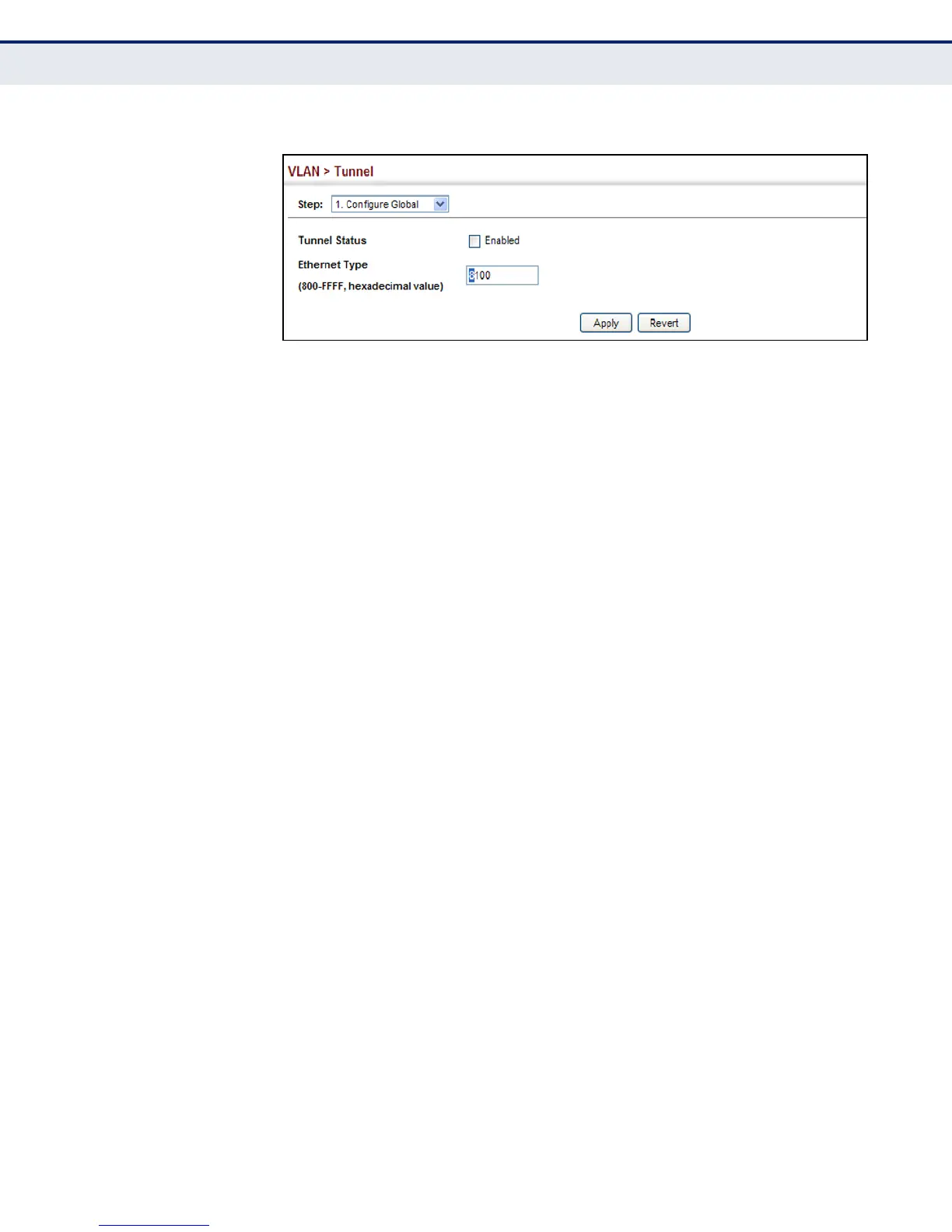

Figure 68: Enabling QinQ Tunneling
ADDING AN INTERFACE
TO A QINQ TUNNEL
Follow the guidelines in the preceding section to set up a QinQ tunnel on
the switch. Then use the VLAN > Tunnel (Configure Interface) page to set
the tunnel mode for any participating interface.
CLI REFERENCES
â—† "Configuring IEEE 802.1Q Tunneling" on page 846
COMMAND USAGE
â—† Use the Configure Global page to set the switch to QinQ mode before
configuring a tunnel port or tunnel uplink port (see "Enabling QinQ
Tunneling on the Switch" on page 175). Also set the Tag Protocol
Identifier (TPID) value of the tunnel port if the attached client is using a
nonstandard 2-byte ethertype to identify 802.1Q tagged frames.
â—† Then use the Configure Interface page to set the access interface on
the edge switch to Tunnel mode, and set the uplink interface on the
switch attached to the service provider network to Tunnel Uplink mode.
PARAMETERS
These parameters are displayed in the web interface:
◆ Interface – Displays a list of ports or trunks.
◆ Port – Port Identifier. (Range: 1-24)
◆ Trunk – Trunk Identifier. (Range: 1-32)
◆ Mode – Sets the VLAN membership mode of the port.
â–
None – The port operates in its normal VLAN mode. (This is the
default.)
â–
Tunnel – Configures QinQ tunneling for a client access port to
segregate and preserve customer VLAN IDs for traffic crossing the
service provider network.
â–
Tunnel Uplink – Configures QinQ tunneling for an uplink port to
another device within the service provider network.
