C
HAPTER
15
| Multicast Filtering
Multicast VLAN Registration
– 428 –
4. Select the port for which to display this information.

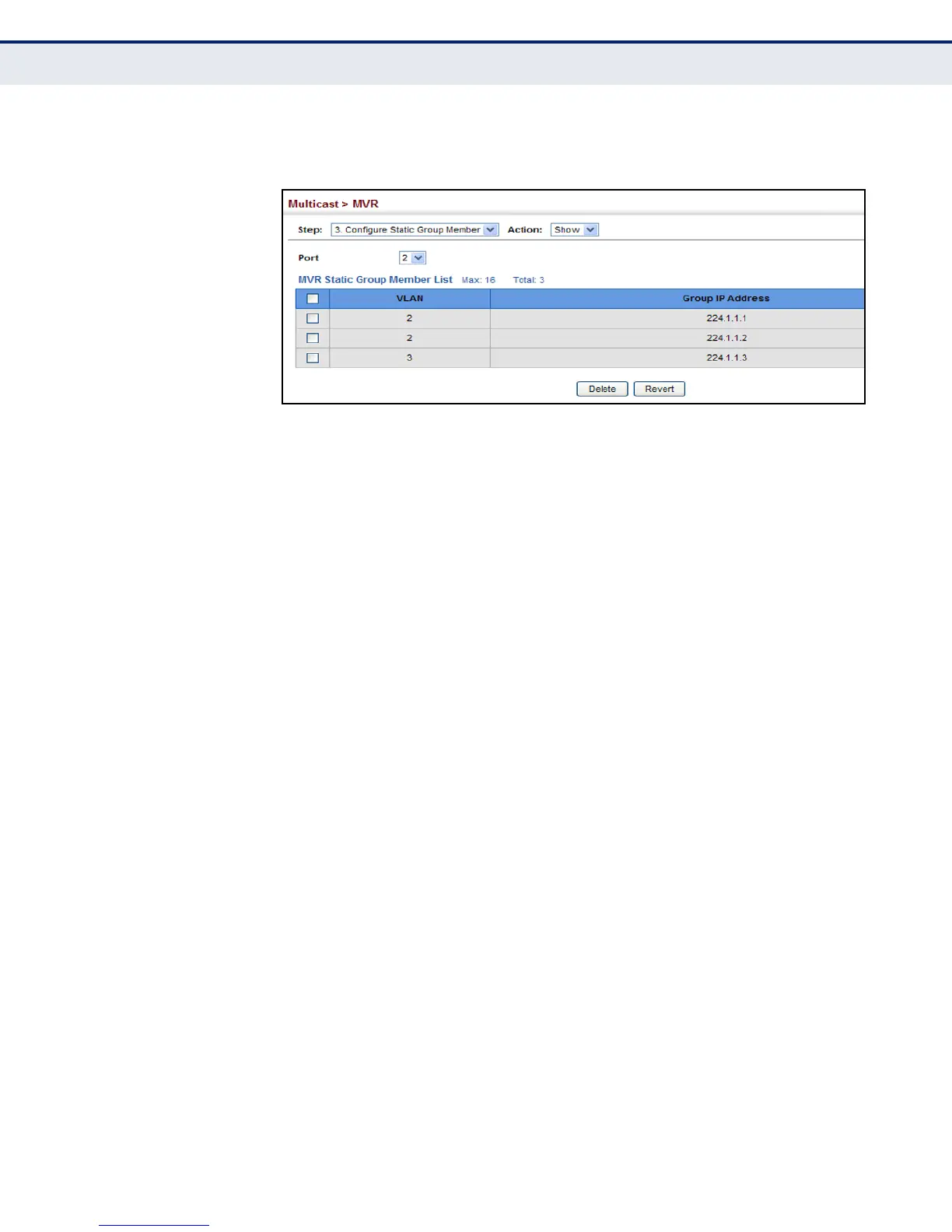

Figure 256: Showing the Static MVR Groups Assigned to a Port
SHOWING MULTICAST
GROUPS ASSIGNED TO
INTERFACES
Use the Multicast > MVR (Show Member) page to show the multicast
groups either statically or dynamically assigned to the MVR VLAN on each
interface.
CLI REFERENCES
â—† "show mvr" on page 935
PARAMETERS
These parameters are displayed in the web interface:
Group IP Address – Multicast groups assigned to the MVR VLAN.
Source IP Address – Indicates the source address of the multicast
service, or displays an asterisk if the group address has been statically
assigned.
VLAN – Indicates the MVR VLAN receiving the multicast service.
Forwarding Port – Shows the interfaces with subscribers for multicast
services provided through the MVR VLAN. Also shows the VLAN through
which the service is received. Note that this may be different from the MVR
VLAN if the group address has been statically assigned.
WEB INTERFACE
To show all MVR groups assigned to a port:
1. Click Multicast, MVR.
2. Select Show Member from the Step list.
