C
HAPTER
21
| Multicast Routing
Configuring PIM for IPv4
– 561 –

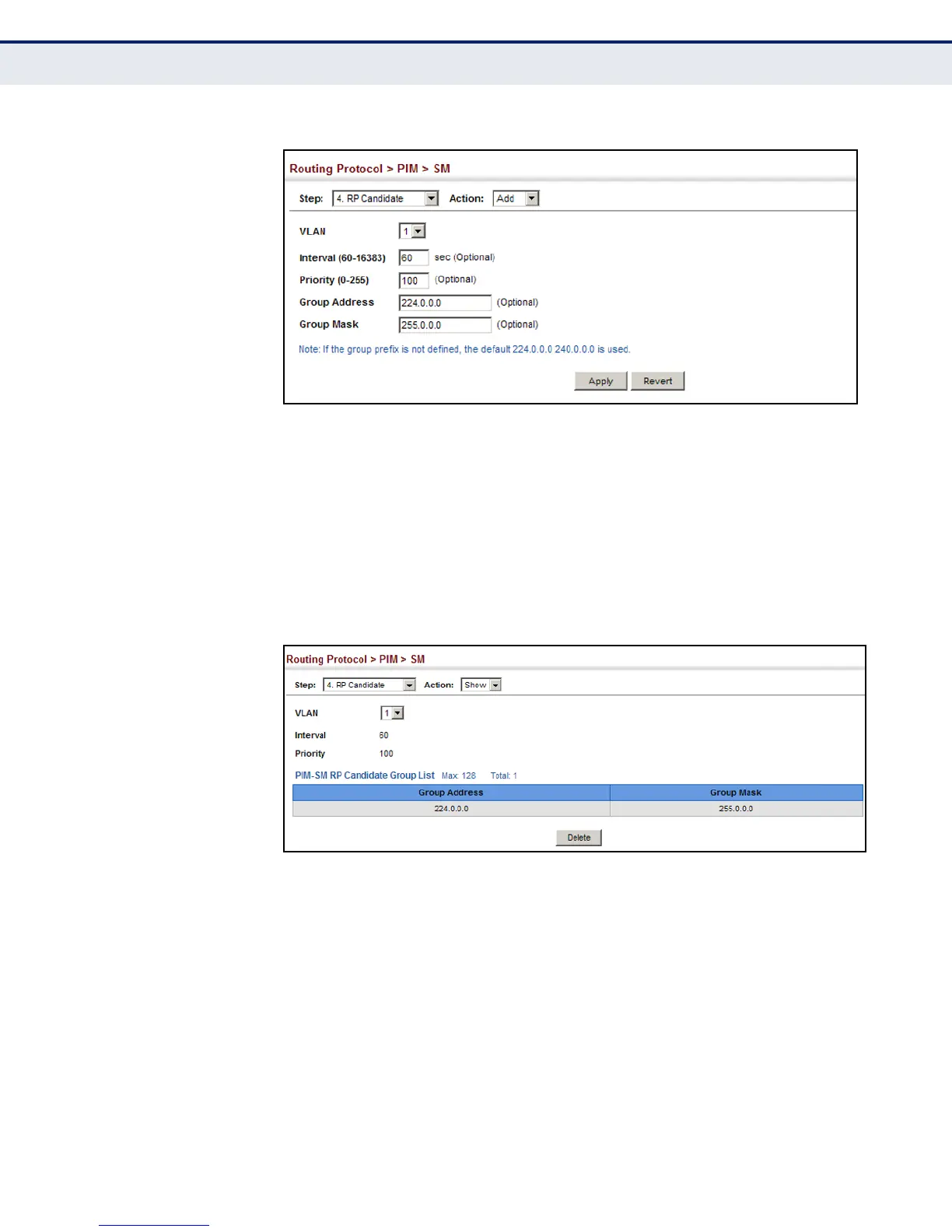

Figure 372: Configuring an RP Candidate
To display settings for an RP candidate:
1. Click Multicast, Multicast Routing, PIM-SM.
2. Select RP Candidate from the Step list.
3. Select Show from the Action list.
4. Select an interface from the VLAN list.
Figure 373: Showing Settings for an RP Candidate
DISPLAYING THE BSR
ROUTER
Use the Routing Protocol > PIM > SM (Show Information – Show BSR
Router) page to display Information about the bootstrap router (BSR).
CLI REFERENCES
â—† "show ip pim bsr-router" on page 1110
PARAMETERS
These parameters are displayed in the web interface:
◆ IP Address – IP address of interface configured as the BSR.
◆ Uptime – The time this BSR has been up and running.
