C
HAPTER
20
| Unicast Routing
Configuring the Routing Information Protocol
– 493 –
3. Add the address of any static neighbors which may not readily to
discovered through RIP.
4. Click Apply.

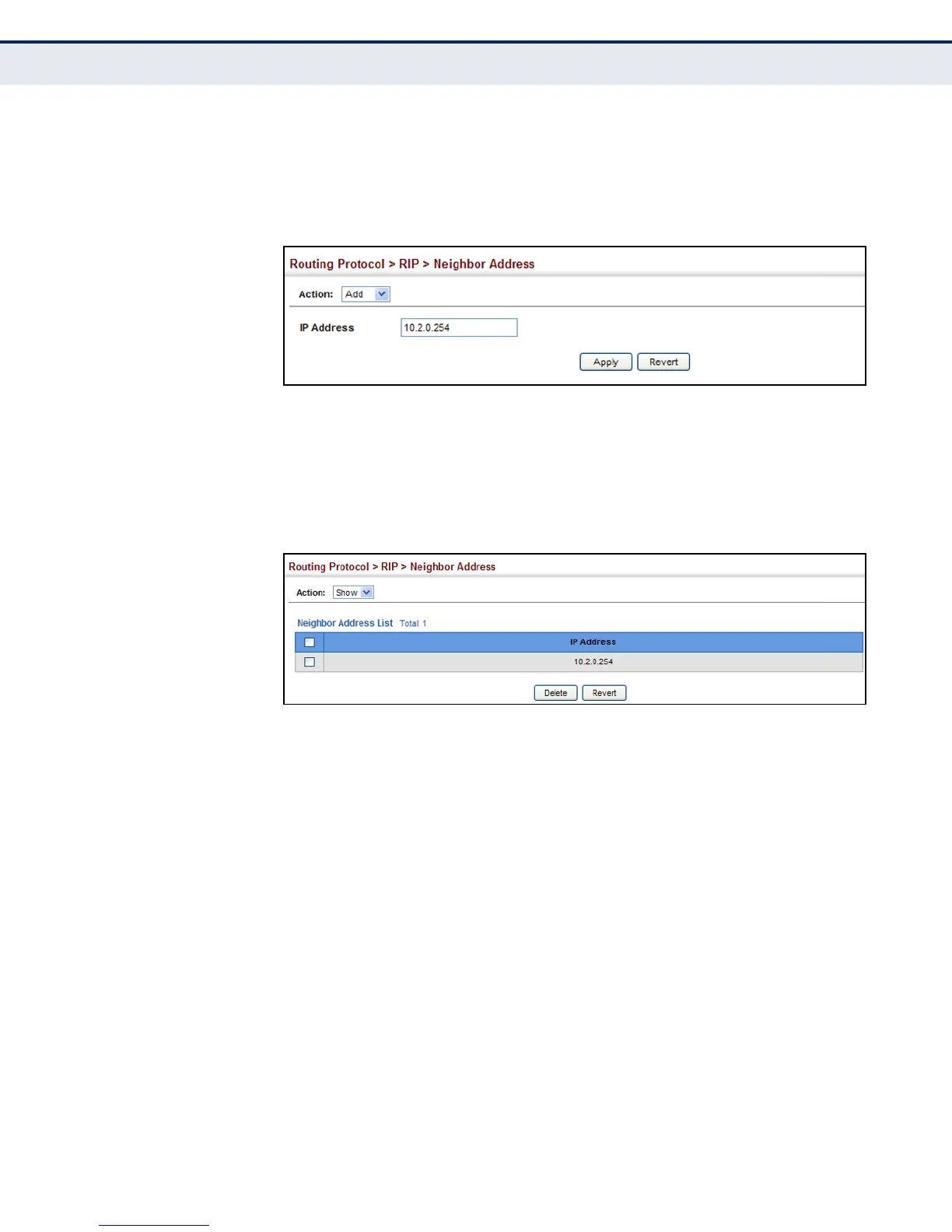

Figure 315: Specifying a Static RIP Neighbor
To show static RIP neighbors:
1. Click Routing Protocol, RIP, Neighbor Address.
2. Select Show from the Action list.
Figure 316: Showing Static RIP Neighbors
CONFIGURING ROUTE
REDISTRIBUTION
Use the Routing Protocol > RIP > Redistribute (Add) page to import
external routing information from other routing domains (that is, directly
connected routes, protocols, or static routes) into this autonomous system.
CLI REFERENCES
â—† "redistribute" on page 1031
PARAMETERS
These parameters are displayed in the web interface:
◆ Protocol – The type of routes that can be imported include:
â–
Connected – Imports routes that are established automatically just
by enabling IP on an interface.
â–
Static – Static routes will be imported into this routing domain.
â–
OSPF – External routes will be imported from the Open Shortest
Path First protocol into this routing domain.
