C
HAPTER
20
| Unicast Routing
Configuring the Routing Information Protocol
– 492 –

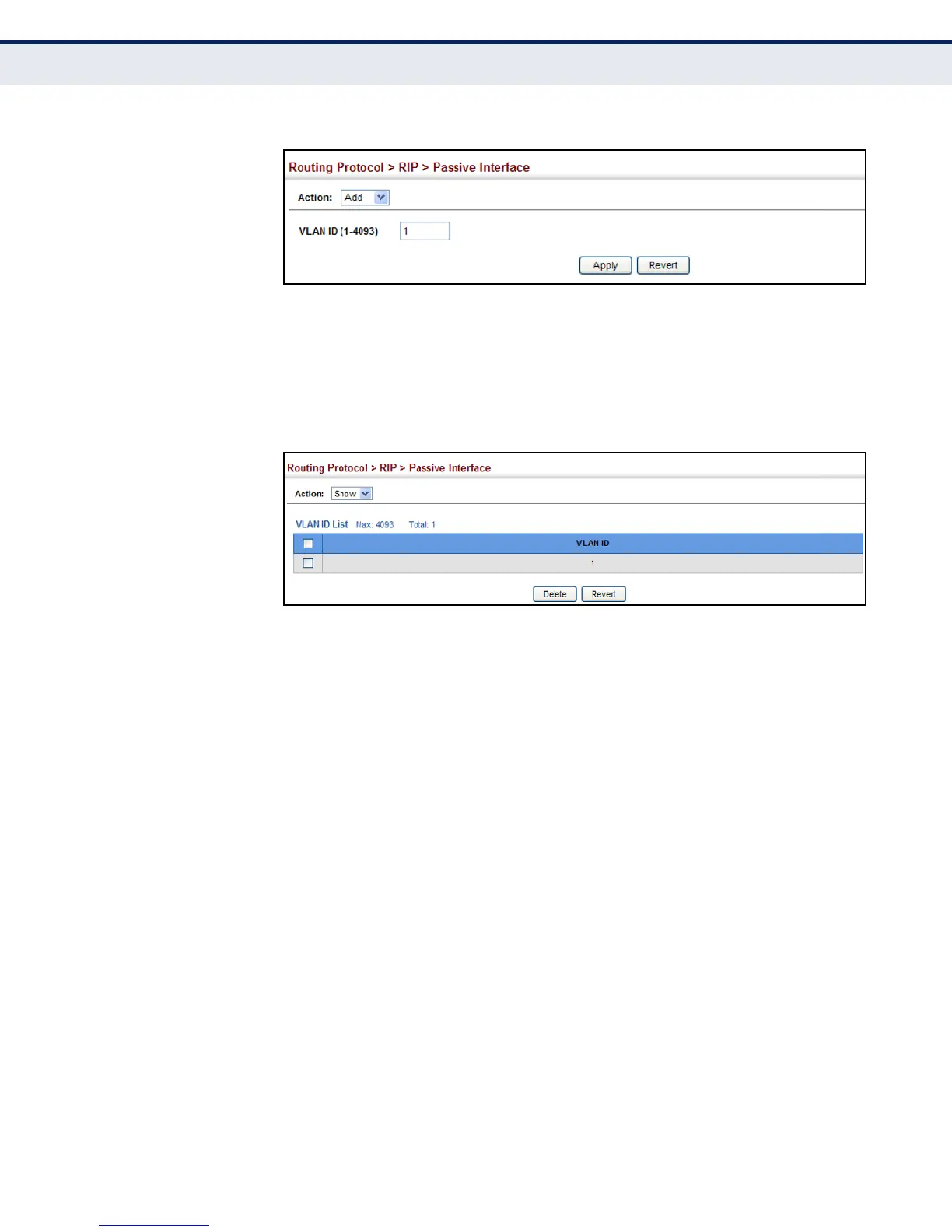

Figure 313: Specifying a Passive RIP Interface
To show the passive RIP interfaces:
1. Click Routing Protocol, RIP, Passive Interface.
2. Select Show from the Action list.
Figure 314: Showing Passive RIP Interfaces
SPECIFYING STATIC
NEIGHBORS
Use the Routing Protocol > RIP > Passive Interface (Add) page to configure
this router to directly exchange routing information with a static neighbor
(specifically for point-to-point links), rather than relying on broadcast or
multicast messages generated by the RIP protocol. This feature can be
used in conjunction with the passive interface feature (described in the
preceding section) to control the routing updates sent to specific
neighbors.
CLI REFERENCES
â—† "neighbor" on page 1029
PARAMETERS
These parameters are displayed in the web interface:
◆ IP Address – IP address of a static neighboring router with which to
exchange routing information.
WEB INTERFACE
To specify a static RIP neighbor:
1. Click Routing Protocol, RIP, Neighbor Address.
2. Select Add from the Action list.
