C
HAPTER
15
| Multicast Filtering
Filtering and Throttling IGMP Groups
– 406 –
PARAMETERS
These parameters are displayed in the web interface:
◆ IGMP Filter Status – Enables IGMP filtering and throttling globally for
the switch. (Default: Disabled)
WEB INTERFACE
To enables IGMP filtering and throttling on the switch:
1. Click Multicast, IGMP Snooping, Filtering.
2. Select Configure General from the Action list.
3. Enable IGMP Filter Status.
4. Click Apply.

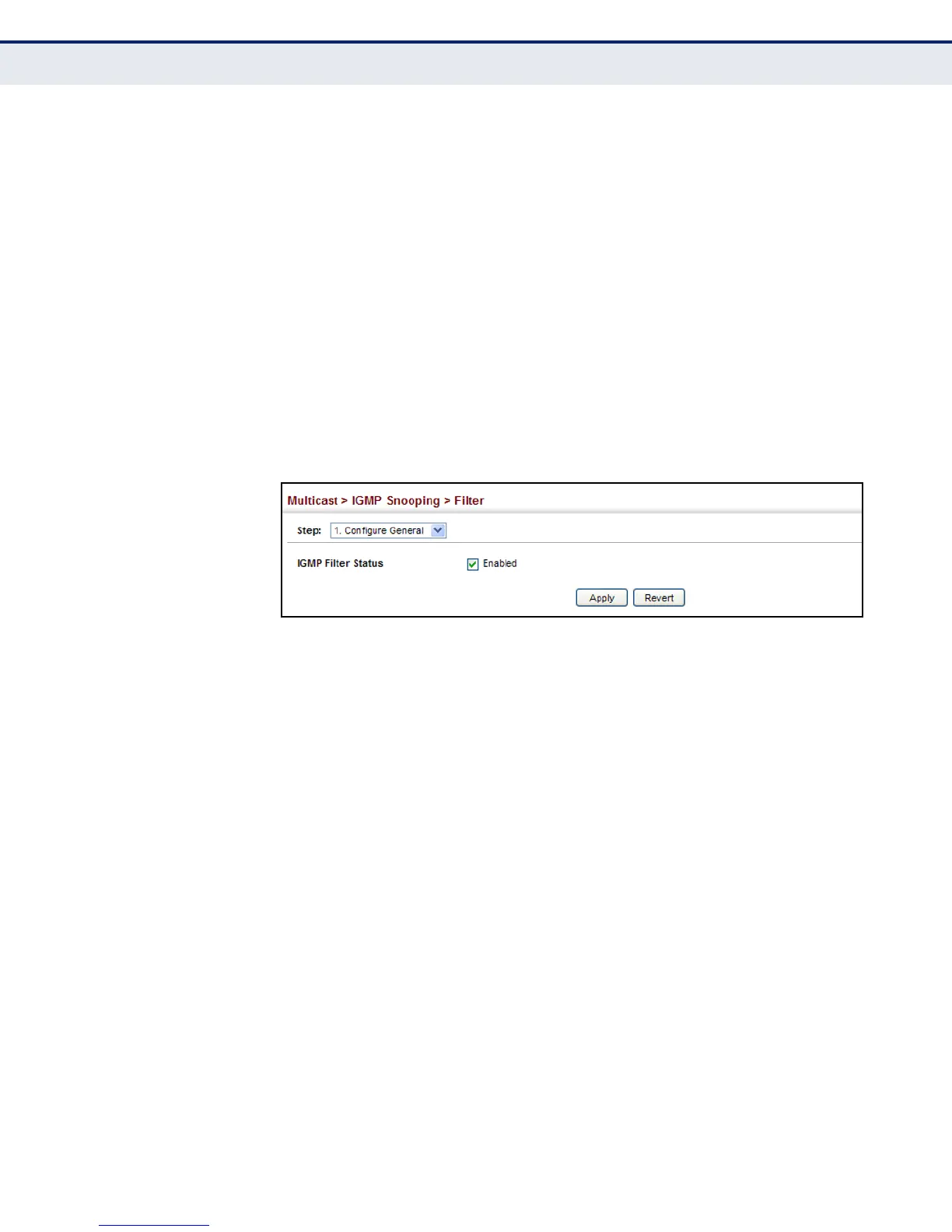

Figure 237: Enabling IGMP Filtering and Throttling
CONFIGURING IGMP
FILTER PROFILES
Use the Multicast > IGMP Snooping > Filter (Add) page to create an IGMP
profile and set its access mode. Then use the (Add Multicast Group Range)
page to configure the multicast groups to filter.
CLI REFERENCES
◆ "IGMP Filtering and Throttling" on page 923
COMMAND USAGE
Specify a range of multicast groups by entering a start and end IP address;
or specify a single multicast group by entering the same IP address for the
start and end of the range.
PARAMETERS
These parameters are displayed in the web interface:
Add
◆ Profile ID – Creates an IGMP profile. (Range: 1-4294967295)
◆ Access Mode – Sets the access mode of the profile; either permit or
deny. (Default: Deny)
When the access mode is set to permit, IGMP join reports are
processed when a multicast group falls within the controlled range.
