| VLAN Configuration
Private VLANs
– 169 –

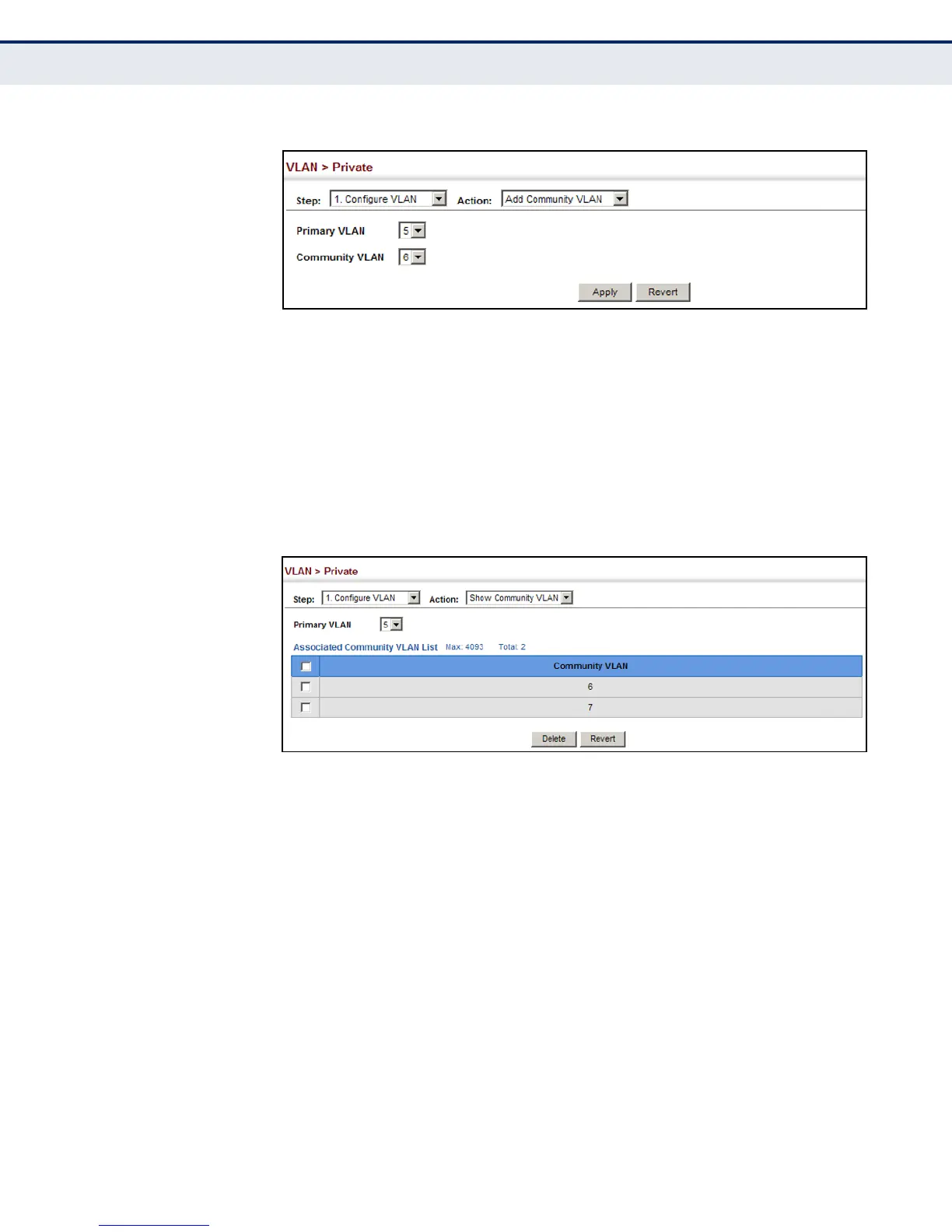

Figure 64: Associating Private VLANs
To show a list of community VLANs associated with a primary VLAN:
1. Click VLAN, Private.
2. Select Configure VLAN from the Step list.
3. Select Show Community VLAN from the Action list.
4. Select an entry from the Primary VLAN list.
Figure 65: Showing Associated VLANs
CONFIGURING PRIVATE
VLAN INTERFACES
Use the VLAN > Private (Configure Interface) page to set the private VLAN
interface type, and assign the interfaces to a private VLAN.
CLI REFERENCES
â—† "switchport private-vlan mapping" on page 856
â—† "switchport private-vlan host-association" on page 855
PARAMETERS
These parameters are displayed in the web interface:
◆ Interface – Displays a list of ports or trunks.
◆ Port – Port Identifier. (Range: 1-24)
◆ Trunk – Trunk Identifier. (Range: 1-32)
◆ Port/Trunk Mode – Sets the private VLAN port types.
