C
HAPTER
6
| VLAN Configuration
Private VLANs
– 170 –
■
Normal – The port is not assigned to a private VLAN.
■
Host – The port is a community port. A community port can
communicate with other ports in its own community VLAN and with
designated promiscuous port(s).
■
Promiscuous – A promiscuous port can communicate with all
interfaces within a private VLAN.
◆ Primary VLAN – Conveys traffic between promiscuous ports, and
between promiscuous ports and community ports within the associated
secondary VLANs. If Port Mode is “Promiscuous,” then specify the
associated primary VLAN.
◆ Community VLAN – A community VLAN conveys traffic between
community ports, and from community ports to their designated
promiscuous ports. Set Port Mode to “Host,” and then specify the
associated Community VLAN.
WEB INTERFACE
To configure a private VLAN port or trunk:
1. Click VLAN, Private.
2. Select Configure Interface from the Step list.
3. Set the Interface type to display as Port or Trunk.
4. Set the Port Mode to Promiscuous.
5. For an interface set the Promiscuous mode, select an entry from the
Primary VLAN list.
6. For an interface set the Host mode, select an entry from the
Community VLAN list.
7. Click Apply.

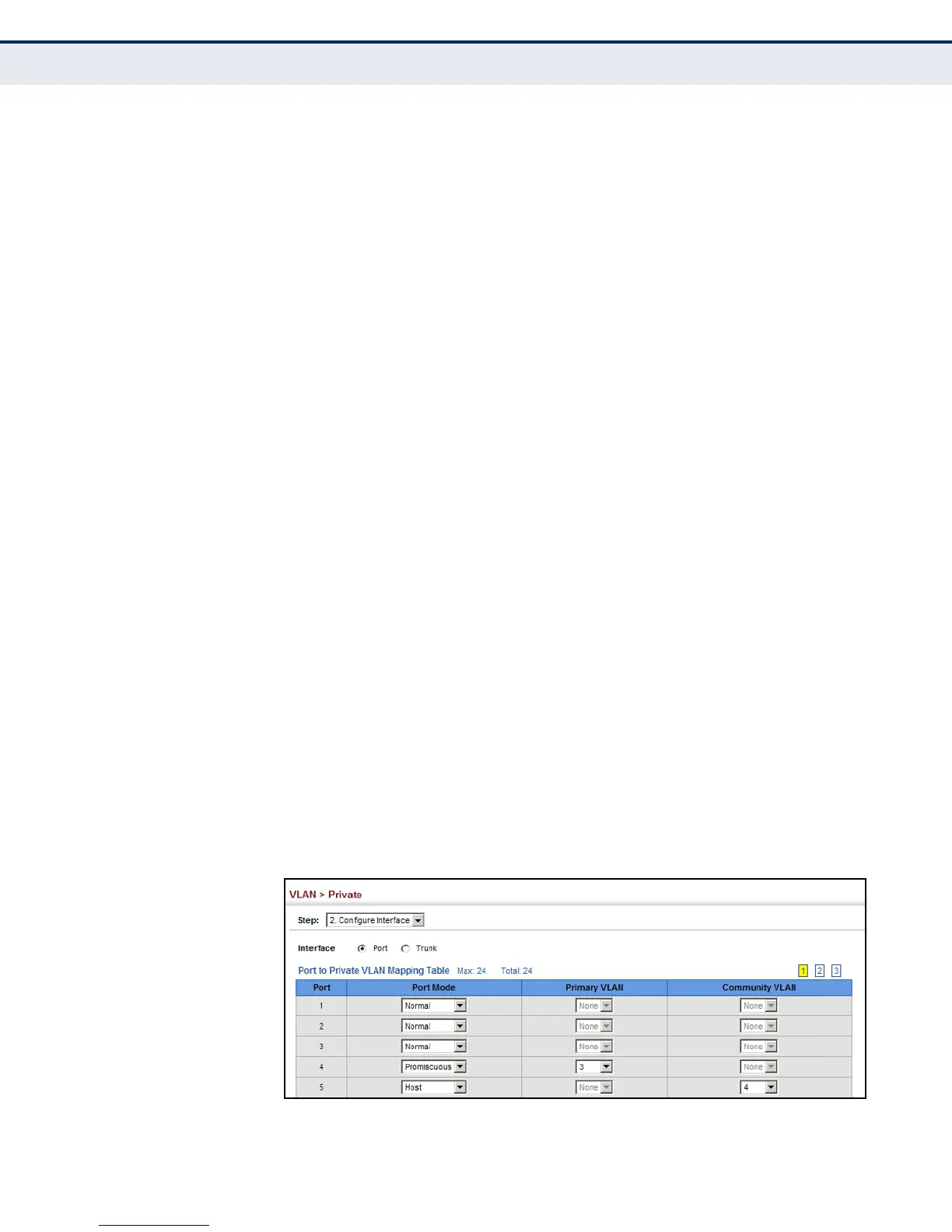

Figure 66: Configuring Interfaces for Private VLANs
