C
HAPTER
4
| Basic Management Tasks
Displaying CPU Utilization
– 118 –
WEB INTERFACE
To configure parameters for the console port:
1. Click System, then Telnet.
2. Specify the connection parameters as required.
3. Click Apply

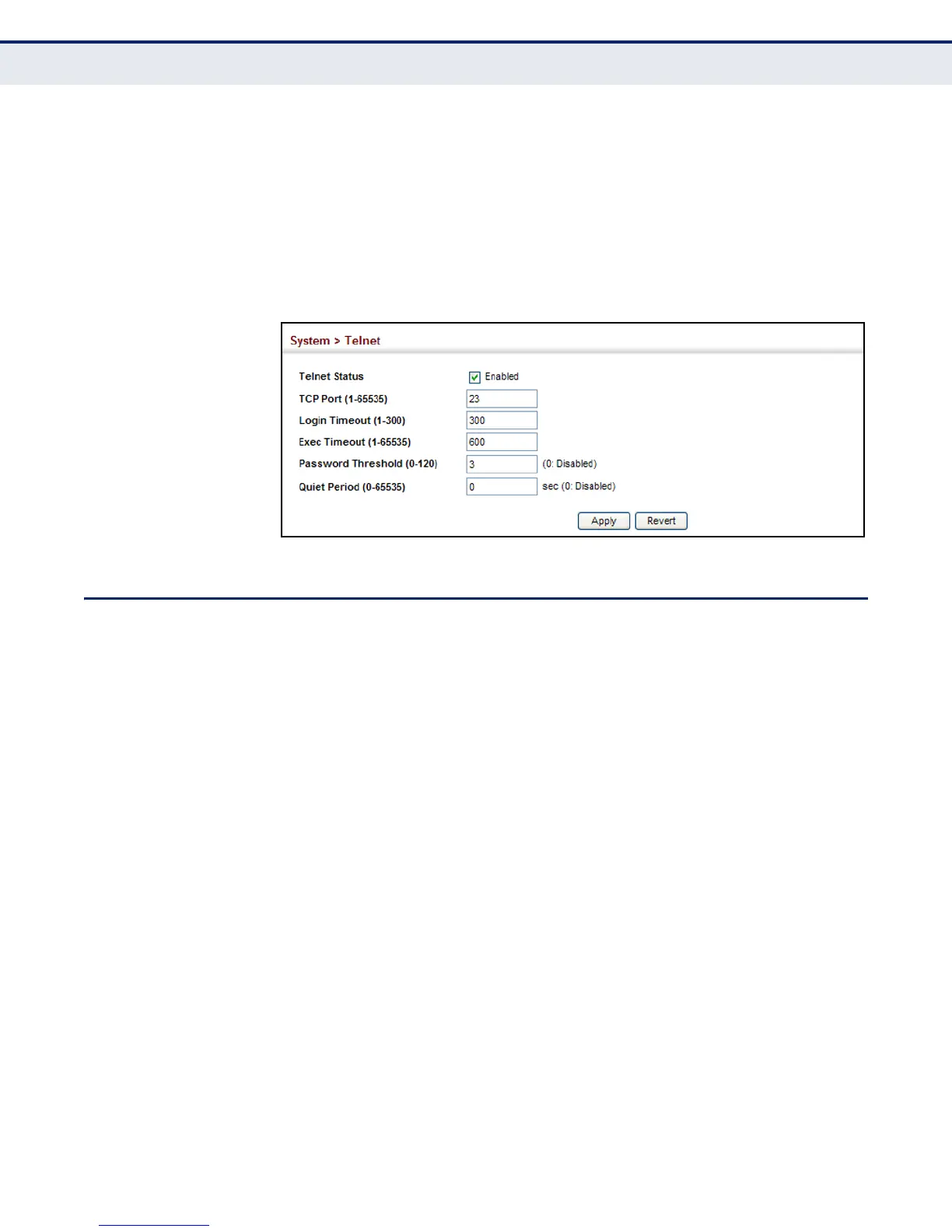

Figure 16: Telnet Connection Settings
DISPLAYING CPU UTILIZATION
Use the System > CPU Utilization page to display information on CPU
utilization.
CLI REFERENCES
â—† no comparable command
PARAMETERS
The following parameters are displayed in the web interface:
◆ Time Interval – The interval at which to update the displayed
utilization rate. (Options: 1, 5, 10, 30, 60 seconds; Default: 1 second)
◆ CPU Utilization – CPU utilization over specified interval.
WEB INTERFACE
To display CPU utilization:
1. Click System, then CPU Utilization.
2. Change the update interval if required. Note that the interval is
changed as soon as a new setting is selected.
