C
HAPTER
5
| Interface Configuration
Trunk Configuration
– 145 –

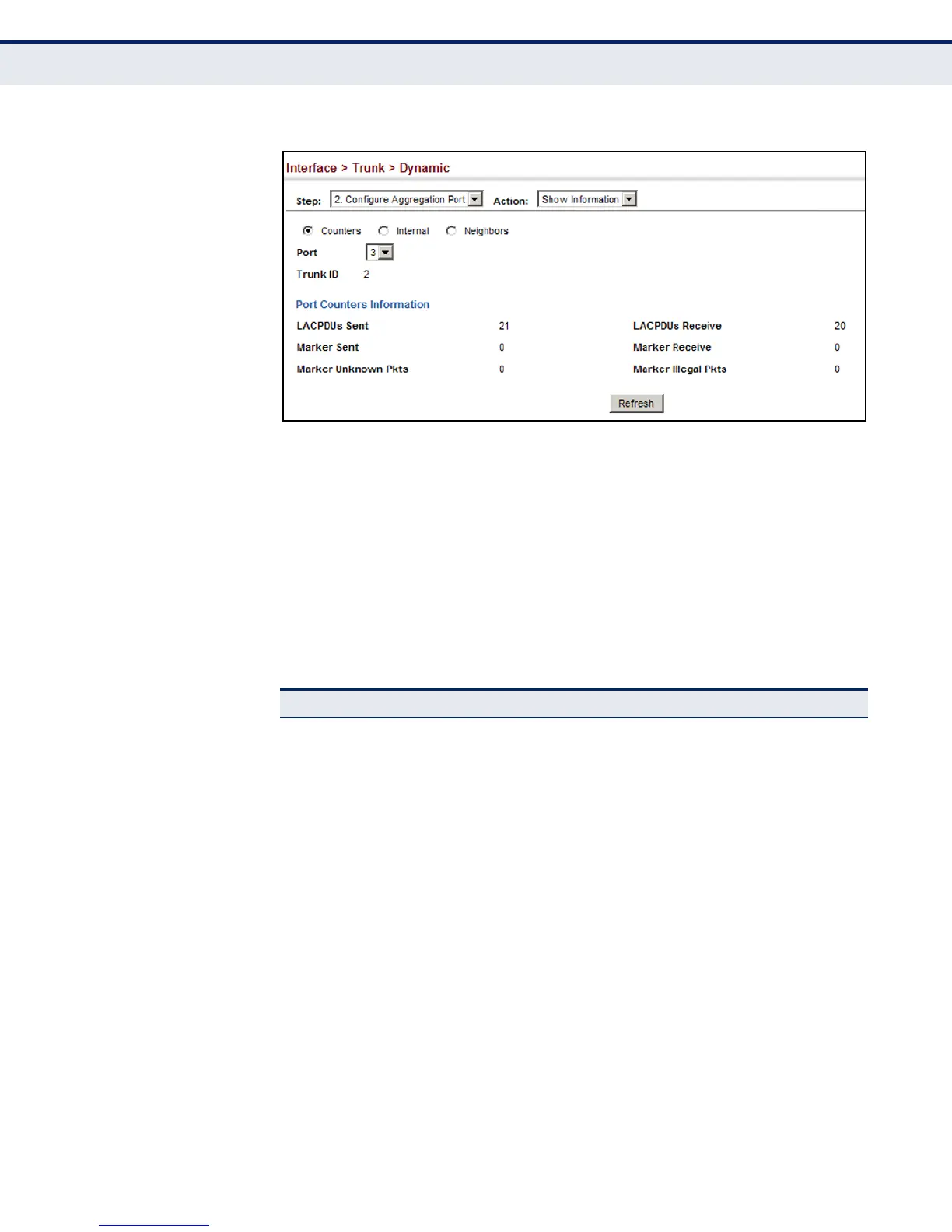

Figure 43: Displaying LACP Port Counters
DISPLAYING LACP
SETTINGS AND STATUS
FOR THE LOCAL SIDE
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Internal) page to display the configuration settings and
operational state for the local side of a link aggregation.
CLI REFERENCES
â—† "show lacp" on page 793
PARAMETERS
These parameters are displayed in the web interface:
Table 7: LACP Internal Configuration Information
Parameter Description
LACP System Priority LACP system priority assigned to this port channel.
LACP Port Priority LACP port priority assigned to this interface within the channel group.
Admin Key Current administrative value of the key for the aggregation port.
Oper Key Current operational value of the key for the aggregation port.
LACPDUs Interval Number of seconds before invalidating received LACPDU information.
