| Unicast Routing
Configuring the Open Shortest Path First Protocol (Version 2)
– 520 –
PARAMETERS
These parameters are displayed in the web interface:
◆ Process ID – Process ID as configured in the Network Area
configuration screen (see page 504).
◆ Area ID – Identifies an area for which the routes are summarized.
The area ID can be in the form of an IPv4 address, or also as a four
octet unsigned integer ranging from 0-4294967295.
◆ Range Network – Base address for the routes to summarize.
◆ Range Netmask – Network mask for the summary route.
◆ Advertising – Indicates whether or not to advertise the summary
route. If the routes are set to be advertised, the router will issue a
Type 3 summary LSA for each specified address range. If the summary
is not advertised, the specified routes remain hidden from the rest of
the network. (Default: Advertise)
WEB INTERFACE
To configure a route summary for an area range:
1. Click Routing Protocol, OSPF, Area Range.
2. Select Add from the Action list.
3. Specify the process ID, area identifier, the base address and network
mask, and select whether or not to advertise the summary route to
other areas.
4. Click Apply

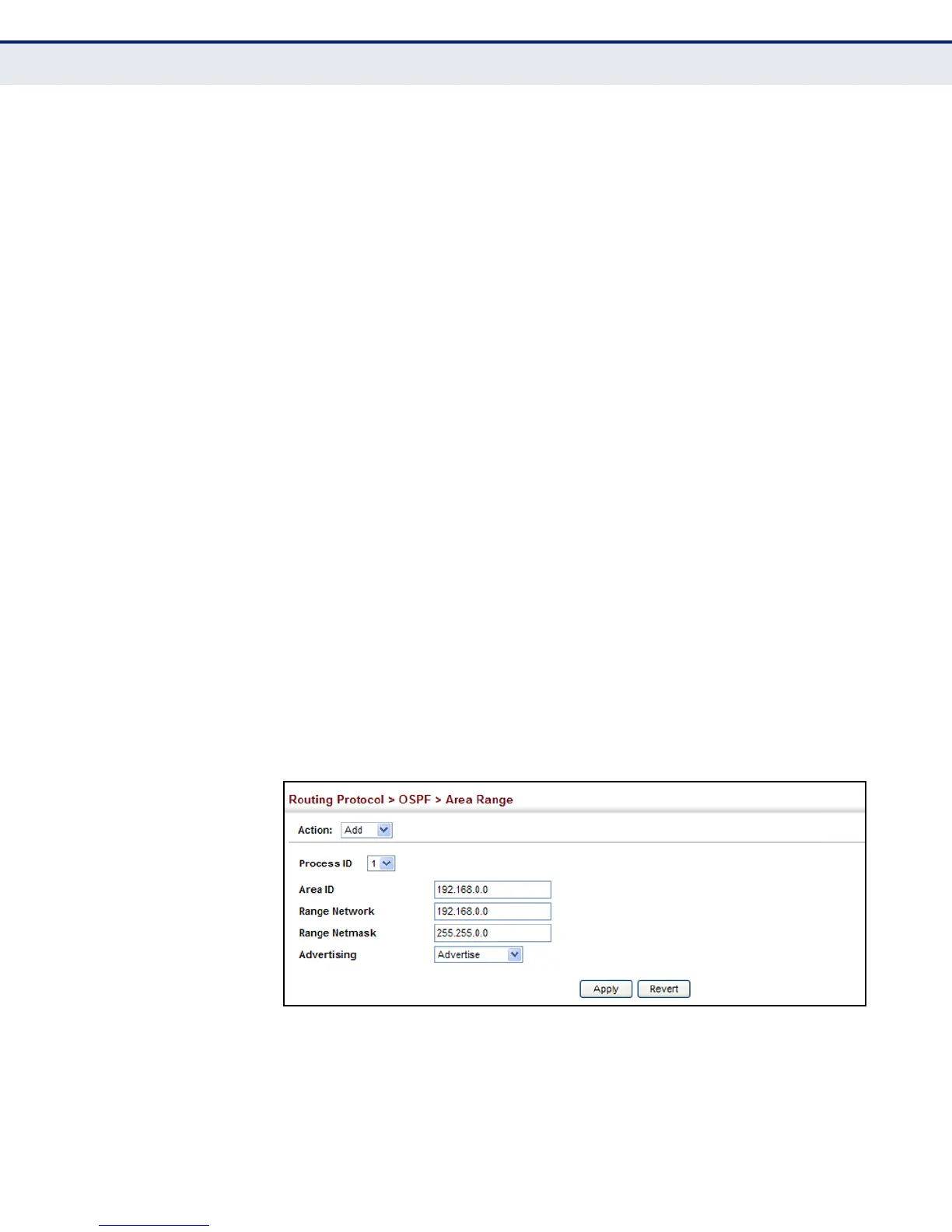

Figure 342: Configuring Route Summaries for an Area Range
To show the configured route summaries:
1. Click Routing Protocol, OSPF, Area Range.
2. Select Show from the Action list.
