Fuji Xerox DocuPrint CM305 df Service Manual

2 - 100
Chapter 2 Troubleshooting
FIP-1.60 061-370: IOT ROS Failure
Step Check
Remedy
Yes No
Possible causative parts:
ROS ASSY (PL4.1.1)
HARN ASSY ROS RE (PL4.1.22)
HARN ASSY ROS VIDEO (PL4.1.23)
PWBA MCU (PL8.3.6)
1
Does the error still occur when the power is turned OFF and
ON?
Go to step 2. End of work.
2
Checking after resetting the PWBA MCU.
Reseat the PWBA MCU.
Does the error still occur when the power is turned OFF and
ON?
Go to step 3. End of work.
3
Checking after resetting the ROS ASSY.
Reseat the ROS ASSY.
Does the error still occur when the power is turned OFF and
ON?
Go to step 4. End of work.
4

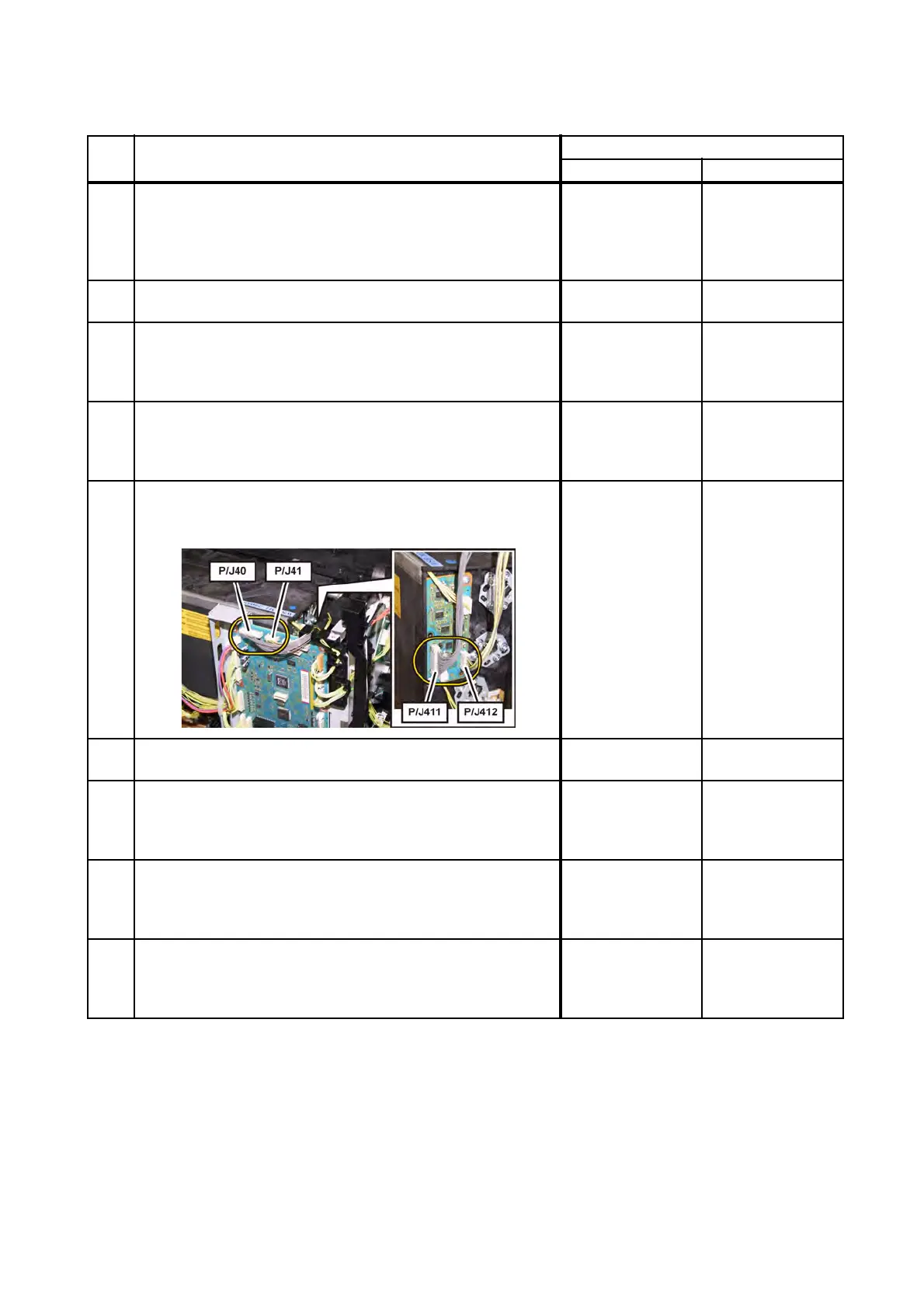

Check the connections between the ROS ASSY and PWBA
MCU.
Are P/J40, P/J41, P/J411 and P/J412 connected correctly?
Go to step 6.
Reconnect the
connector(s) P/
J40, P/J41, P/J411
and/or P/J412
correctly, then go
to step 5.
5
Does the error still occur when the power is turned OFF and
ON?
Go to step 6. End of work.
6
Checking the HARN ASSY ROS RE for continuity.
Disconnect P/J40 from the PWBA MCU.
Disconnect P/J411 from the ROS ASSY.
Is each cable of J40 <=> J411 continuous?
Go to step 7.
Replace the
HARN ASSY ROS
RE.
7
Checking the HARN ASSY ROS VIDEO for continuity.
Disconnect J41 from the PWBA MCU.
Disconnect J412 from the ROS ASSY.
Is each cable of J41 <=> J412 continuous?
Go to step 8.
Replace the
HARN ASSY ROS
VIDEO.
8
Checking after replacing the KIT ROS.
Replace the KIT ROS. (Refer to REP4.1.)
Does the error still occur when the power is turned OFF and
ON?
Replace the KIT
PWBA MCU.
(Refer to
REP8.10.)
End of work.
