Fuji Xerox DocuPrint CM305 df - Rep8.3 Memory Card (Pl8.1.4)

4 - 214
Chapter 4 Disassembly / Assembly and Adjustments

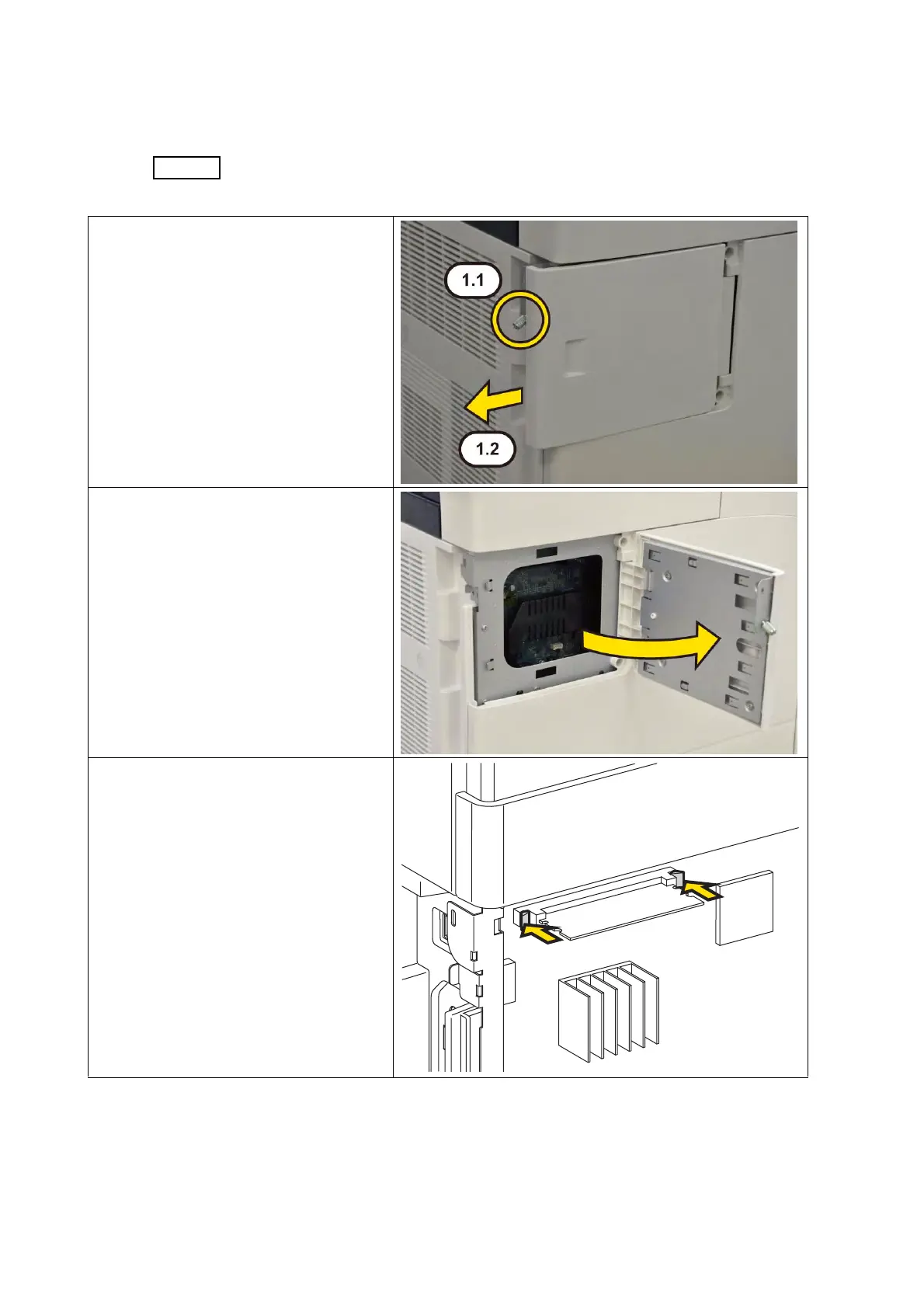

REP8.3 MEMORY CARD (PL8.1.4)
[Removal]
NOTE
Use the wrist strap to protect the PWB from the electrostatic.
1) Loosen the SCREW KNURLING,
shift the COVER ASSY ESS
(PL1.1.9) to rear side.
2) Open the COVER ASSY ESS.
3) Push the release latches of the
socket to release the MEMORY
CARD (PL8.1.4).
