Fuji Xerox DocuPrint CM305 df Service Manual

4 - 146
Chapter 4 Disassembly / Assembly and Adjustments
REP4.6 PHD ASSY (PL4.1.21)
[Removal]
NOTE
Remove the CASSETTE ASSY 250 MG AIO before working.
NOTE
Cover the drum of the PHD ASSY to avoid exposure to light.
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).

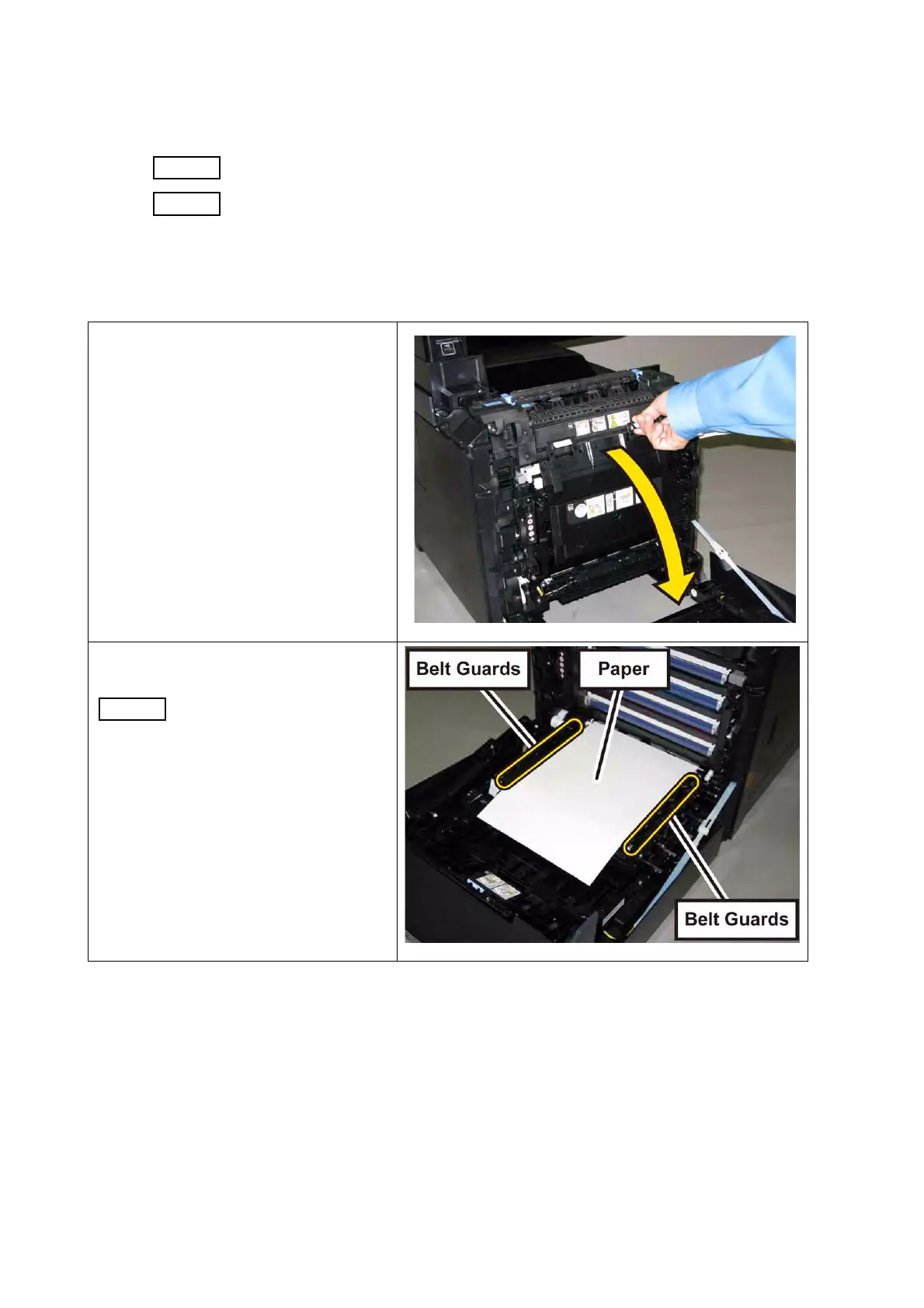

3) Open the TRANSFER ASSY
(PL6.1.7).
4) Put the paper on the TRANSFER ASSY
to protect the belt.
NOTE
When carrying out the work
this procedure, take care
not to cover the left and
right of the belt guards with
the paper.
