4 - 58
Chapter 4 Disassembly / Assembly and Adjustments
REP2.4 TRAY ASSY EXTENSION (PL2.1.17)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
[Replacement]
Replace in the reverse order of the removal procedure.

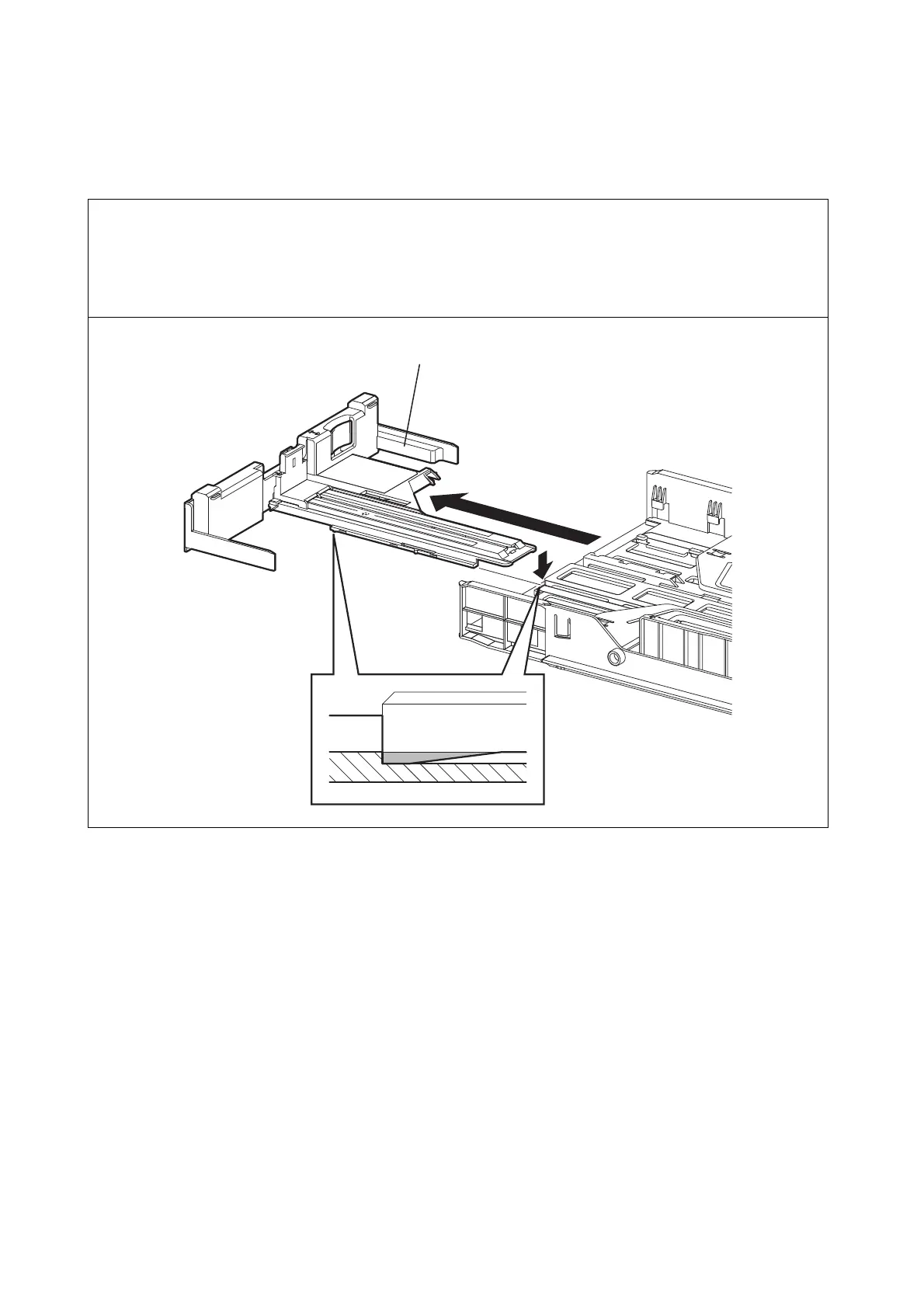

2) Shift the TRAY ASSY EXTENSION (PL2.1.17) to backward until it stops.
3) Push the back center of the HOUSING CST 250 (PL2.1.18) to release the stopper of the TRAY
ASSY EXTENSION.
4) Remove the TRAY ASSY EXTENSION from the CASSETTE ASSY 250 MG AIO (PL2.1.1) by
depressing the latch lever of the TRAY ASSY EXTENSION.
To Next Page
