4 - 32
Chapter 4 Disassembly / Assembly and Adjustments
REP1.9 COVER ASSY SIDE L AIO (PL1.1.13)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)

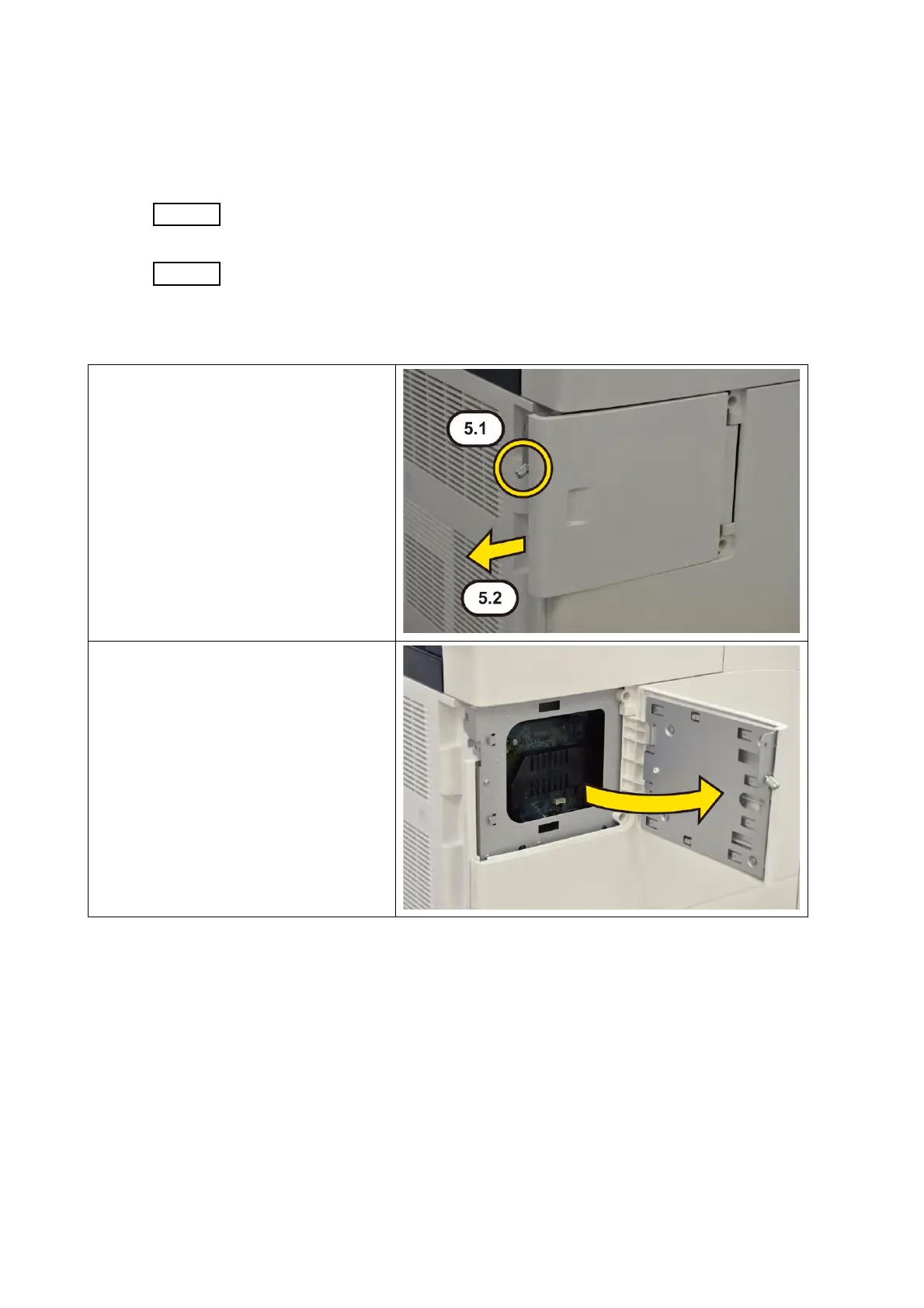

5) Loosen the SCREW KNURLING,
shift the COVER ASSY ESS
(PL1.1.9) to rear side.
6) Open the COVER ASSY ESS.
To Next Page
