4 - 168
Chapter 4 Disassembly / Assembly and Adjustments
REP5.5 TONER CARTRIDGE (K), (C), (M), (Y) (PL5.1.21~24)
[Removal]
NOTE
Described below is the removal procedure common among the four TONER
CARTRIDGEs

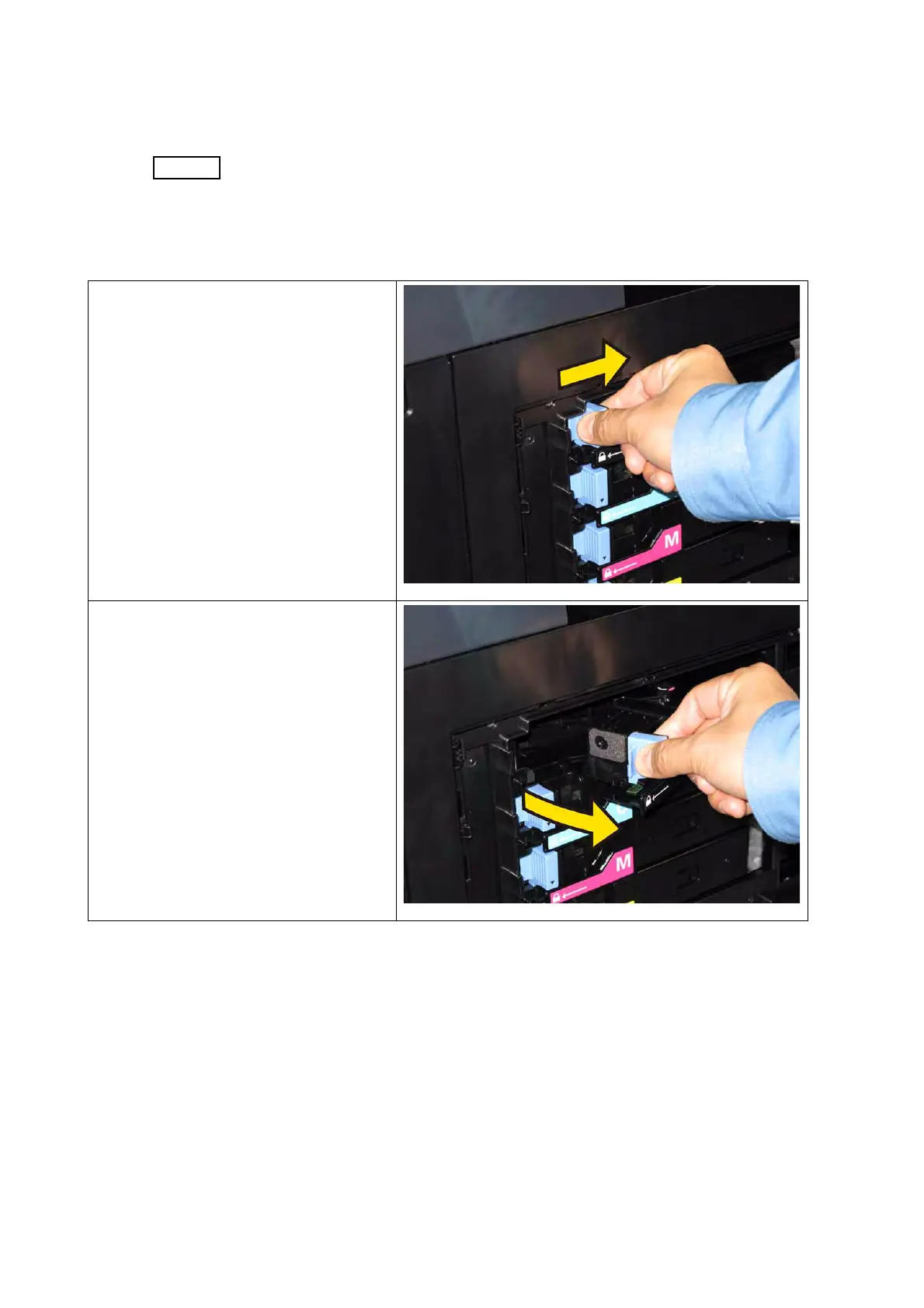

1) Open the COVER WINDOW TNR AIO (PL1.1.7).
2) Move the handle of the TONER
CARTRIDGE to backward, to
release the lock.
3) Open the HOLDER ASSY TCRU K
(PL5.1.17).
