10 – 22
Chapter 10 Machine Overview

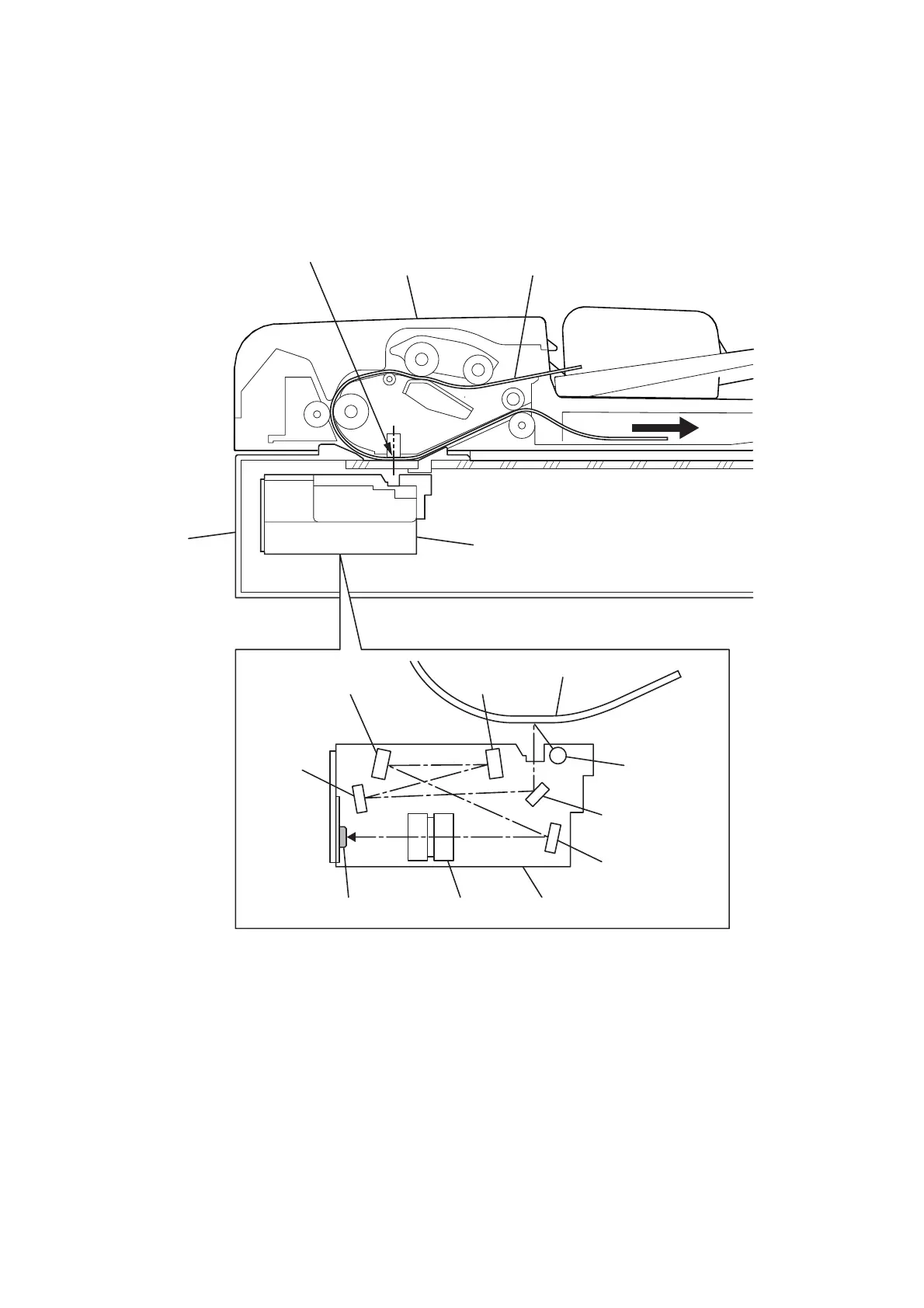

10.9.3 Document Scanning at Auto Document Feeder (ADF)
By the torque from the ADF Motor, the document is fed through the Scanner Home (CVT: Constant
Velocity Transport) Position at the feeding speed corresponding to the set magnification. While passing
through this position, the document is illuminated by the exposure lamp in the Carriage Assy, and the
reflected light is captured by the CCD Image Sensor through the multiple mirrors and the lens.
MiA06003GA
Carriage Assy
CVT Position
ADF Document
IIT
Document
Mirror 1
Exposure Lamp
Mirror 2
Mirror 4
Mirror 5
Lens
CCD Image Sensor
Carriage Assy
Mirror 3
To Next Page
