Fuji Xerox DocuPrint CM305 df Service Manual

10 – 36
Chapter 10 Machine Overview

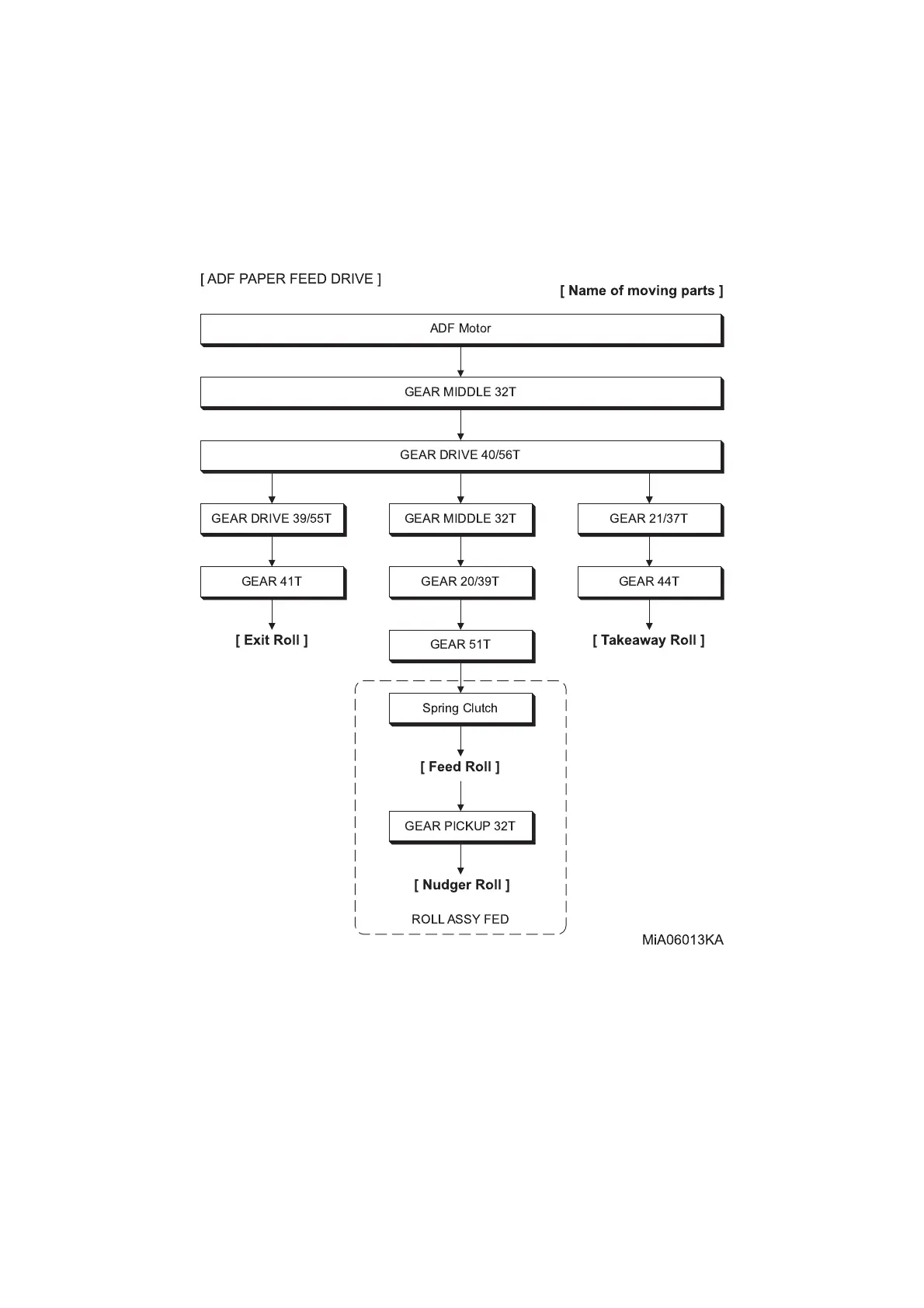

10.13 Drive Transmission Route of ADF Motor
Refer to "DocuPrint CM305 df" for Drive Transmission Route of Printer.
10.13.1 ADF Motor
Rotation power of the ADF Motor is transmitted through the route below.
ADF Motor
GEAR MIDDLE 32T
GEAR DRIVE 40/56T
GEAR DRIVE 39/55T
GEAR 41T
GEAR MIDDLE 32T
GEAR 20/39T
GEAR 51T
Spring Clutch
GEAR PICKUP 32T
GEAR 21/37T
GEAR 44T
[ Takeaway Roll ][ Exit Roll ]
[ Feed Roll ]
[ Nudger Roll ]
ROLL ASSY FED
[ Name of moving parts ]
MiA06013KA
[ ADF PAPER FEED DRIVE ]
