Fuji Xerox DocuPrint CM305 df - Rep6.2 Stopper Pivot (Pl6.1.3), Pivot Trans L (Pl6.1.4), Gear T4 (Pl6.1.5); Shaft Assy Pivot (Pl6.1.6)

4 - 176
Chapter 4 Disassembly / Assembly and Adjustments
REP6.2STOPPER PIVOT (PL6.1.3), PIVOT TRANS L (PL6.1.4), GEAR T4 (PL6.1.5),
SHAFT ASSY PIVOT (PL6.1.6)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
NOTE
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
NOTE
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)
6) Remove the COVER ASSY SIDE L AIO. (REP1.9)
NOTE
When performing the step described below, it is not necessary to disengage the
connector of the CLUTCH ASSY DRV.

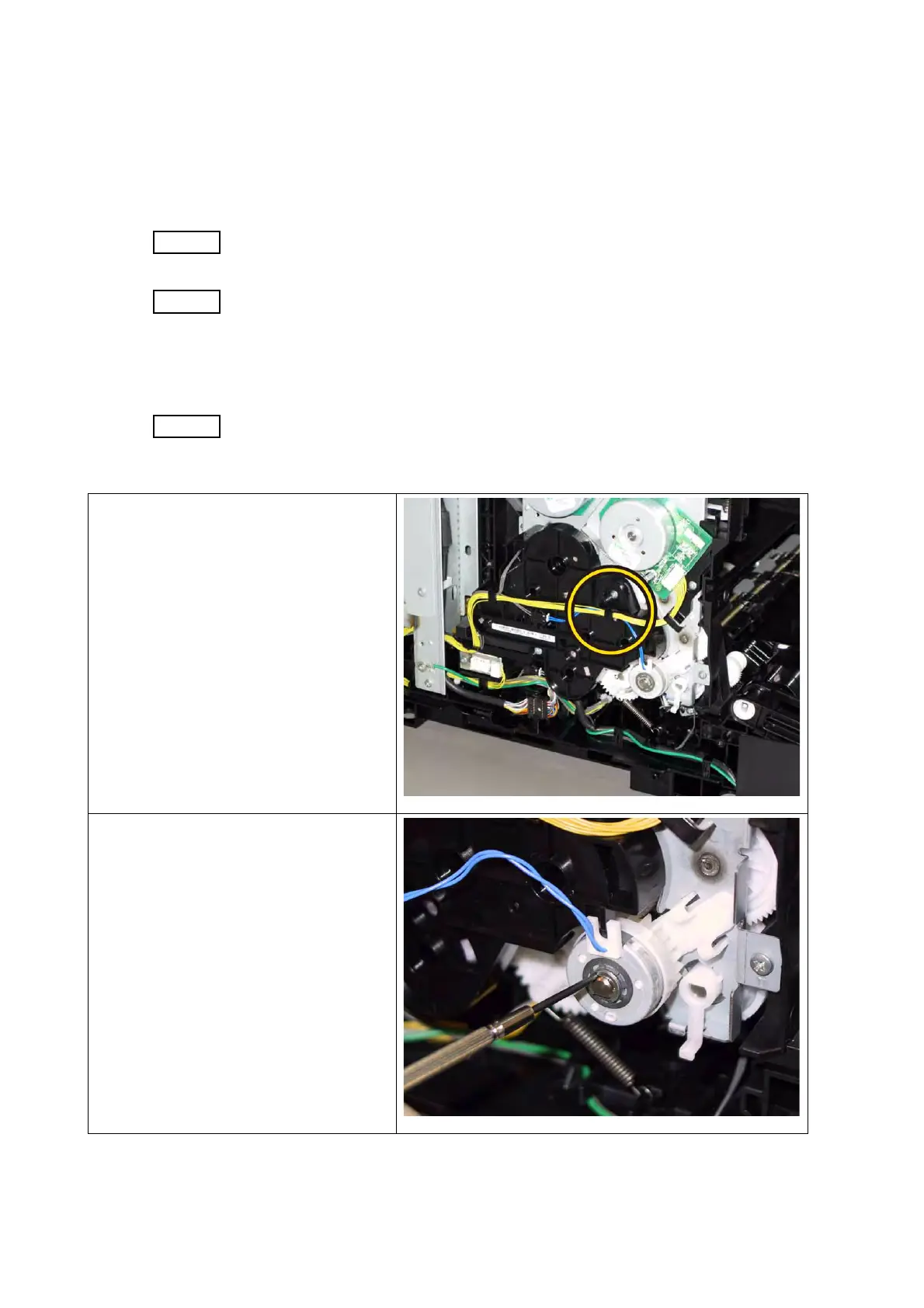

7) Release the harness of the CLUTCH
ASSY DRV (PL3.1.1) from the hook
of the DRIVE ASSY PH (PL7.1.4).
8) Remove the E-ring that fixes the
CLUTCH ASSY DRV to the shaft,
using a miniature screwdriver,
remove the CLUTCH ASSY DRV.
