Chapter 4 Disassembly / Assembly and Adjustments
4.1.2 Description rules for the procedures
[REP. X.Y "AAAAA"] at the top of the procedure means that the part name of an item which is
removed or replaced is "AAAAA".
“ (PL X.Y.Z)” attached at the end of parts name in the procedure shows that the parts corre-
sponds to the plate (PL) “X.Y”, item “Z” of [Chapter 5 Parts list], and their shape and fitting
position can be checked in [Chapter 5 parts list].

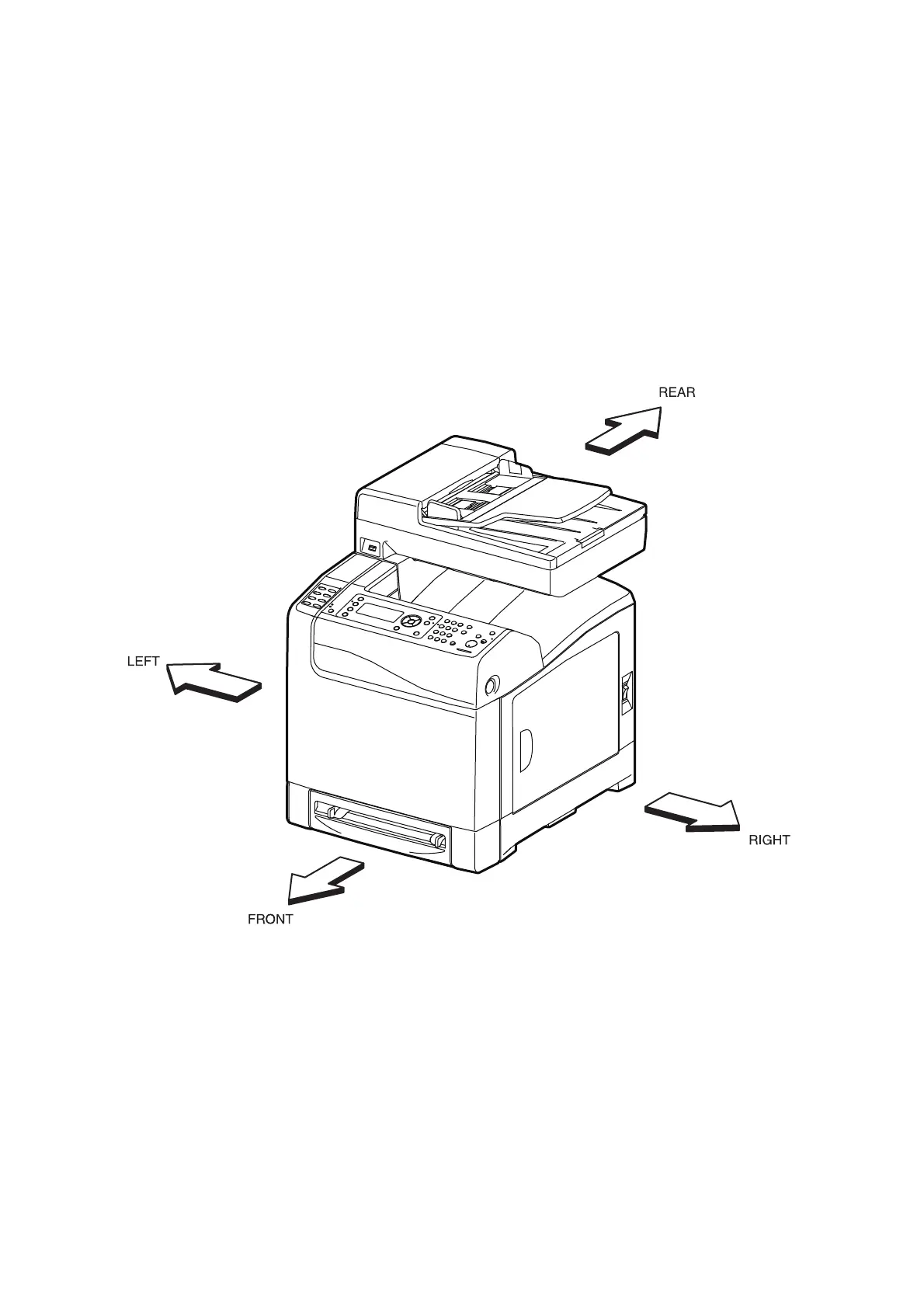

Description of direction shown below is used in the procedure.
- Front : Front direction when facing the front of device.
- Rear : Rear direction when facing the front of device.
- Left : Left direction when facing the front of device.
- Right : Right direction when facing the front of device.
“(REP X.Y) used in or at the end of sentences in the procedure shows that related work proce-
dure is described in [REP X.Y].
Screws in a diagram are supposed to be loosened and removed using a plus (+ screw driver),
unless otherwise specified.
Black arrow in a diagram shows the moving direction. Moreover, the order number attached
to the black arrows shows the order of movement.
Refer to Chapter 7 Connector [P (plug) / J (jack)] for the positions of connectors (P/J).
