5 – 42
Chapter 5 Parts List

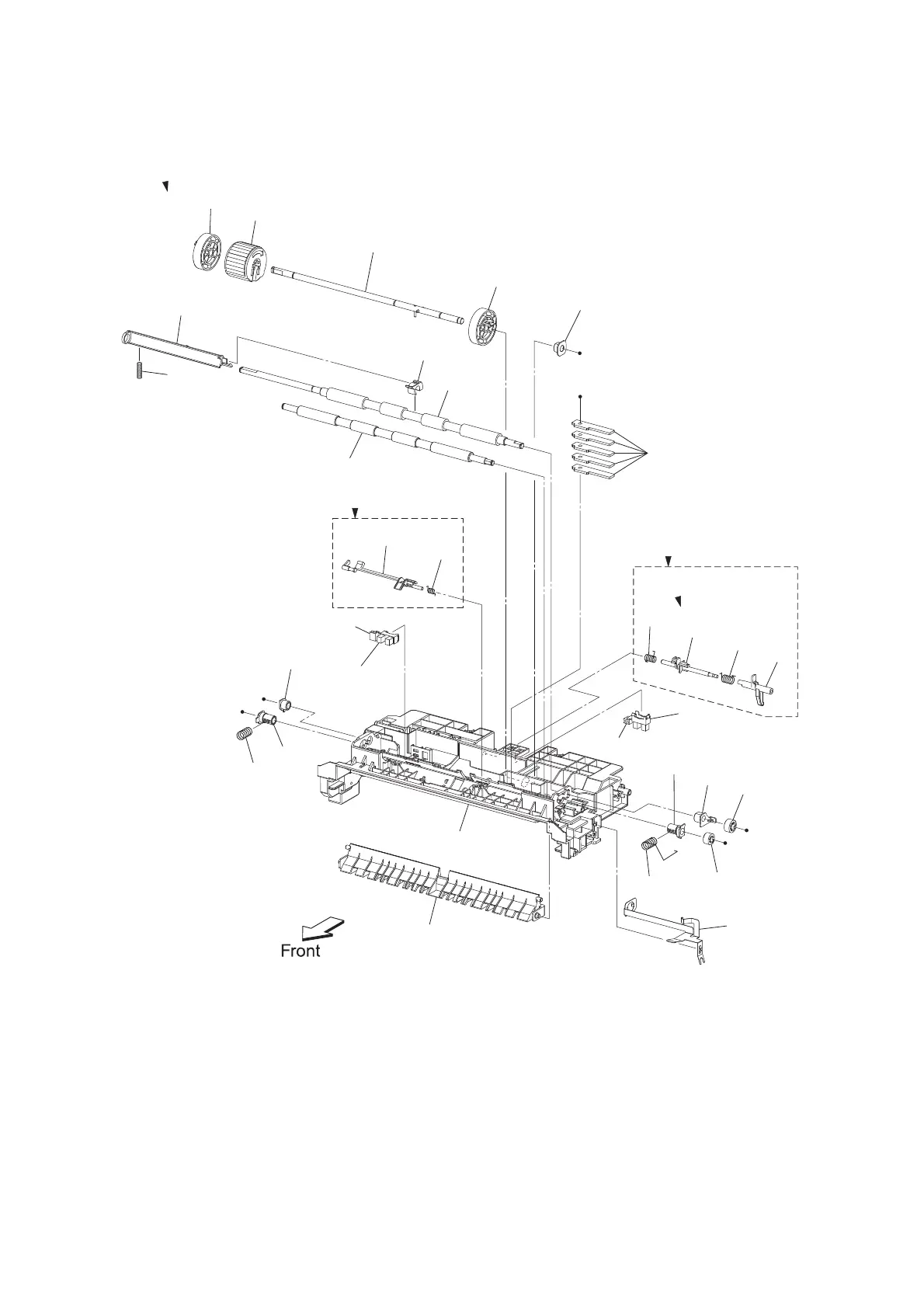

PL12.4 250 Feeder (Option) (4/5) [Illustration]
MiA05021IA
27
E2
ST2
E2
E1
E2
E2
3
2
4
3
5
1 (with 2-13,16,20-27,29-33)
6
7
8
9
10
33
13
31
13
21
22
23
24
26
25
20
29
30
(P4200)
(P4212)
CST2 NO PAPER
SENSOR
PAPER PATH
SENSOR
11
12
98 (with 11,12)
16
17
18
19
32 (with 17-19)
99 (with 16,32)
