4 - 62
Chapter 4 Disassembly / Assembly and Adjustments
REP2.6 KIT SIDE GUIDE (PL2.1.99)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Remove the PLATE ASSY BOTTOM. (REP2.2)

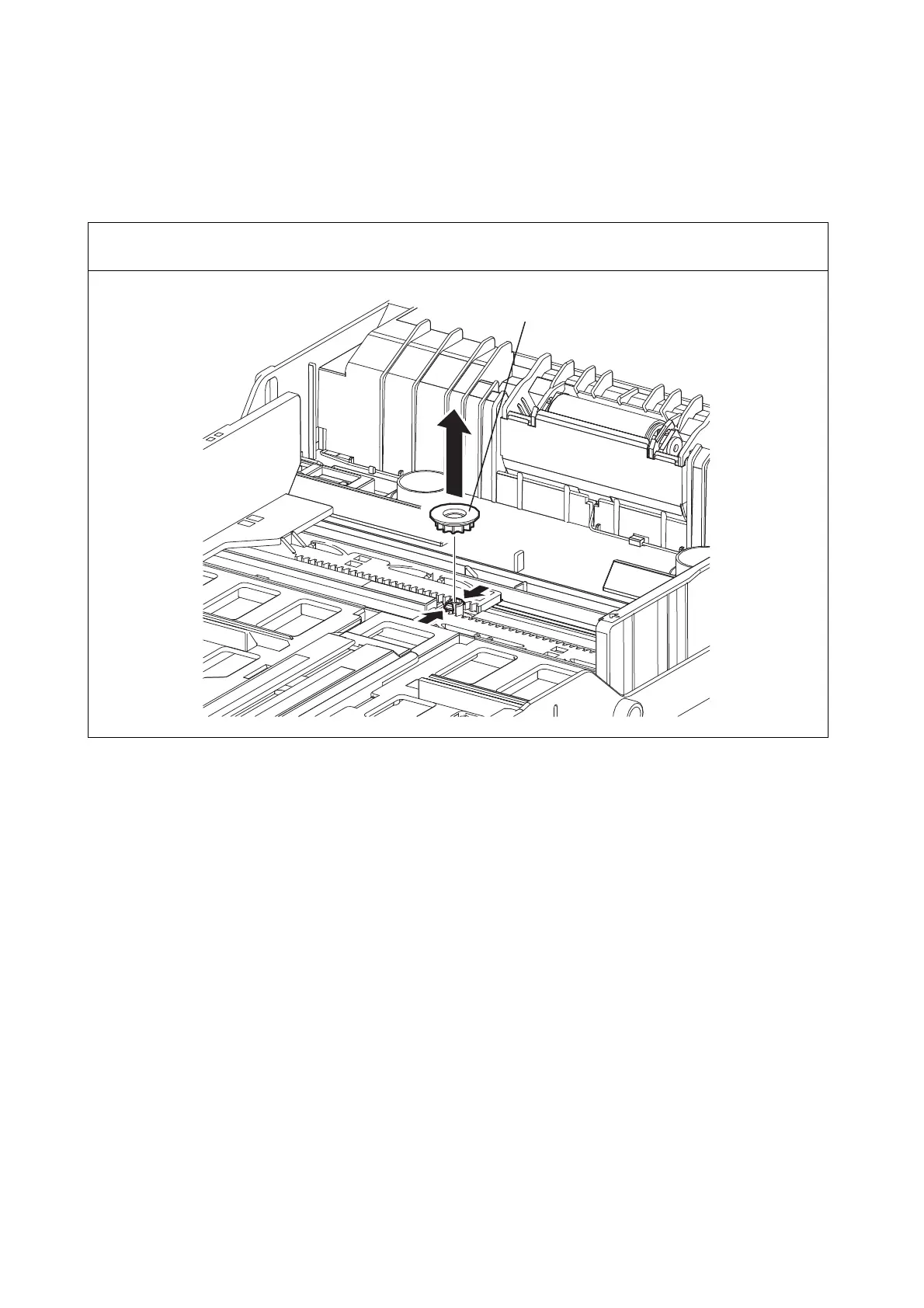

3) Release the hook that fixes the GEAR PINION (PL2.1.7), remove the GEAR PINION from the
CASSETTE ASSY 250 MG AIO (PL2.1.1).
GEAR PINION
