Chapter 4 Disassembly / Assembly and Adjustments
REP1.7 COVER SIDE L AIO (PL1.1.8), COVER ASSY ESS (PL1.1.9)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE L AIO. (REP1.9)

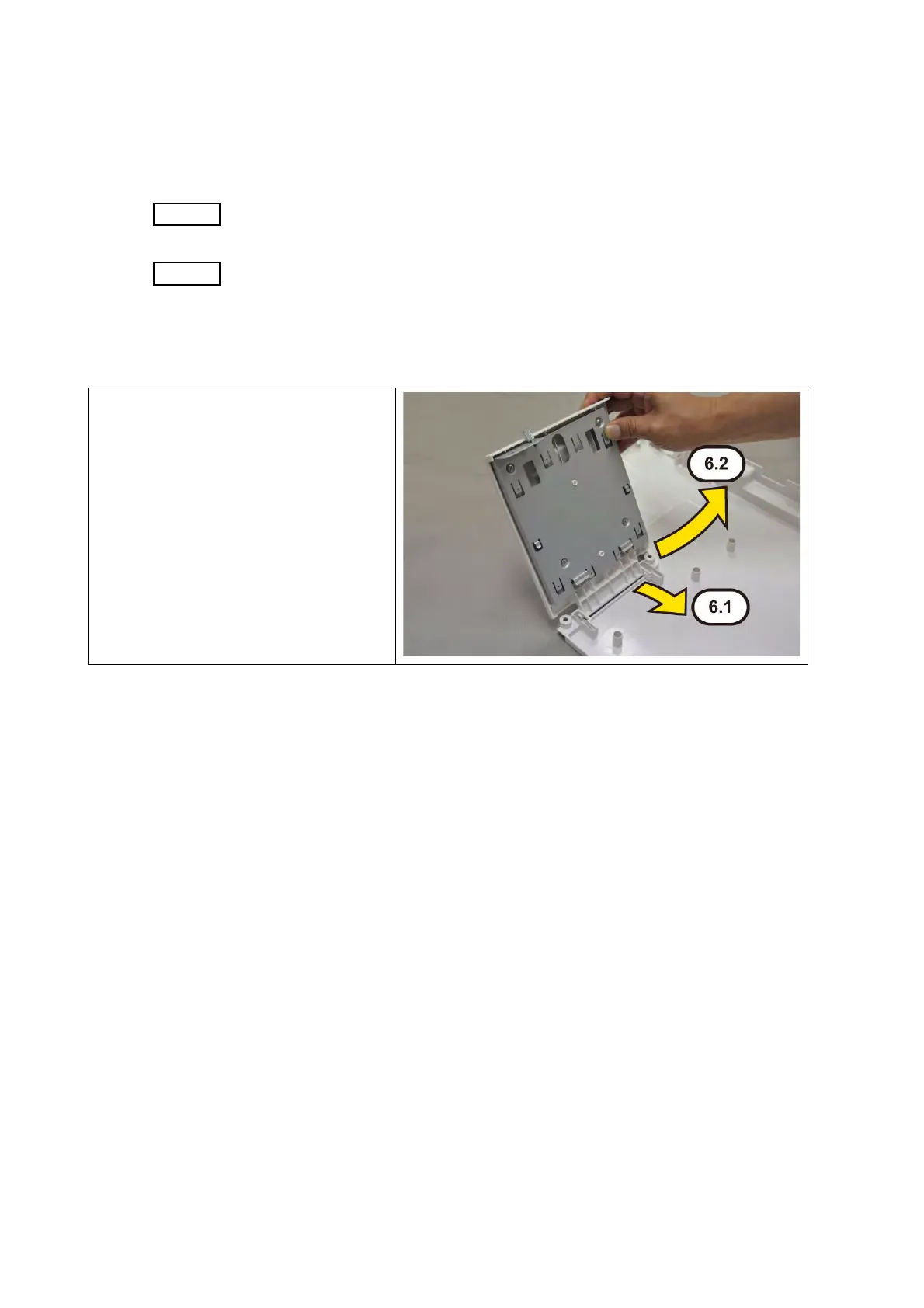

6) Release the boss of the COVER
ASSY ESS (PL1.1.9) from the hole of
the COVER SIDE L AIO (PL1.1.8),
remove the COVER ASSY ESS from
the COVER SIDE L AIO.
To Next Page
