4 - 268
Chapter 4 Disassembly / Assembly and Adjustments

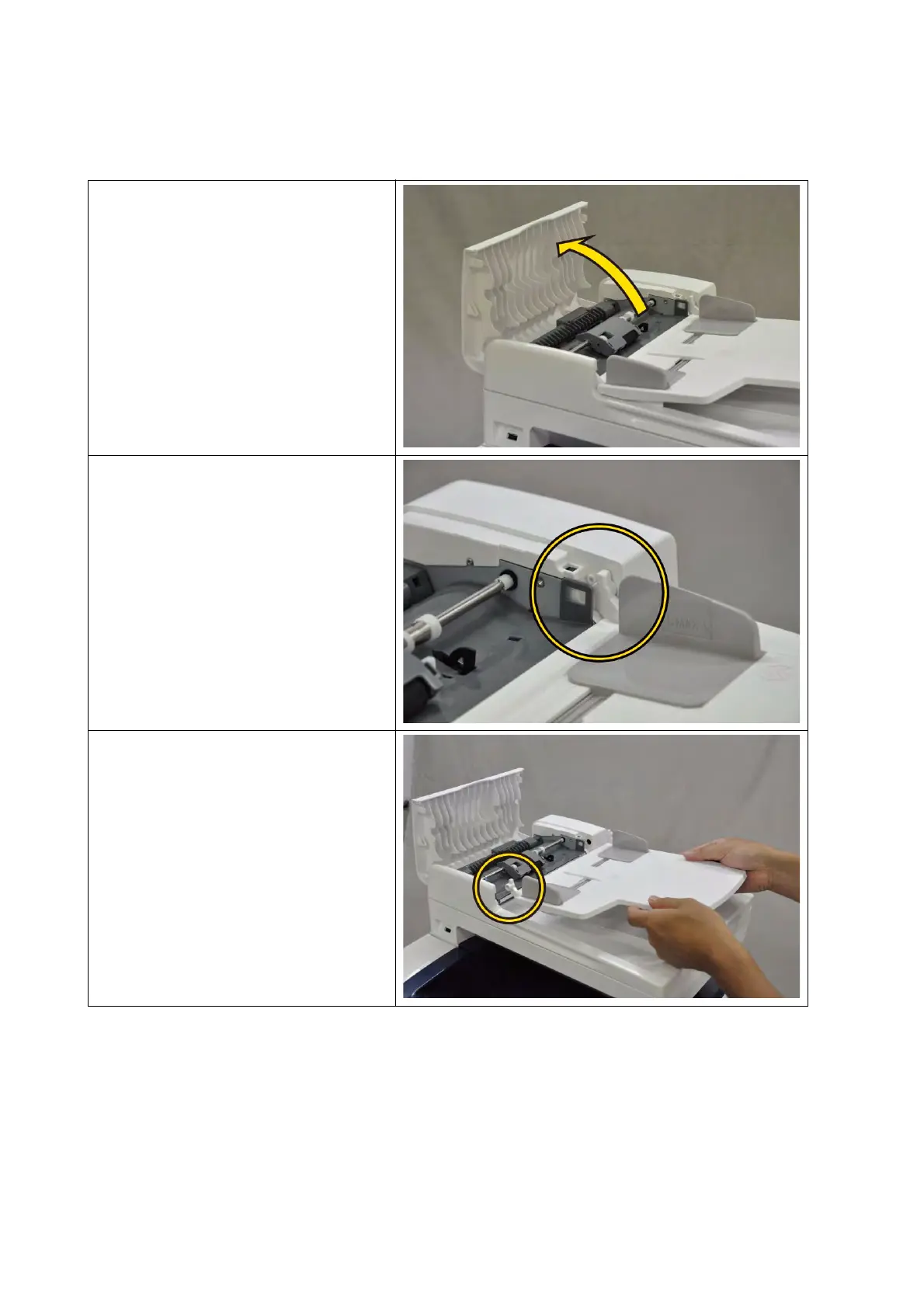

REP9.3 TRAY ASSY (PL10.1.8)
[Removal]
1) Open the COVER TOP ADF
(PL10.1.4).
2) Bend the rear side hinge of the
TRAY ASSY (PL10.1.8), release the
boss from the hole of the ADF ASSY.
3) Release the front side boss of the
TRAY ASSY from the hole of the
ADF ASSY, remove the TRAY
ASSY.
