4 - 288
Chapter 4 Disassembly / Assembly and Adjustments
REP10. DUPLEX
REP10.1 FEEDER ASSY DUP AIO STD (PL11.1.1) [Duplex Model Only]
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)

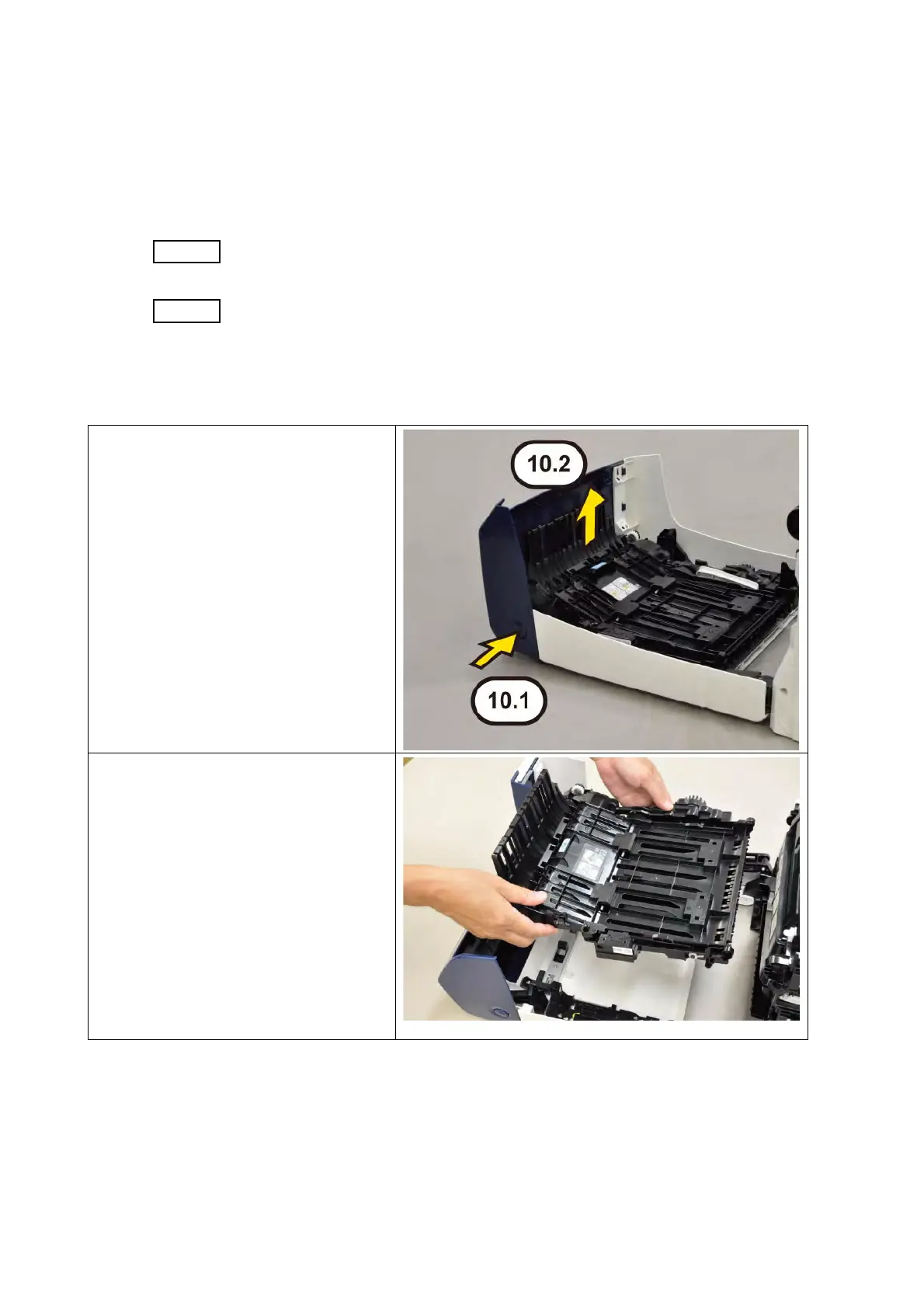

6) Press the LATCH BUTTON to
unlock the FEEDER ASSY DUP
AIO STD (PL11.1.1).
7) Lift up the FEEDER ASSY DUP
AIO STD from the printer.
To Next Page
