4 - 172
Chapter 4 Disassembly / Assembly and Adjustments
REP6. TRANSFER & FUSING UNIT
REP6.1 (SCC) FUSING UNIT (PL6.1.1)
[Removal]

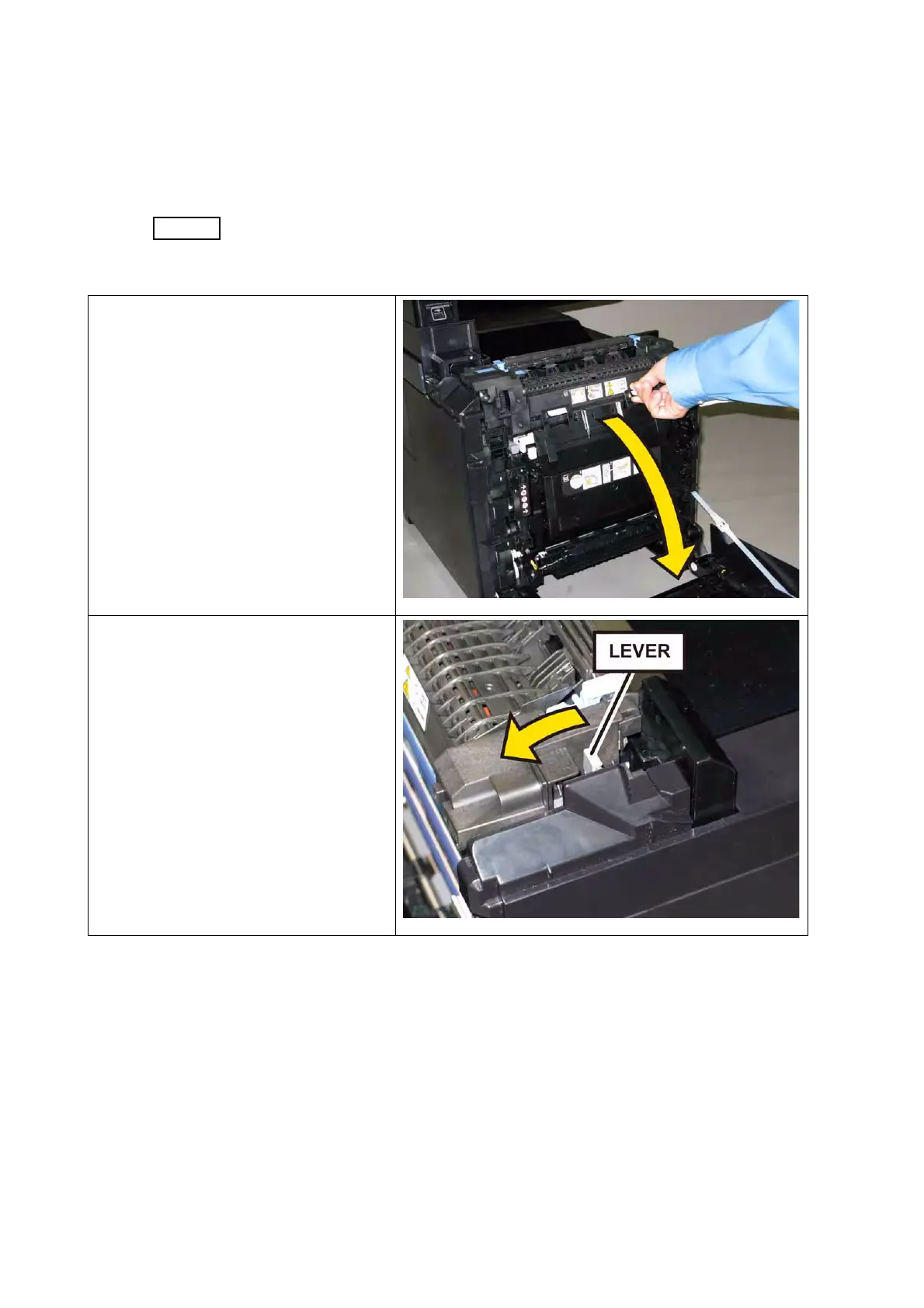

1) Open the COVER ASSY FRONT (PL1.2.1).
NOTE
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
2) Open the TRANSFER ASSY
(PL6.1.7).
3) Pull the LEVER to release the lock.
