Chapter 4 Disassembly / Assembly and Adjustments
REP1.4 (SCC) COVER TOP AIO (PL1.1.4)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
NOTE
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
NOTE
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)
6) Remove the COVER ASSY SIDE L AIO. (REP1.9)
7) Remove the COVER POLE OUT AIO. (REP1.1)
8) Remove the SHIELD ASSY ESS AIO. (REP8.5)
9) Remove the COVER POLE IN AIO. (REP1.3)
10) Remove the COVER REAR AIO. (REP1.5)

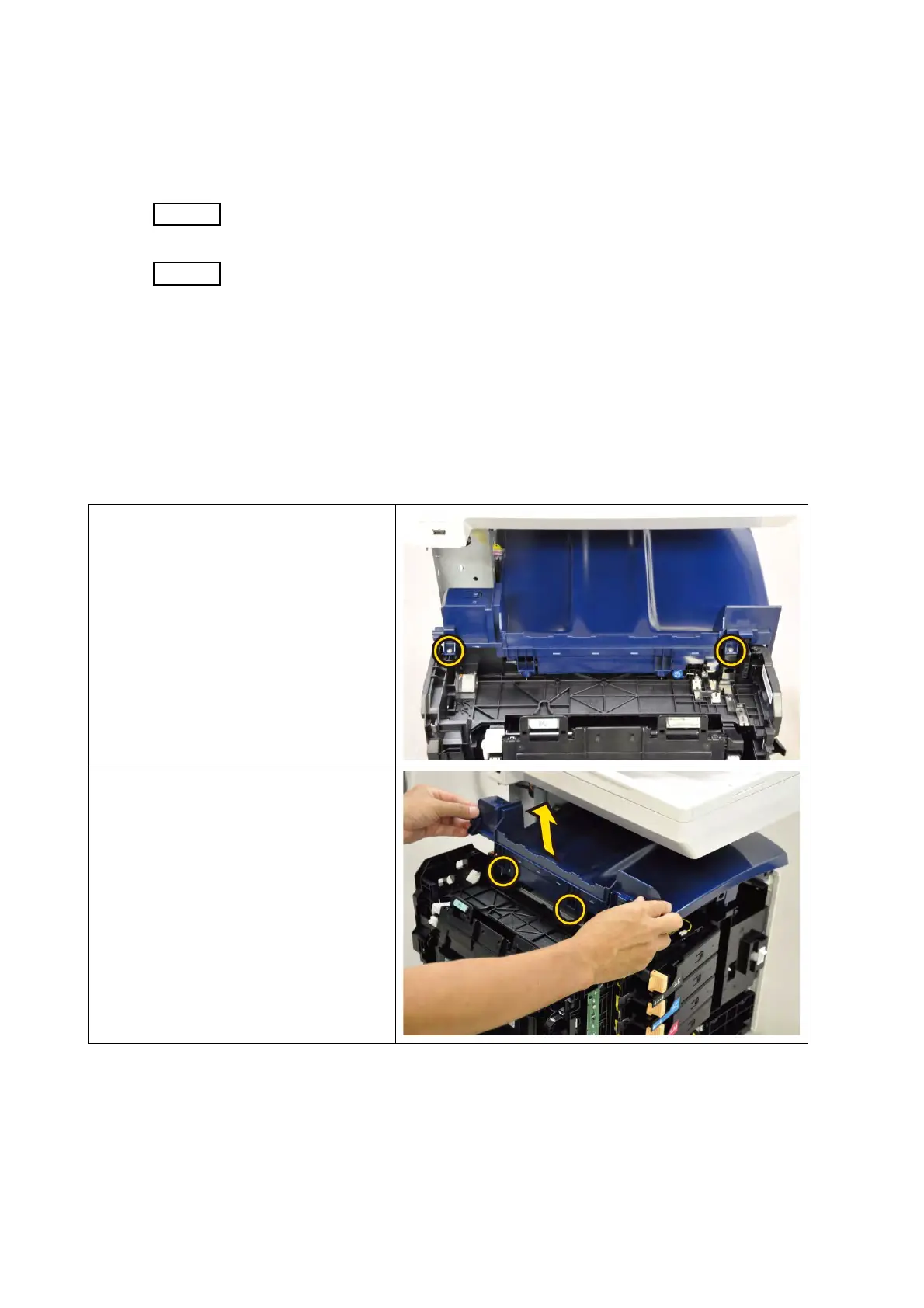

11) Remove the two screws (silver, tap,
8mm) that fix the COVER TOP AIO
(PL1.1.4) to the printer.
12) Lift up the front side of the COVER
TOP AIO to release the COVER
TOP AIO from the two pegs on the
printer.
