4 - 232
Chapter 4 Disassembly / Assembly and Adjustments
REP8.8 (SCC) DUCT FAN ASSY AIO (PL8.2.7)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)
6) Remove the COVER ASSY SIDE L AIO. (REP1.9)
7) Remove the COVER REAR AIO. (REP1.5)

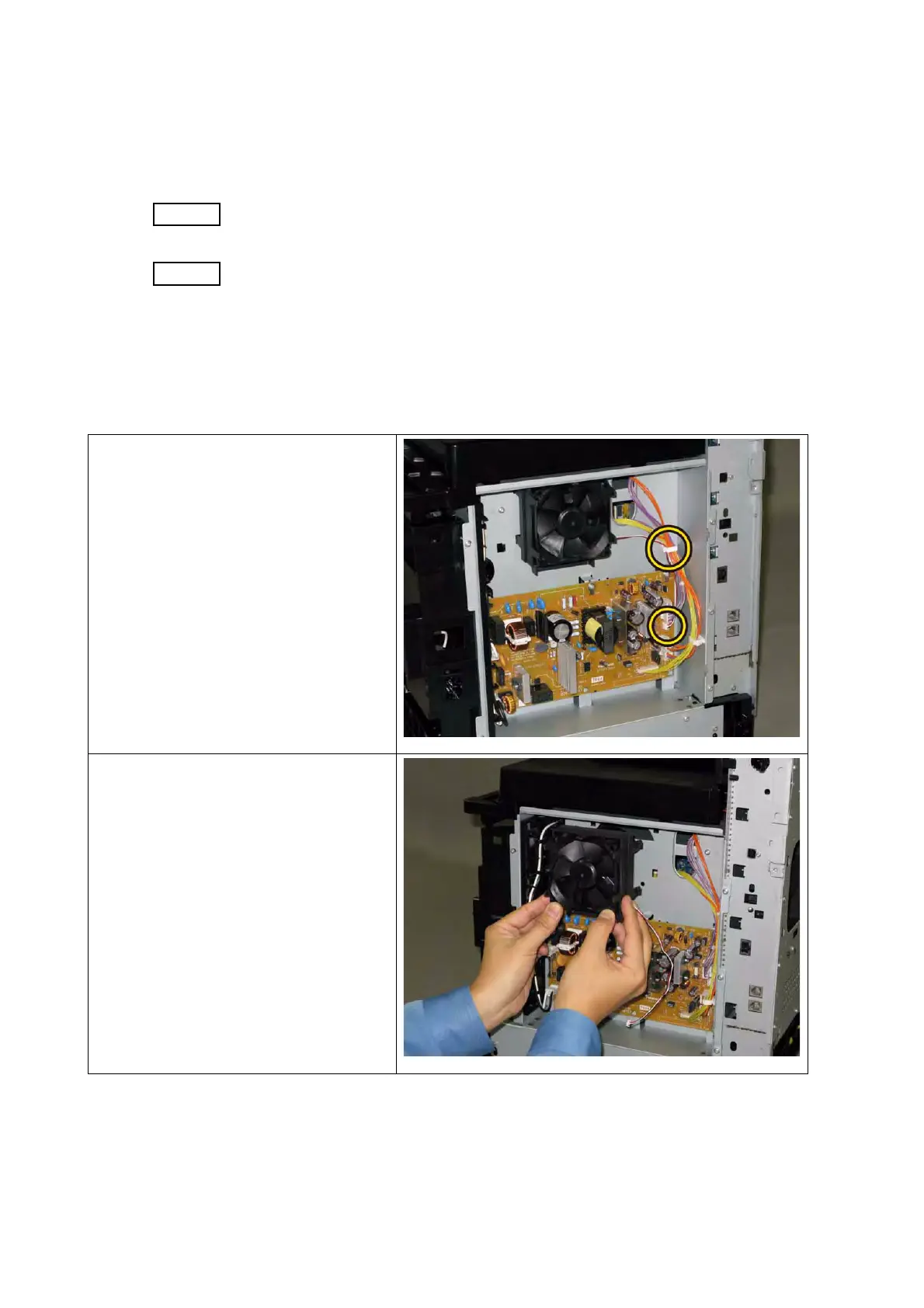

8) Disengage the DUCT FAN ASSY
AIO (PL8.2.7) connector (P/J503) on
the PWBA LVPS (PL8.2.12), release
the harness of the DUCT FAN ASSY
AIO from the clamp.
9) Release the four hooks of the DUCT
FAN ASSY AIO, remove the DUCT
FAN ASSY AIO from the printer.
To Next Page
