Fuji Xerox DocuPrint CM305 df - Rep11. 250 Option Feeder; Rep11.1 Feeder Assy Opt Mg Aio (Pl12.1.3)

4 - 302
Chapter 4 Disassembly / Assembly and Adjustments
REP11. 250 OPTION FEEDER
REP11.1 FEEDER ASSY OPT MG AIO (PL12.1.3)
[Removal]
NOTE
The printer must be lifted by two people.
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Remove the CASSETTE ASSY 250 OPT MG AIO.

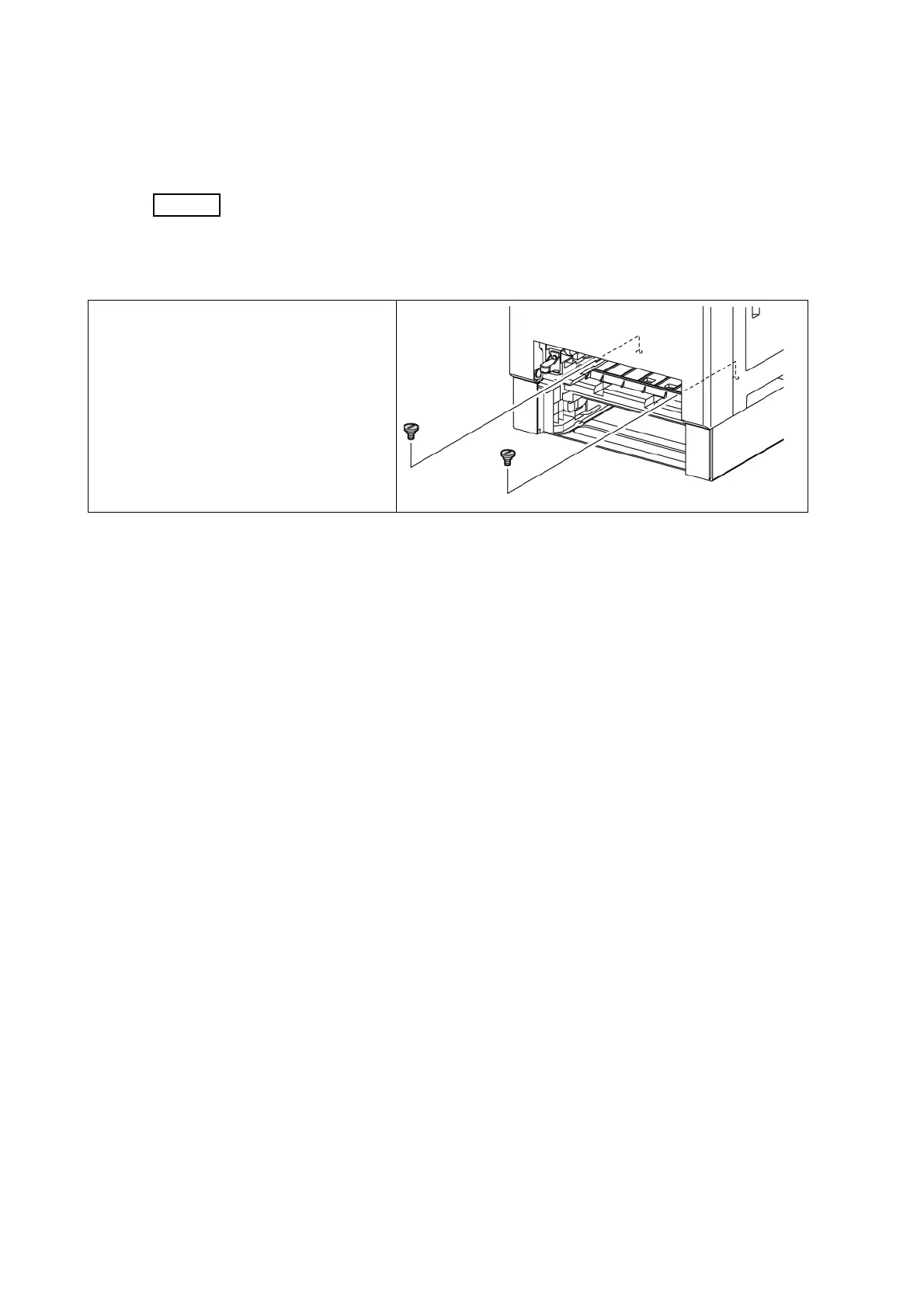

3) Remove the two SCREW JOINTs
(PL12.1.2) that fix the FEEDER
ASSY OPT MG AIO (PL12.1.3) to
the printer.
