Chapter 4 Disassembly / Assembly and Adjustments
REP1.11 CONSOLE ASSY PANEL AIO (PL1.2.3)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)
6) Remove the FEEDER ASSY DUP AIO STD. (REP10.1) [Duplex model only]

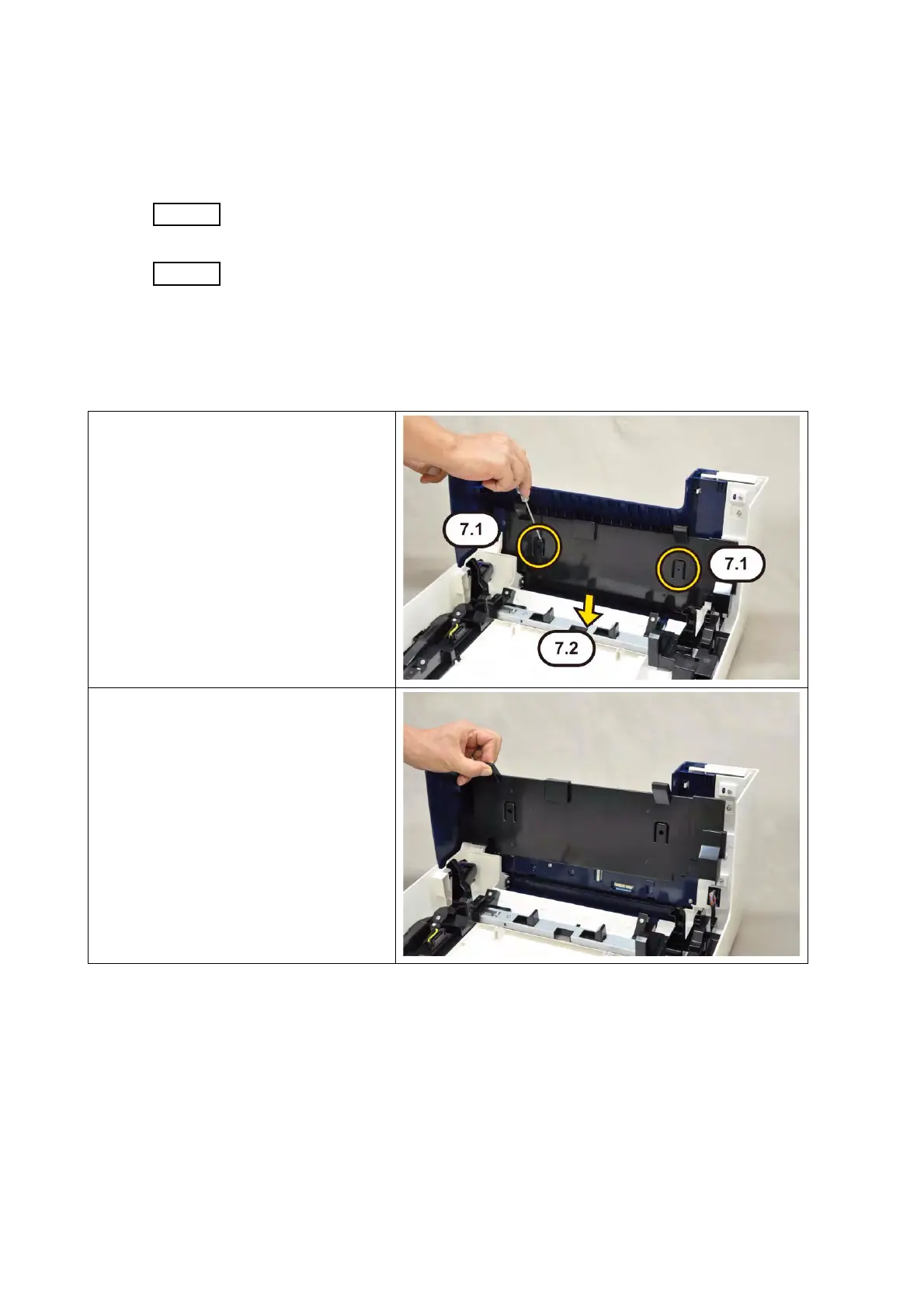

7) Release the two holes of the COVER
INNER FRONT AIO (PL1.2.4) from
the two bosses of the CONSOLE
ASSY PANEL AIO (PL1.2.3) using a
miniature screwdriver, shift the
COVER INNER FRONT AIO to
lower side. Release the five hooks of
the COVER INNER FRONT AIO.
8) Remove the COVER INNER
FRONT AIO from the COVER ASSY
FRONT.
