4 - 10
Chapter 4 Disassembly / Assembly and Adjustments
REP1.2 (SCC) COVER SCANNER LOW AIO (PL1.1.2)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE L AIO. (REP1.9)
6) Remove the COVER POLE OUT AIO. (REP1.1)
7) Remove the SHIELD ASSY ESS AIO. (REP8.5)
8) Remove the COVER POLE IN AIO. (REP1.3)

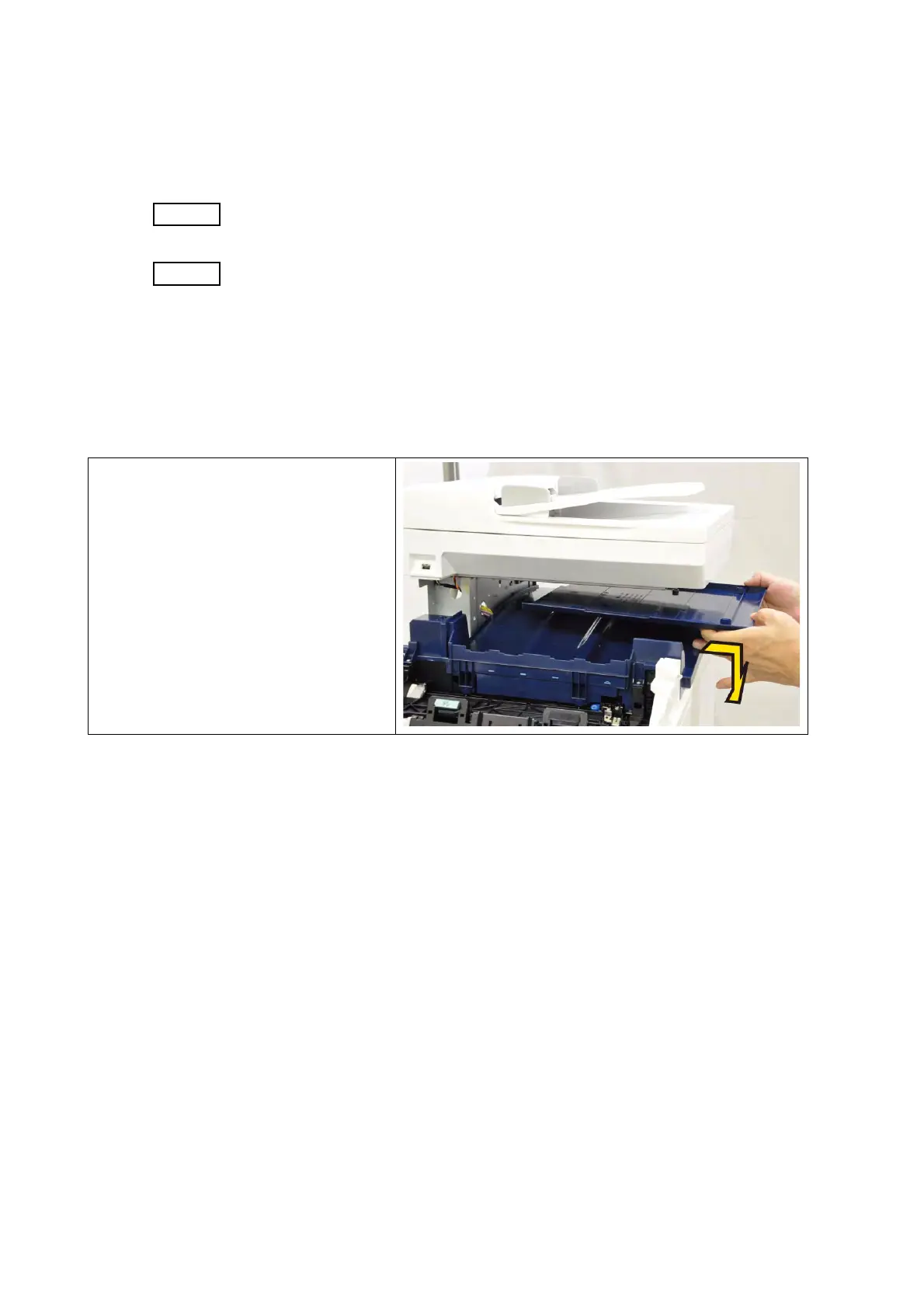

9) Shift the COVER SCANNER LOW
AIO to right side, release the four
hooks of the COVER SCANNER
LOW AIO. Remove the COVER
SCANNER LOW AIO from the
printer.
To Next Page
