4 - 242
Chapter 4 Disassembly / Assembly and Adjustments
REP8.11 (SCC) SWITCH ASSY INLET MG AIO (PL8.3.7)
[Removal]
1) Remove the CASSETTE ASSY 250 MG AIO. (REP2.1)
2) Open the COVER ASSY FRONT (PL1.2.1).
Cover the drum of the PHD ASSY to avoid exposure to light.
3) Remove the PHD ASSY. (REP4.6)
The FUSING UNIT part is very hot. Take added care not to get burned when
performing the service operation.
4) Remove the FUSING UNIT. (REP6.1)
5) Remove the COVER ASSY SIDE R AIO. (REP1.8)
6) Remove the COVER ASSY SIDE L AIO. (REP1.9)
7) Remove the COVER POLE OUT AIO. (REP1.1)
8) Remove the SHIELD ASSY ESS AIO. (REP8.5)
9) Remove the COVER POLE IN AIO. (REP1.3)
10) Remove the COVER REAR AIO. (REP1.5)
11) Remove the COVER TOP AIO. (REP1.4)
12) Remove the CHASSIS ASSY LVPS. (REP8.12)

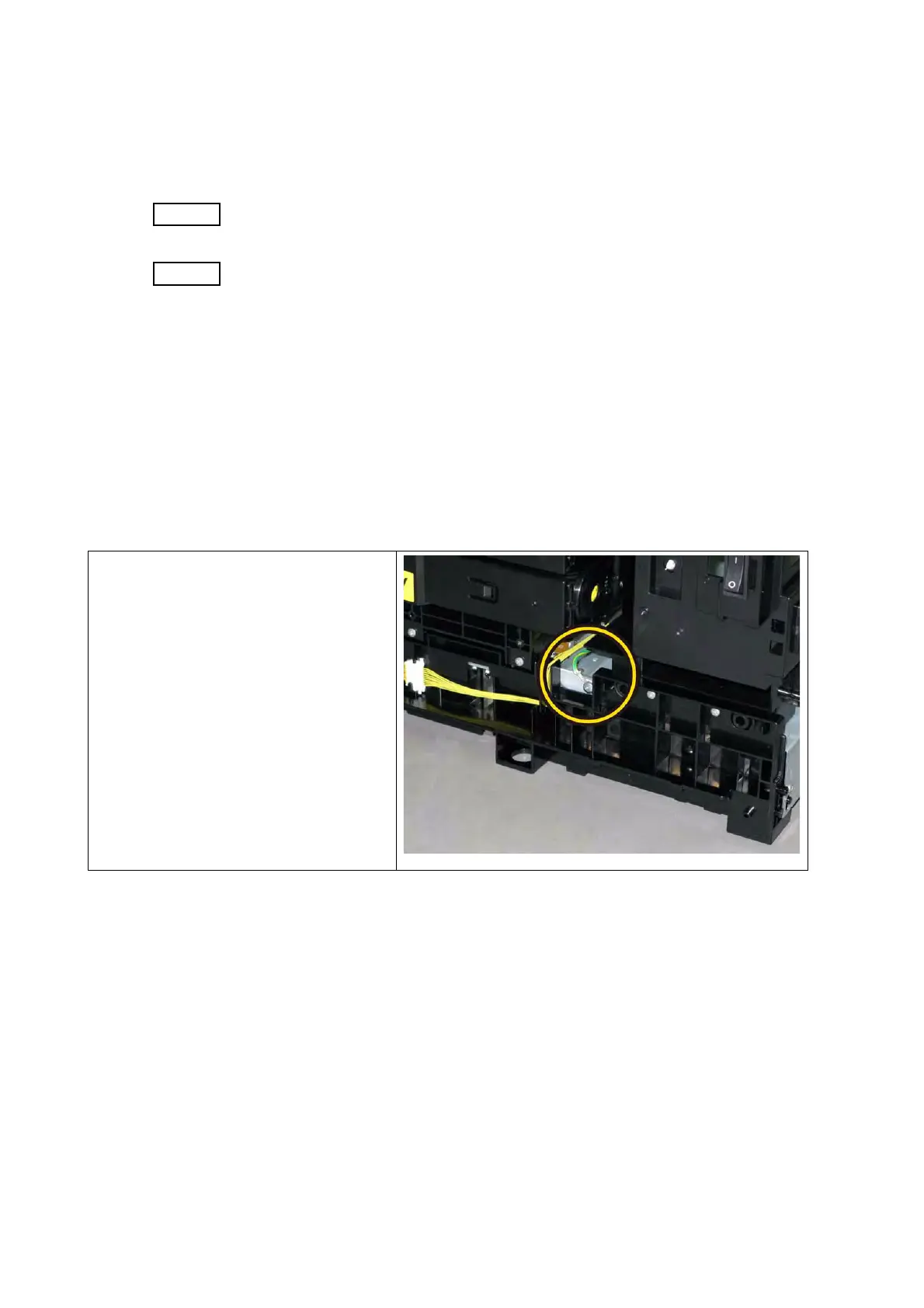

13) Remove the one screw (silver, with
washer, 6mm) that fixes the ground-
ing terminal of the SWITCH ASSY
INLET MG AIO (PL8.3.7).
To Next Page
